Adixen Alcatel ADS 602 P - REBUILT
Call for Price
In stock
SKU
REBUILT_ADS602P
| Weight | 900 lbs |
|---|---|
| Motor Power | 4.02 hp |
| Pumping Speed | 341 cfm |
| Ultimate Pressure | 5 x 10-4 mbar |
Adixen Alcatel ADS 602 P Dry Pump Vacuum System - REBUILT

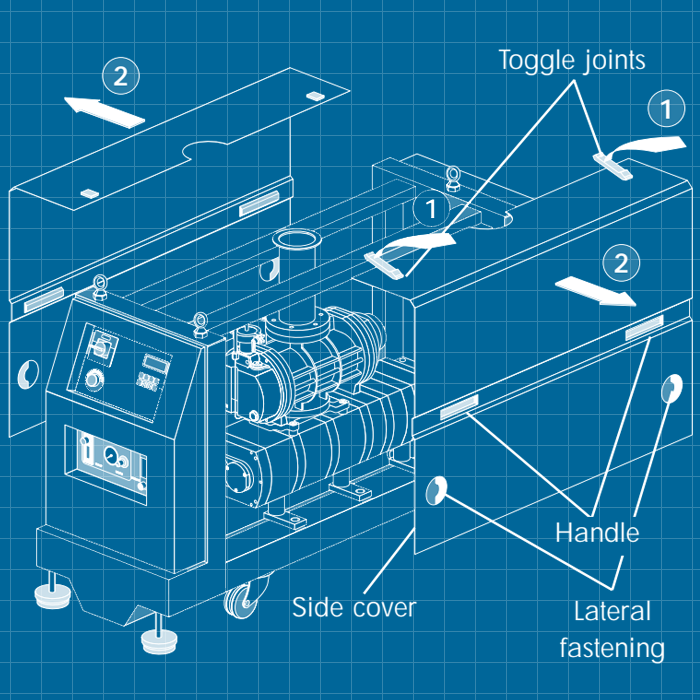

Adixen Alcatel ADS packages are highly reliable and designed for easy maintenance. It has a universal motor to cover the widest possible voltage and frequency range from a single variant. PTB Sales can provide repair service for your ADS package.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal flow-rate | |||
| 50 Hz (w/o Conv.): | 480 m3/h | 8,000 l/mn | 282 cfm |
| 50 Hz (w/ Conv.): | 560 m3/h | 8,000 l/mn | 329 cfm |
| 60 Hz (w/o Conv.): | 560 m3/h | 9,333 l/mn | 329 cfm |
| 60 Hz(w/ Conv.): | 580 m3/h | 9,667 l/mn | 341 cfm |
| Ultim. pressure at 50 Hz | 8 x 10-4 mbar | 6 x 10-4 torr | |
| Ultim. pressure at 60 Hz | 5 x 10-4 mbar | 3.7 x 10-4 torr | |
| Nominal power | 3 kW | ||
| Supply voltage 3 Ph | 200 / 480 V | ||
| Consumption at ult. pressure | 50 Hz: 1.8 kW | 60 Hz: 2.0 kW | |
| Max. continuous inlet pressure | 10 mbar | ||
| N2 purge flow rate | 0 to 50 sl/mn | ||
| Cooling water | 60 l/h | ||
| Rotation speed | 3,000 to 3,600 rpm | ||
| Pump running ambient temp. | 5 to 40°C | ||
| Inlet/Exhaust port | DN 100 ISO-K / DN 40 ISO-KF | ||

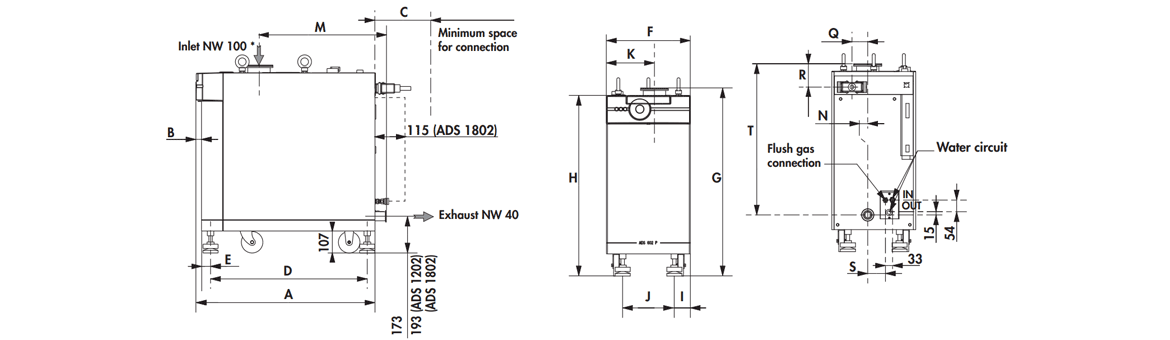

| Dimensions | 32.7 x 15.4 x 34.4 inches | ||
| Weight | 400 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Adixen Pfeiffer ADP / ADS Series Two - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

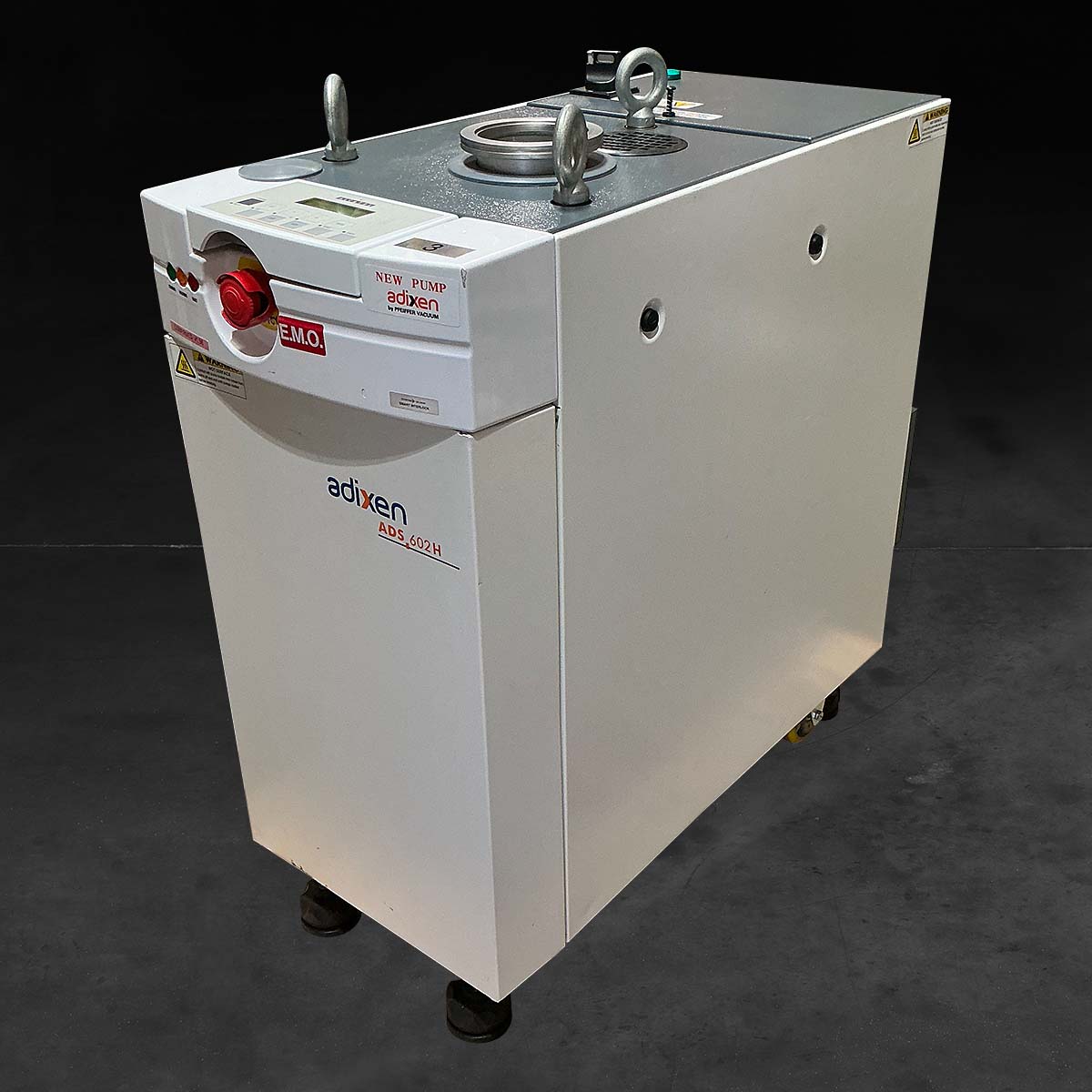

Adixen Alcatel ADS 602 P Dry Pump Vacuum System - REBUILT 602LM (Light to Medium Duty) 602P (Process Duty) 602H (Harsh Duty)
