Agilent TPS-flexy - NEW
Starting at
$7,869
In stock
Only %1 left
SKU
NEW_TPS-flexy
| Weight | 200 lbs |
|---|---|
| Pumping Speed | 45 l/s |
| Ultimate Pressure | < 2 x 10-7 mbar |

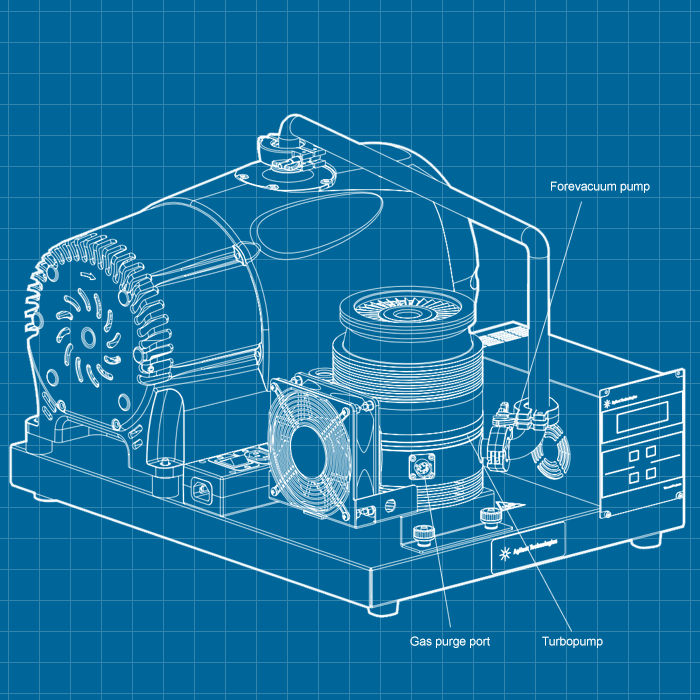

Agilent TPS-flexy Turbo Vacuum Pumping System - NEW
The Agilent TPS-flexy turbo pumping system is a flexible, customizable high-vacuum system. Choose from three dry backing pumps—IDP-7 scroll pump, IDP-3 scroll pump, or MD-1 diaphragm pump—and two turbo pump options, Twis Torr 74 FS or 305 FS. With 40+ options to choose from, you can find the right combination for your application.
The TPS-flexy package allows you to select components and configure the system yourself to meet a wide array of challenging applications. Quickly detach the turbo pump from the platform for direct mounting on your system for maximum pumping speed.
- Flexibility: Turbo pump can be easily detached from the system to be mounted in any orientation on the vacuum chamber, in minutes
- Customization: Build your ideal system, choosing from 50+ configurations based on your specific requirements
- Gauge reading function available to provide the real-time pressure reading on turbo pump controller LCD display
- Ready for Vacuum Link app to give full pump control through your mobile phone
- Serviceability: Easy and fast field replacement of single components provided with Agilent Advanced Exchange Service
- Fast delivery: Based on standard components to allow quick configuration, receiving, and assembly
- Multiple turbo pump sizes to meet your application needs
- Three voltage options (100, 120, and 240 V) for worldwide operation
- Analog I/O provides accurate control of the system and pressure-driven setpoint
- Serial RS232 communication protocol with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| KF 40 | ISO 63 | CFF 4.5 in. | |||
| Pumping Speed (l/s) (with inlet screen) | N2 | 33 | 45 | ||
| He | 25 | 41 | |||
| H2 | 20 | 27 | |||
| Base pressure* | 2 x 10-7 mbar | 5 x 10-8 mbar | |||
| Bakeout temperature | 80°C at inlet | 120°C at inlet | |||
| Pumpdown time (1 liter volume) | 60 sec. to 17 mbar; 114 sec. to 1 x 10-4 mbar; 140 sec. to 5 x 10-5 mbar | ||||
| Turbo pump rotational speed | 70,000 RPM | ||||
| Start-up time | 122 sec. | ||||
| Operating ambient temperature | 5°C to 35°C / 32°F to 122°F | ||||
| Input Voltage and Frequency | 90V to 240V AC; 50 Hz / 60 Hz | ||||
| Serial communications | RS-232 cable, 9-pin D-type male, 9-pin D-type female, T-Plus Navigator Software | ||||
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent TPS-flexy Turbo Vacuum Pumping System - NEW X169964028 / X1699-64028 TwisTorr 84 FS ISO-63 MD-1 120-240V onboard controller X169964029 / X1699-64029 TwisTorr 84 FS KF-40 MD-1 120-240V onboard controller X169964031 / X1699-64031 TwisTorr 84 FS 4.5" CFF MD-1 120-240V onboard controller X169964044 / X1699-64044 TwisTorr 84 FS ISO-63 MD-1 120-240V rack controller X169964030 / X1699-64030 TwisTorr 84 FS KF-40 MD-1 120-240V rack controller X169964045 / X1699-64045 TwisTorr 84 FS 4.5" CFF MD-1 120-240V rack controller X169964020 / X1699-64020 TwisTorr 84 FS ISO-63 IDP-3 240V onboard controller X169964021 / X1699-64021 TwisTorr 84 FS KF-40 IDP-3 240V onboard controller X169964023 / X1699-64023 TwisTorr 84 FS 4.5" CFF IDP-3 240V onboard controller X169964024 / X1699-64024 TwisTorr 84 FS ISO-63 IDP-3 120V onboard controller X169964025 / X1699-64025 TwisTorr 84 FS KF-40 IDP-3 120V onboard controller X169964027 / X1699-64027 TwisTorr 84 FS 4.5" CFF IDP-3 120V onboard controller X169964040 / X1699-64040 TwisTorr 84 FS ISO-63 IDP-3 240V rack controller X169964022 / X1699-64022 TwisTorr 84 FS KF-40 IDP-3 240V rack controller X169964041 / X1699-64041 TwisTorr 84 FS 4.5" CFF IDP-3 240V rack controller X169964042 / X1699-64042 TwisTorr 84 FS ISO-63 IDP-3 120V rack controller X169964026 / X1699-64026 TwisTorr 84 FS KF-40 IDP-3 120V rack controller X169964043 / X1699-64043 TwisTorr 84 FS 4.5" CFF IDP-3 120V rack controller X169964064 / X1699-64064 TwisTorr 84 FS KF-40 SH-110 X169964048 / X1699-64048 TwisTorr 84 FS 4.5" CFF SH-110 rack controller X169964035 / X1699-64035 TwisTorr 304 FS ISO-100 IDP-3 240V onboard controller X169964037 / X1699-64037 TwisTorr 304 FS 6" CFF IDP-3 240V onboard controller X169964036 / X1699-64036 TwisTorr 304 FS ISO-100 IDP-3 240V rack controller X169964047 / X1699-64047 TwisTorr 304 FS 6" CFF IDP-3 240V rack controller X169964046 / X1699-64046 TwisTorr 304 FS 6" CFF SH-110 120-240V rack controller X169964034 / X1699-64034 TwisTorr 304 FS 6" CFF SH-110 120-240V onboard controller X169964033 / X1699-64033 TwisTorr 304 FS ISO-100 SH-110 120-240V rack controller X169964032 / X1699-64032 TwisTorr 304 FS ISO-100 SH-110 120-240V onboard controller
