Agilent Varian TriScroll PTS300 - REBUILT

Name: Agilent Varian TriScroll PTS300 - REBUILT
Brand: Agilent Varian
SKU: REBUILT_PTS300

Be the first to review this product

Starting at $3,960

In stock

Only %1 left

SKU

REBUILT_PTS300

Request For Quote

Weight	58 lbs
Motor Power	0.75 hp
Pumping Speed	7.4 cfm
Ultimate Pressure	1 x 10^-2 torr

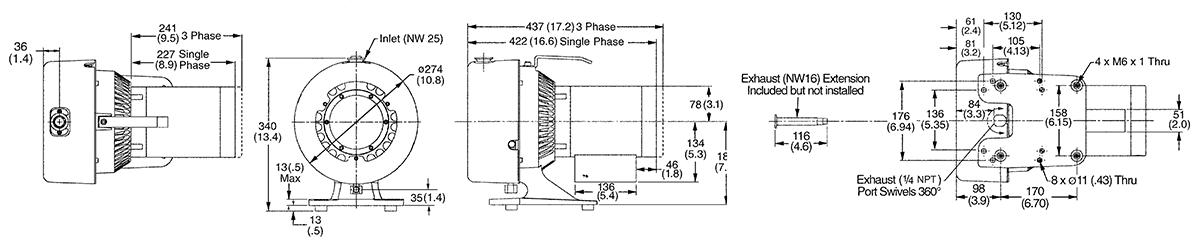

Dimensions

Description

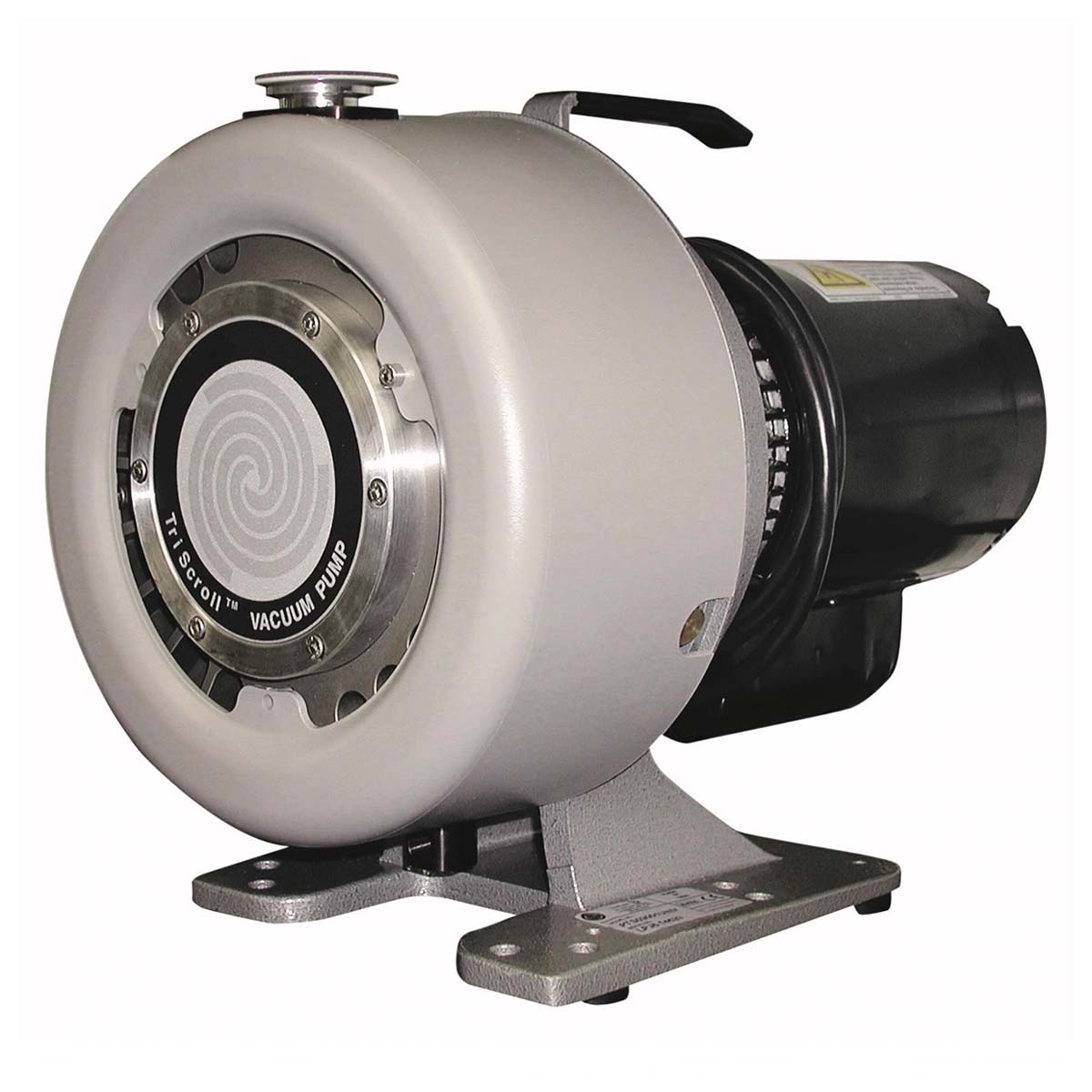

Agilent Varian TriScroll PTS300 Dry Scroll Vacuum Pump - REBUILT

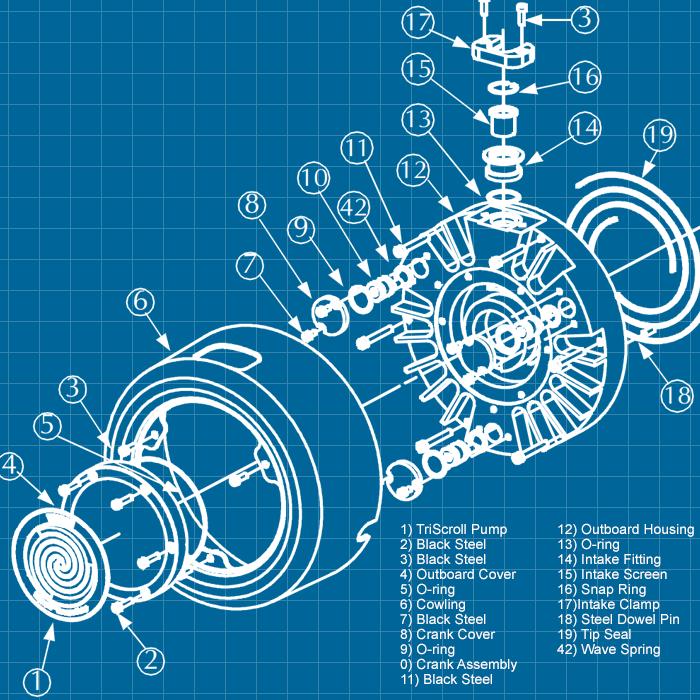

Rebuilt Agilent Varian TriScroll scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Peak pumping speed	50 Hz: 210 l/m, 12.6 m³/hr (7.4 cfm) 60 Hz: 250 l/m, 15 m³/hr (8.8 cfm)
Media	Clean air. No toxic, corrosive, explosive or particulate forming gases
Ultimate pressure (Torr)	1.0 x 10^-2 Torr (1.3 x 10^-2 mbar)
Maximum inlet pressure	1.0 atmosphere (0 psig)
Maximum outlet pressure	1.1 atmosphere (1.5 psig)
Inlet connection	NW25
Exhaust connection	Female 1/4" National Pipe Thread (NW16 adapter provided)
Gas ballast	Female 1/4" National Pipe Thread (40 Micron sintered filter provided)
Ambient operating temperature	5°C to 40°C (41°F to 104°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Motor rating	0.75 hp (0.56 kW)
Operating voltages	Single-phase: 50-60 Hz 100-115:200-230 VAC Three-phase: 50 Hz 200-230:380-415 VAC, 60 Hz 200-230:460 VAC
Motor thermal protection	Type U automatic
Operating speed	50 Hz: 1,425 rpm, 60 Hz: 1,725 rpm
Cooling system	Air-cooled
Noise level (per ISO 11201)	68 dB(A)
Vibration level at inlet (per ISO 10816-1)	6.3 mm/sec
Weight	58 lbs.

Specifications

Digital Manuals

Type	Label	Description	Download
	Varian TriScroll 300 Series - REBUILT	Installation and Operation Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian TriScroll PTS300 Dry Scroll Vacuum Pump - REBUILT

PTS03001INV1        1-phase 100-115 VAC, 200-240 VAC, 50/60Hz
PTS03001UNIV        1-phase 100-115 VAC, NEMA 5-15P US power cord
PTS03001UNIVEU      200-230 VAC, CEE 7/7 EU power cord
PTS03001UNIVUK      200-230 VAC, BS 1363 UK power cord
PTS03003UNIV        200-230 VAC, 3-phase motor
PTS03001UVPI        1-phase 100-115 VAC, NEMA 5-15P, vacuum isolation valve, US power cord

PTS03003380415VPI   3-phase, 380/415 V, vacuum isolation valve
PTS03003230VPI      3-phase, 230 V, vacuum isolation valve
PTS03003460VPI      3-phase, 460 V, vacuum isolation valve
PTS03001UVPIUK      220VAC, 1-phase, W/VPI, W/UK CORD
PTS03001UVPI        1-phase, 120 V, vacuum isolation valve, US power cord
PTS03003200VPI      3-phase, 200 V, vacuum isolation valve
PTS03001UVPIEU      1-phase, 220 V, vacuum isolation valve, EU power cord
