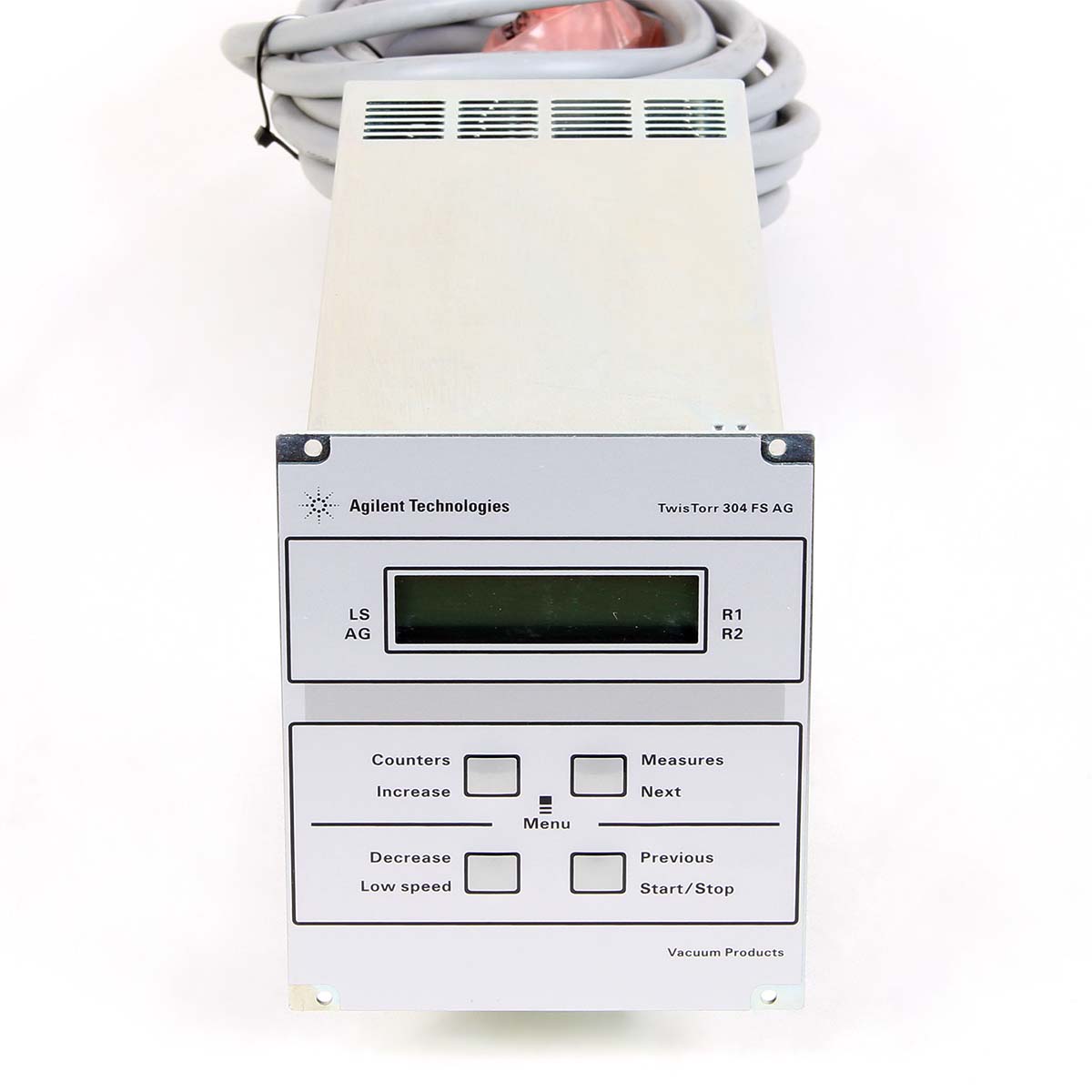

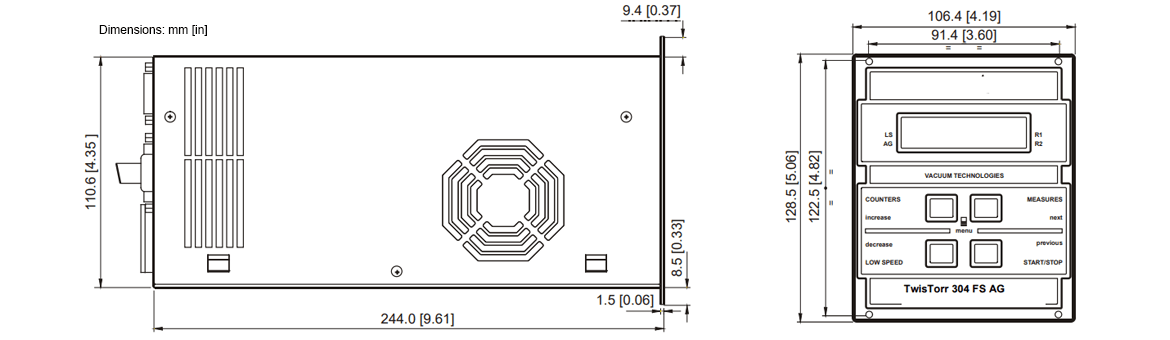

Agilent TwisTorr 304 FS-AG Turbomolecular Vacuum Pump Controller - NEW
The TwisTorr 304 FS-AG rack controller is a microprocessor controlled frequency converter with, enhanced features that allow greater control and communication capabilities. This compact, ¼ rack mount unit is designed for full worldwide compatibility, vent valve control, active gauge pressure reading, and pump operation parameters control. As well as including self-diagnostic and protection features.
Universal voltage – the controller is able to auto set according to the input voltage, providing flexibility for easy installation worldwide
RS-232/485 communication protocols and Profibus (options)
Allows the pump to interact the system controls
Enables the pump to be operated via PC with T-plus software
Helps development of own customer software
Stop Speed Reading (SSR)
Continues pump speed reading after the stop command
Allows observation of the pump in slow down ramp and shut down time
N.O. and N.C. Vent Valve Drive
Valve delay and opening time adjustable
Vent valve driven by controller automatically or by serial line
Opening time control through SSR function

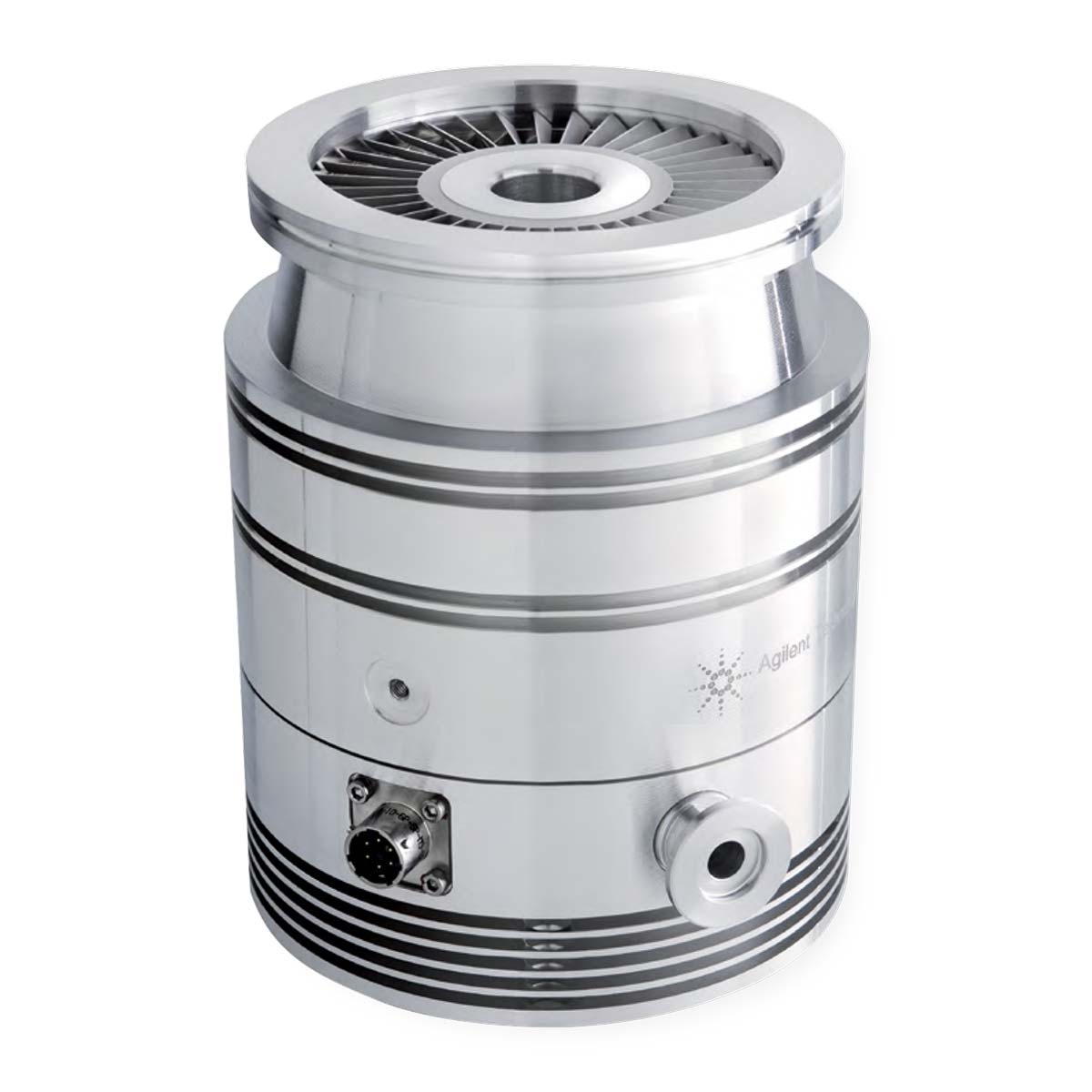

The TwisTorr 304 FS onboard controllers are microprocessor controlled frequency converters. They are fully controllable through PC software, with self-diagnostic and protection features that ensure the highest degree of reliability. TwisTorr 304 FS onboard controllers can be mounted onboard the pump, either on the bottom or on the side, offering outstanding flexibility and simplicity.
Drives the TwisTorr 304 FS pumps and the vent valve
Powers the pump cooling fan
Provides and acquires the pressure of the wide range gauge
Remote I/Os
Navigator default serial compatible with the previous RS 232 and 485 version
Able to operate with active gauges (full range gauge FRG-700 and FRG-702)
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Input: Voltage Frequency Max power Stand-by power Max oper. power
100, 240 Vac (voltage fluctuation +/- 10%) 50 to 60 Hz 450 VA - -
100 - 240 Vac 50 to 60 Hz 300 VA 10 W 150 W w/ water or air cooling
Fuse
2 x T4 A (slow blow) 250 V
4 A 8 A (24 Vdc)
Output: Voltage Frequency Power
75 Vac 1,010 Hz 150 W
60 Vac 1,350 Hz 55 W
Storage temperature
-20°C to + 70°C 0 - 95%
Operating temperature
+5°C to + 45°C 0 - 90%
Compliance with
Safety: EN 61010 - 1 (2001) Radio Interference: EN 55011 (Class-A) Harmonics: EN 61000-3-2 Flicker: EN 61000-3-3, EN 61000-6-2 (2005) ESD: EN 61000-4-2 Radiated RF Immunity: EN 61000-4-3 Burst: EN 61000-4-4 Surge: EN 61000-4-5 Conducted RF Immunity: EN 61000-4-6 Radiated Magnetic Field: EN 61000-4-8 DIPS: EN 61000-4-11
UNI EN 292-1 UNI EN 292-2 EN-CENELEC 55011 IEC 1000-4-2 (ex 801-2) IEC 1000-4-3 (ex 801-3) IEC 1000-4-4 (ex 801-4) EN 61010-1 (IEC 1010-1) EN 1012-2
Power cable
w/ European or NEMA plug 3 meters long (optional)
Serial communication
RS232 cable with a 9-pin D type male connector and a 9-pin D type female connector, and TwisTorr software (optional)
Weight
1.7 Kg (3.2 lbs)
1 Kg (2.2 lbs)
Internal use only
Max altitude
2,000 m
Pollution degree
2
Installation Category
II
Acoustic noise (ISO7779)
LpA < 70 dB(A), normal operation, operator position
