Agilent VS MR15 - REBUILT

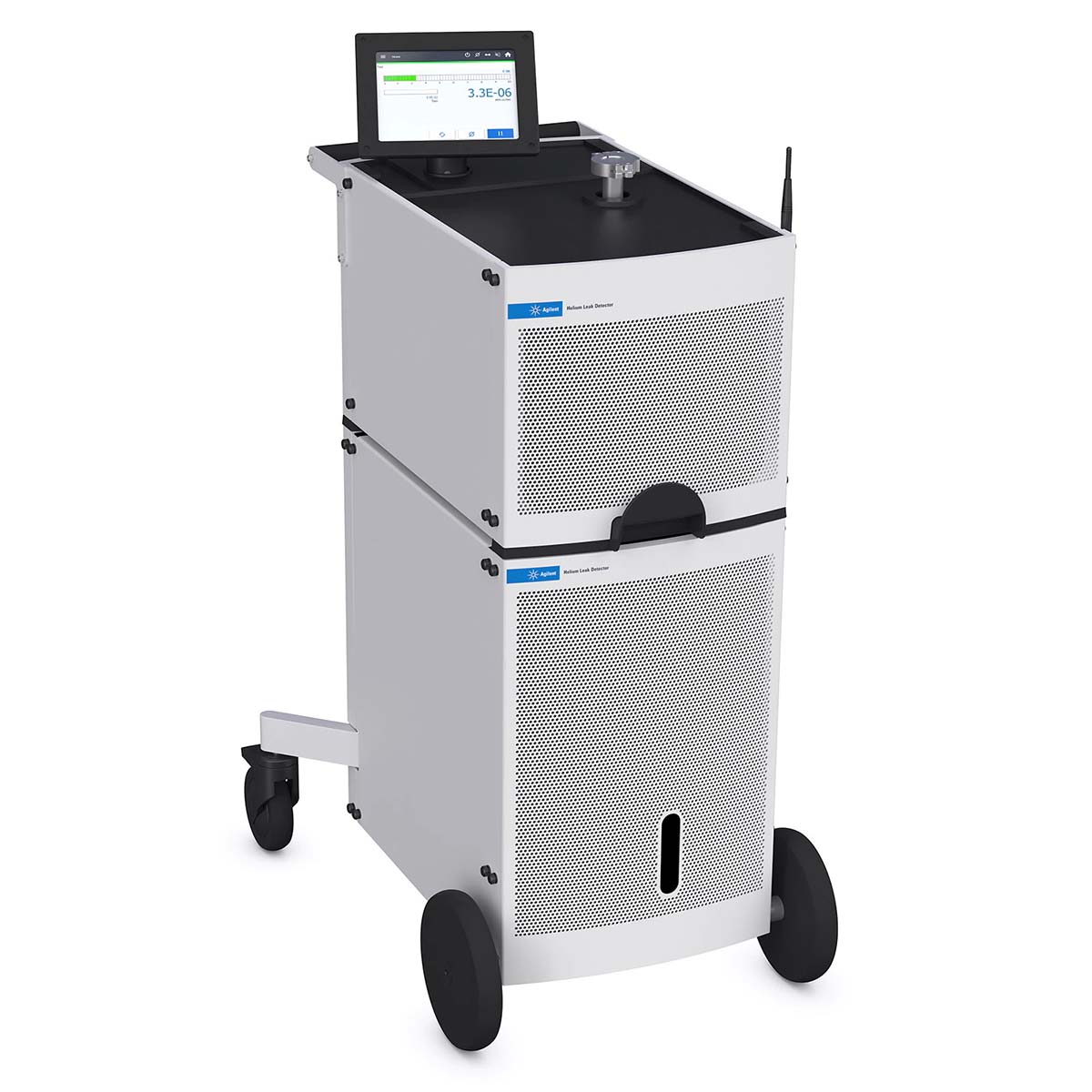

Agilent Varian VS MR15 Mass Spectrometer Mobile Helium Leak Detector - REBUILT
This product can be purchased or rented. Click the "RFQ
Features & Benefits
Fully automated start-up and calibration maximizes productivity
Programmable test sequences improves testing efficiency
Color touch screen provides excellent clarity, even at wide angles
High test port pressure allows for detection of large leaks
12-range MDL (helium sensitivity) meets the most stringent leak test requirements
New high efficiency ion source and beam optics optimize sensitivity and mass separation
Robust Faraday cup technology delivers proven reliability with low cost of ownership
Allows testing of large systems by a single operator
Leak detector can be located outside cleanroom to prevent contamination
Questions? send an email to our sales team!
Specifications
Bench Top
Bench Mount or Mobile
Model #
PR02 / PD03
MR15 & MD30
Rotary vane pump
DS-42 2 m3 /hr (34 l/m)
DS-302 14 m3 /hr (232 l/m)
Dry scroll pump
N/A
TS-620 30 m3 /hr (500 l/m)
Minimum detectable leak at 1,000 ppm ambient He
5 x 10-12 atm cc/sec : 5 x 10-12 mbar l/s : 5 x 10-13 Pa m3 /sec helium
Maximum test port pressure
13 mbar, 10 Torr, 1,330 Pa
Helium pumping speed @ test port (fine test)
1.8 l/s
Calibration routine
Automated or manual (internal or external)
Background suppression
Push button initiated auto zero, and auto zero < zero function
User interface
High clarity, color display, TFT touch screen
Selectable languages
English, French, German, Japanese, Korean, Mandarin, Spanish
Automated cycling
Programmable rough time, test time, reject set points
Response time
< 0.5 seconds
Set points
Standard, 5 set points, N/O or N/C; 3 leak rate, 1 pressure, 1 audio
Serial interface
RS-232 optically-isolated interface @ 9,600 baud (DB-9S)
Discrete I/O
Optically isolated, 5-24 volts VDC outputs and inputs (DB-25S)
Wireless remote control (optional)
2.4 GHz ISM band, 100m (328 ft) range, 4 AA batteries or 5 VDC supply
Model #
Description
120V
220V
Weight
VS PR02
Portable leak detector
Type
Label
Description
Download
Agilent VS Series - REBUILT
Operations Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian VS MR15 Mass Spectrometer Mobile Helium Leak Detector - REBUILT
VS MR15 VSMR151 100/115 VAC DS302 external
VS MR15 VSMR152 230 VAC DS302 external
This helium leak detector has the following options installed:
Wireless Remote, Base Unit: VSFACWB, VSFLDWB
I/O board with flapper box cable: VSFACIO, VSFLDIO
Leak Test Data Wizard Software: VSLTDW
11/8 in. Compression Test Port (N2 vent hardware): VSFLDCP
