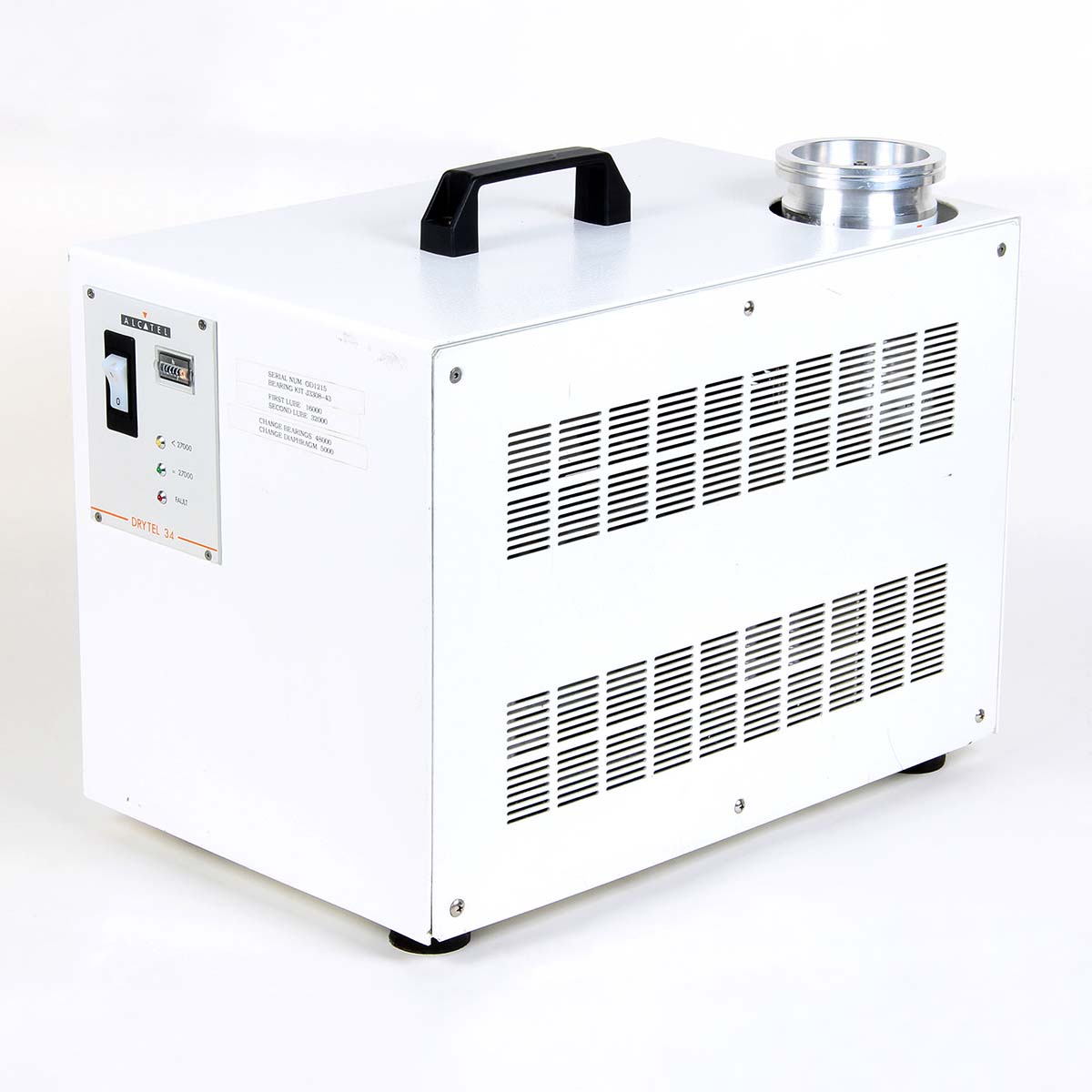

Alcatel DRYTEL 31 Turbomolecular Vacuum Pump Station - REBUILT
The MDP 5011 offers high pumping performances between 10 mbar and 10-5 mbar and a maximum flowrate fo 400 sccm.
With a simple construction but robust rotor and low rotational speed (27,000 rpm), the MDP is robust against accidental air in-rush, shock venting and gyroscopic effects.
Including built in ceramic ball bearings, the MDP is easily field maintainable.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | DN 63 ISO-K |
| Exhaust flange | DN 16 ISO-KF |
| Rotation speed | 27,000 tr/mn |
| Starting time (0 to 27,000 tr/mn) | < 1 mn |
| Pumping speed | |
| N2 | 7.5 l/s |
| He | 4 l/s |
| H2 | 3 l/s |
| Compression rate | |
| N2 | 1 x 109 |
| He | 2 x 104 |
| H2 | 1 x 103 |
| Ultimate pressure (CP with purge sccm) | 1 x 10-6 mbar |
| Max. pressure at inlet in continuous operation | |
| Natural convection | 1 x 10-1 mbar |
| Air cooling | 10 mbar |
| Water cooling | 10 mbar |
| Maximum pressure at exhaust in continuous operation | |
| Natural convection | 40 mbar |
| Air cooling | 40 mbar |
| Water cooling | 40 mbar |
| Ambient operating temperature | |
| Natural convection | 5 to 35°C (41 to 95°F) |
| Air cooling | 5 to 35°C (41 to 95°F) |
| Water cooling | 5 to 50°C (41 to 122°F) |
| Recommended primary pump | Ultimate pressure < 20 mbar |
| Weight | |
| Natural convection | 2.3 kg |
| Air cooling | 3 kg |
| Water cooling | 2.5 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Adixen Pfeiffer MDP 5011 - REBUILT | User's Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Alcatel DRYTEL 31 Turbomolecular Vacuum Pump Station - REBUILT
