The ISP series of vacuum pumps offer a clean vacuum environment and eliminate the nuisance of cumbersome lubricant maintenance or sealing water administration. The ISP series is free from installation restrictions because of its air-cooled system. ISP vacuum pumps maintain low power consumption from atmosphere to maximum pressure.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement	50 Hz 60 Hz	1,000 L/min 1,200 L/min
Ultimate pressure Pa {Torr}		≤ 1 {≤ 7.5 x 10^-3}
Leak tightness Pa • m³/s		≤ 1.0 x 10^-5
Max. inlet pressure		Atmospheric pressure
Ambient operating temperature		10°C ~ 40°C
Type		3-phase squirrel cage induction motor 4P Totally-Enclosed Insulation Class B IP44
Output		1.4 kW
Voltage		200 V	208 V	230 V	380 V	400 V	415 V	460 V
Rated current A	50 Hz 60 Hz	5.5 5.8	- 5.8	- 5.7	3.1 -	3.4 -	3.6 -	- 3.3
Revolution min^-1 {rpm}	50 Hz 60 Hz	1,450 1,735	- 1,735	- 1,755	1,465 -	1,470 -	1,470 -	- 1,765
Noise level at 1m dB(A) w/ air-flush ON		≤ 67 ≤ 74
Inlet connection		NW40
Outlet connection		NW40
Direction of inlet		Horizontal (vertical)

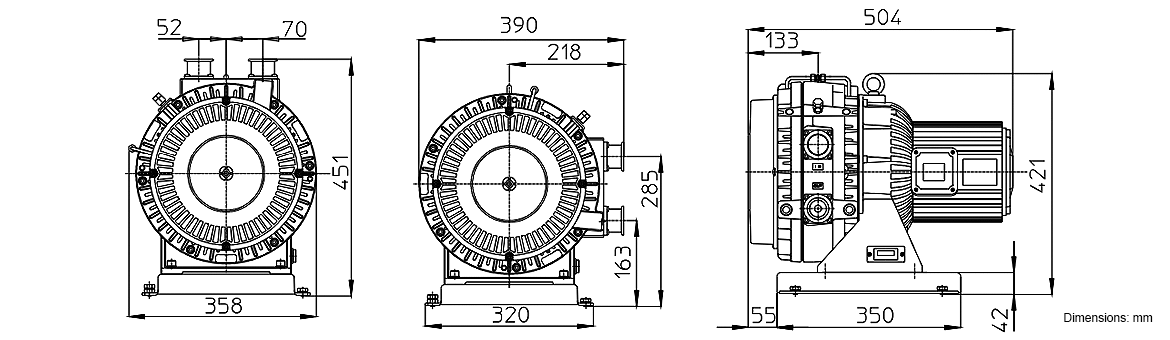

Dimensions		504 x 390 x 421 mm 19.8 x 15.3 x 16.5 in
Mass		56 kg (123.4 lbs)
Cooling system		Air-cooled
Others		w/ hour counter and air-flush

Digital Manuals

Type	Label	Description	Download
	ANEST IWATA ISP-1000 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

ANEST IWATA ISP-1000 Dry Scroll Vacuum Pump - NEW

ISP-1000-THA
ISP-1000-TVA
