ANEST IWATA ISP-500C - REBUILT
Weight
97 lbs
Motor Power
0.8 hp
Pumping Speed
21.18 cfm
Ultimate Pressure
≤ 7.5 x 10-3 Torr

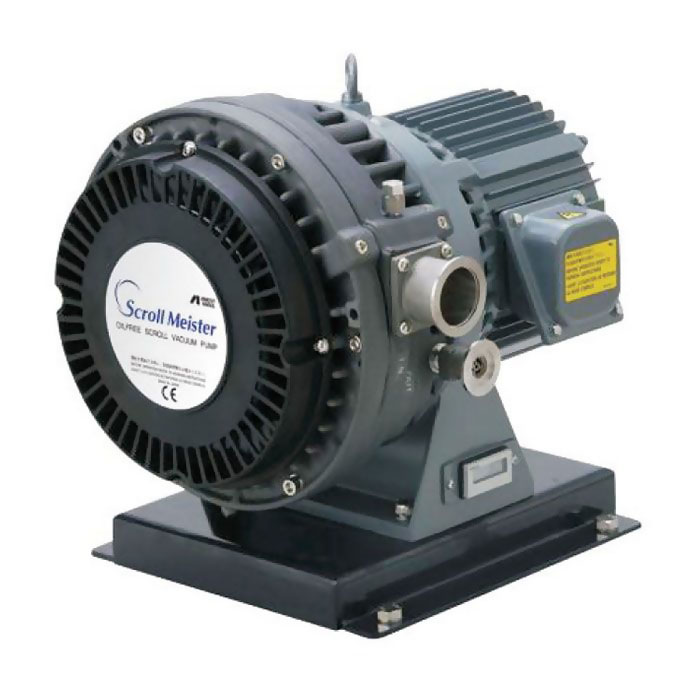

ANEST IWATA ISP-500C Dry Scroll Vacuum Pump - REBUILT
Rebuilt ANEST IWATA scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Displacement
50 Hz 60 Hz
500 L/min 600 L/min
Ultimate pressure Pa
≤ 1
Leak tightness Pa • m3 /s
≤ 1.0 x 10-5
Max. inlet pressure
Atmospheric pressure
Ambient operating temperature
5°C ~ 40°C
Type
Single-phase induction motor 4P Totally-enclosed Insulation Class B IP44 Capacitor start TP212 Automatic Reset Type
3-phase induction motor 4P Totally-Enclosed Insulation Class B IP44
Output
0.6 kW
Voltage
100 V
115 V
200 V
230 V
200 V
208 V
230 V
380 V
400 V
415 V
460 V
Rated current A
50 Hz 60 Hz
8.5 10.0
- 8.6
4.3 4.8
3.9 4.0
2.7 2.8
- 2.6
- 2.5
1.57 -
1.57 -
1.63 -
- 1.47
Revolution min-1 {rpm}
50 Hz 60 Hz
1,430 1,660
- 1,720
1,430 1,690
1,450 1,730
1,460 1,740
- 1,760
- 1,760
1,470 -
1,470 -
1,470 -
- 1,770
Noise level at 1m dB(A) w/ air-flush ON
≤ 62 ≤ 70
≤ 60 ≤ 68
Inlet connection
NW40
Outlet connection
NW25
Direction of inlet
Horizontal (vertical)

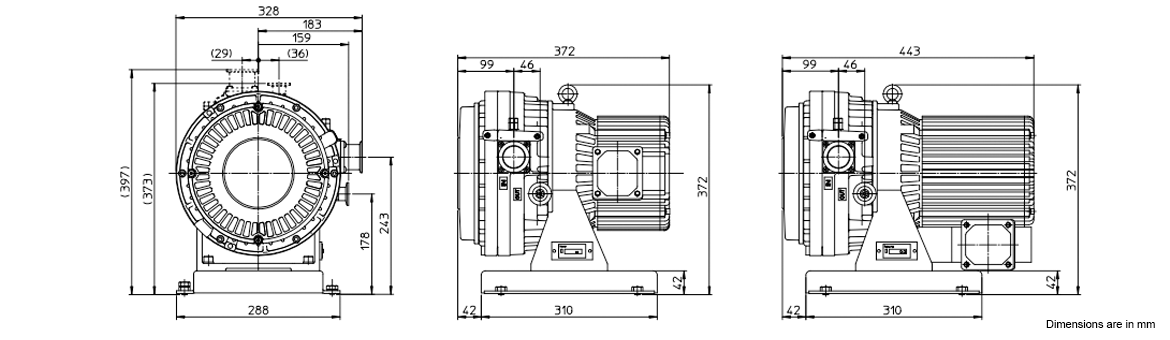

Dimensions
443 x 328 x 372 mm 17.4 x 12.9 x 14.6 in
372 x 328 x 372 mm 14.6 x 12.9 x 14.6 in
Mass
44 kg (97 lbs)
38 kg (83.7 lbs)
Cooling system
Air-cooled
Others
w/ hour counter and air-flush
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
ANEST IWATA ISP-500C Dry Scroll Vacuum Pump - REBUILT
ISP-500C 1-phase 21 cfm
ISP-500C 3-phase 21 cfm
