CTI-Cryogenics IS-1000 - REBUILT
Call for Price
In stock
SKU
REBUILT_IS1000
| Weight | 222 lbs |
|---|---|
| Power | 5.8 kW |

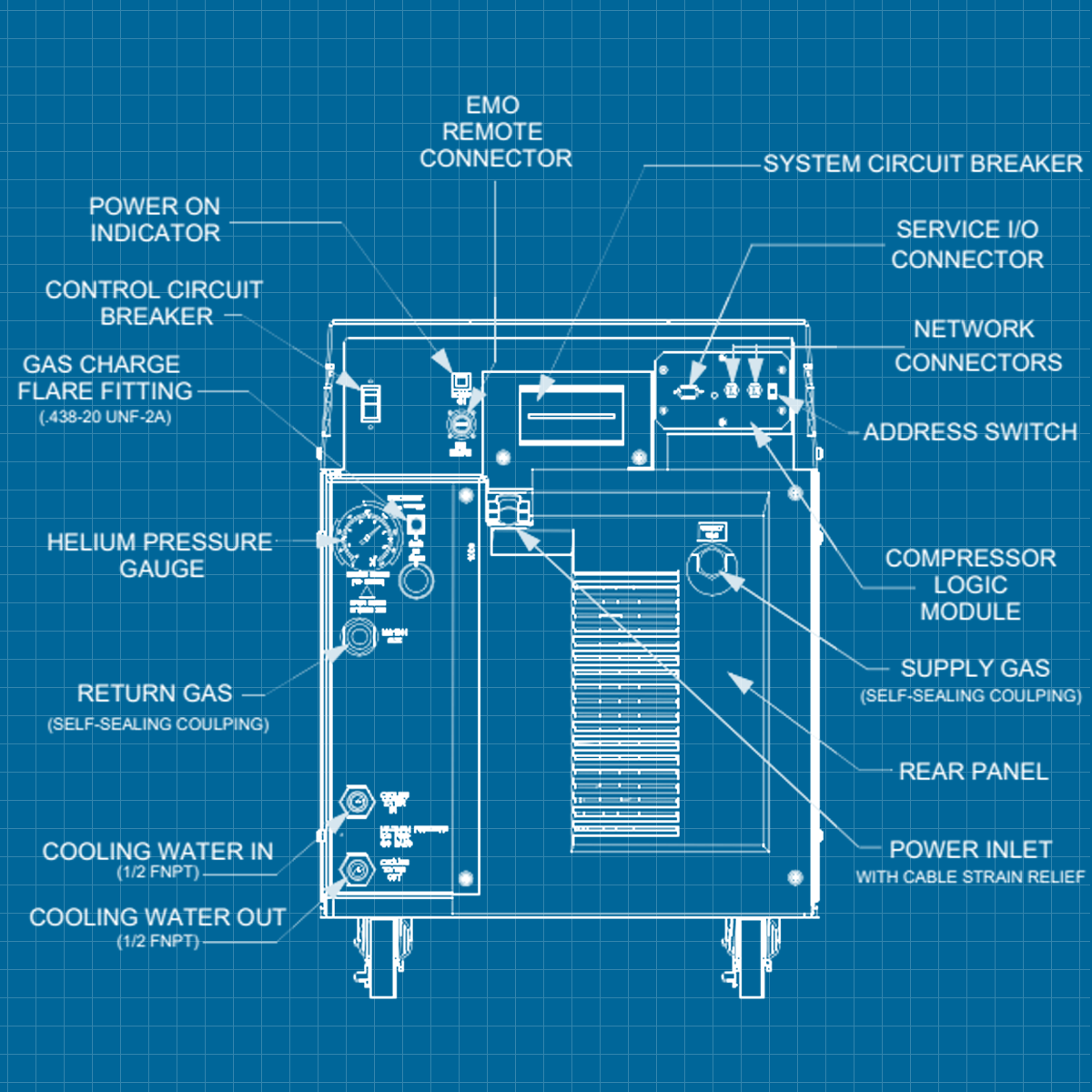

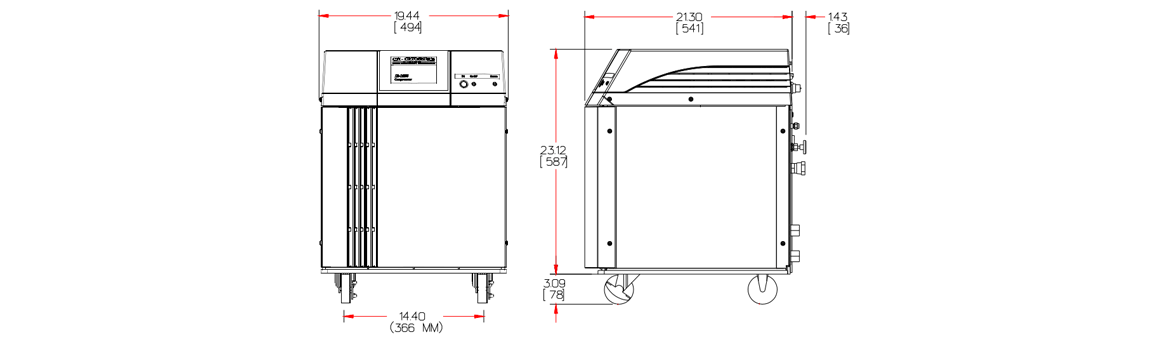

Brooks CTI-Cryogenics IS-1000 On-Board IS Cryopump Helium Compressor - REBUILT
Atlas Copco purchased CTI from Brooks and placed it under the Edwards brand.
The IS-1000 has Intelligent, high efficiency compressor technology for On-Board IS cryopumps. The IS-1000 compressor will support up to six On-Board IS-8F cryopumps in the same footprint as a 9600 compressor.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Low Voltage | High Voltage | |
|---|---|---|
| Operating voltage | 180 - 253 VAC | 342 - 528 VAC |
| Line frequency | 50 / 60 Hz | |
| Phase | 3 | |
| Nominal input power | 5.8 kW | |
| Rated full load / locked rotor current | 19 / 85 | 10 / 42 |
| Minimum electrical service | 30 Amps | 20 Amps |
| Maximum inlet temperature | 90°F (32°C) | |
| Minimum inlet temperature | 50°F (10°C) | |
| Flow rate | 2.75 ± 1.25 gpm (10.4 ± 4.7 lpm) | |
| Maximum inlet pressure | 100 psi (6.9 bars) | |
| Alkalinity | 6.0 - 8.0 pH | |
| Calcium carbonate | < 75 ppm | |
| Deionized water usage | Do not use above 100,000 ohm-cm resistivity | |
| Input power cable (Customer supplied) |
600 VAC 10 Gauge, 3 conductor wire with ground Must conform to local electrical codes |
|
| Ambient operating temperature range | 50 - 100ºF (10 - 38ºC) | |
| Gas supply connector Gas return connector EMO remote control receptacle |
1/2 in. Aeroquip self-sealing coupling, male thread. 1/2 in. Aeroquip self-sealing coupling, female thread. Mates with P5 connector part number MS3106A |
|
| Adsorber service schedule | 3 Years | |
| Weight | 210 lbs / 95 kg | 222 lbs / 102 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Brooks CTI-Cryogenics On-Board IS 1000 - REBUILT | Installation, Operation & Maintenance Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics IS-1000 On-Board IS Cryopump Helium Compressor - REBUILT
8135921G002 low voltage 8135926G002 high voltage
Related Products
-
CTI-Cryogenics On-Board IS 250F - REBUILTCall for Price
-

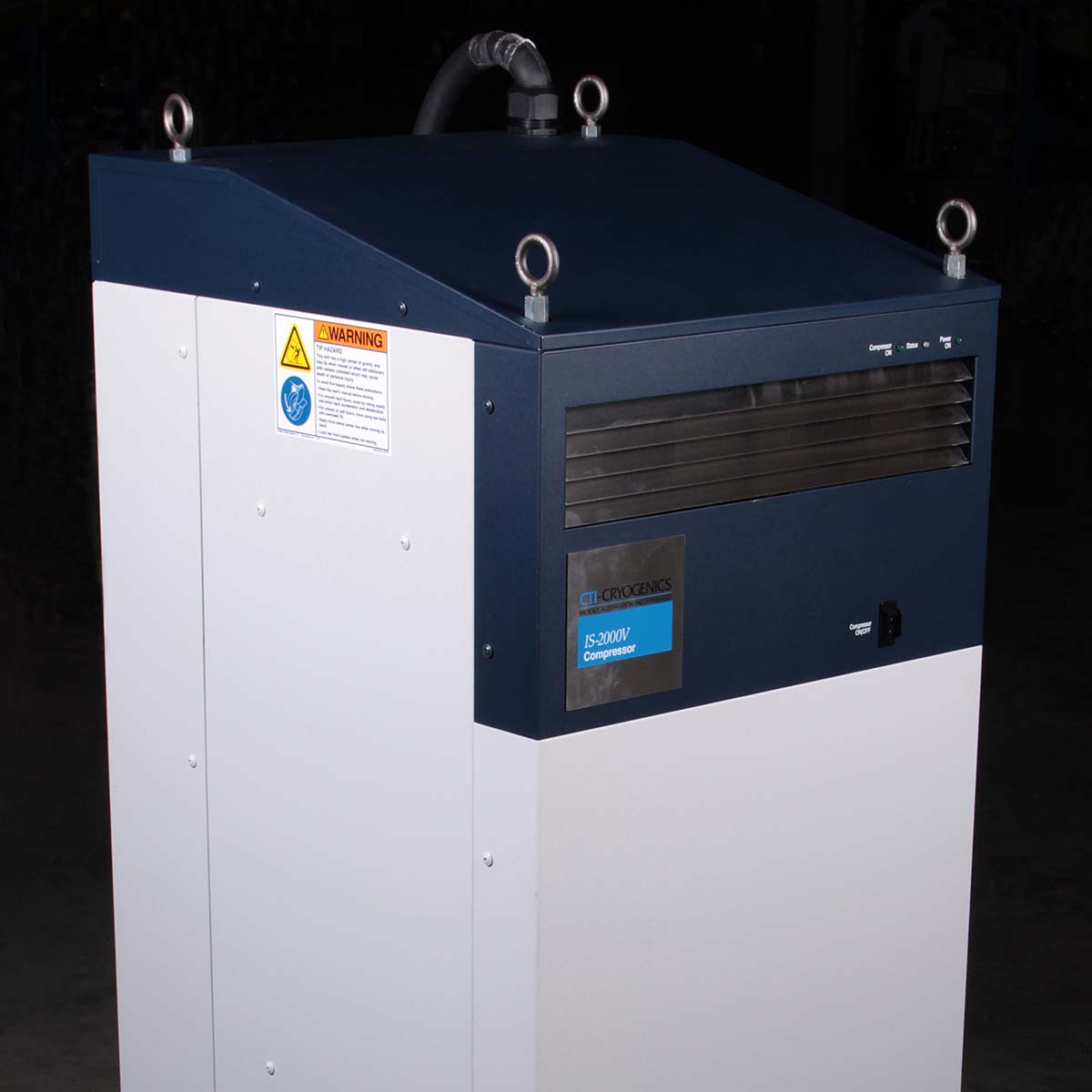

CTI-Cryogenics IS-2000V - REBUILTCall for Price
-
