CTI-Cryogenics On-Board IS 8F - REBUILT
Call for Price
| Weight | 67 lbs |
|---|---|
| Pumping Speed | 1,500 l/s |

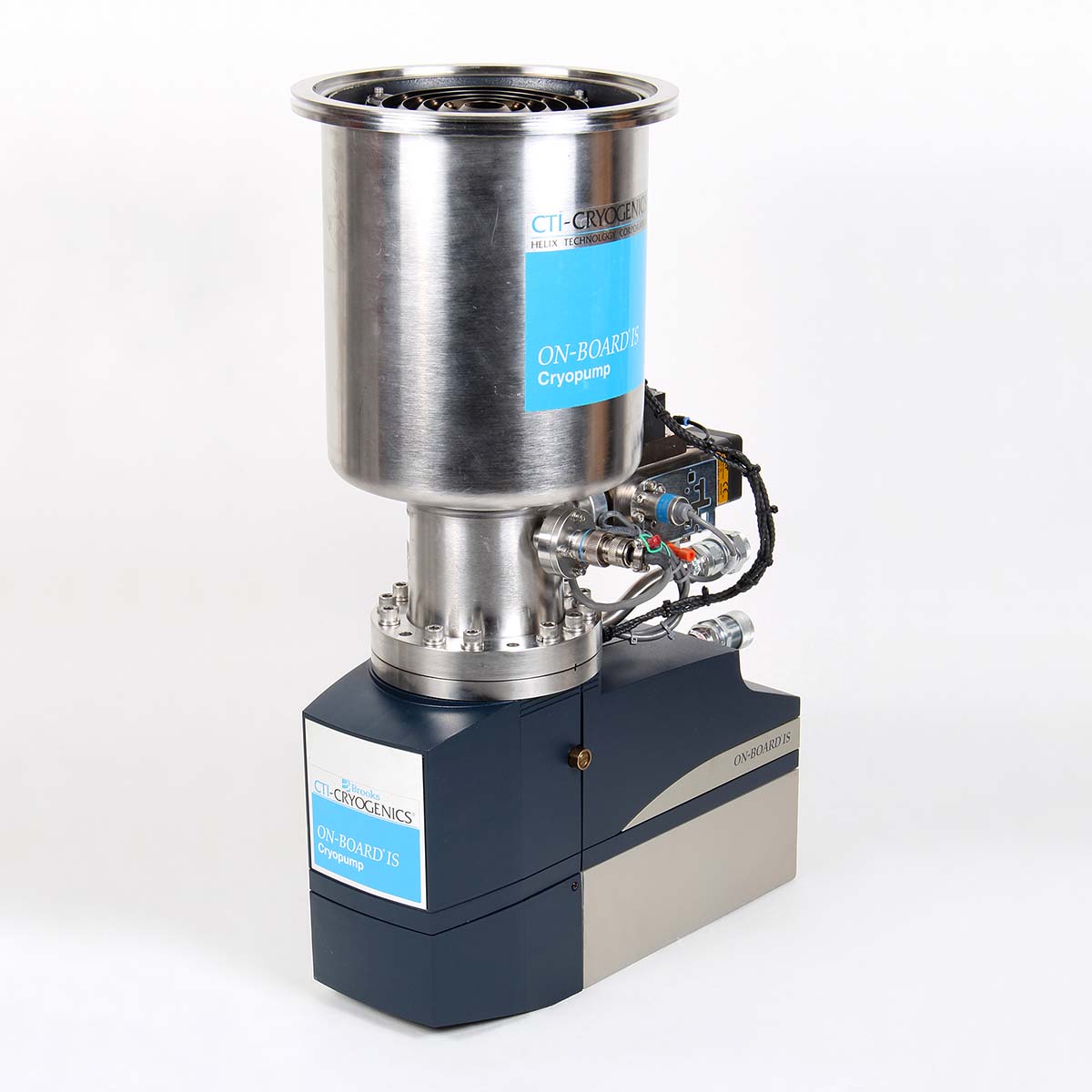

Brooks CTI-Cryogenics On-Board IS 8F Vacuum Cryopump - REBUILT
The acquisition of CTI from Brooks includes cryo pump operations located in Chelmsford, USA and Monterrey, Mexico, under the Edwards brand.
Call for a quote. Ask us for options you would like included e.g. a three phase motor or a Fast Regen module. We also offer one year warranty repair service. View the other On-Board IS models.
Brooks CTI-Cryogenics On-Board cryogenic vacuum pumps incorporate embedded microprocessor control to enhance performance, perform diagnostic routines and provide communication capability. The On-Board Network module is included in the price.
Features
- Regenerates in half the time of a typical Cryo-Torr cryopump.
- Simultaneous regeneration capability, enabled by networking your cryopumps, to speed the overall system regeneration.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
This product has been refurbished by PTB Sales, Inc. PTB Sales is not affiliated with Brooks Automation, Inc., the Original Equipment Manufacturer. In some cases, PTB Sales uses processes and parts that are different from those used by the OEM, and the OEM expressly disclaims any warranty obligations with respect to this refurbished product.

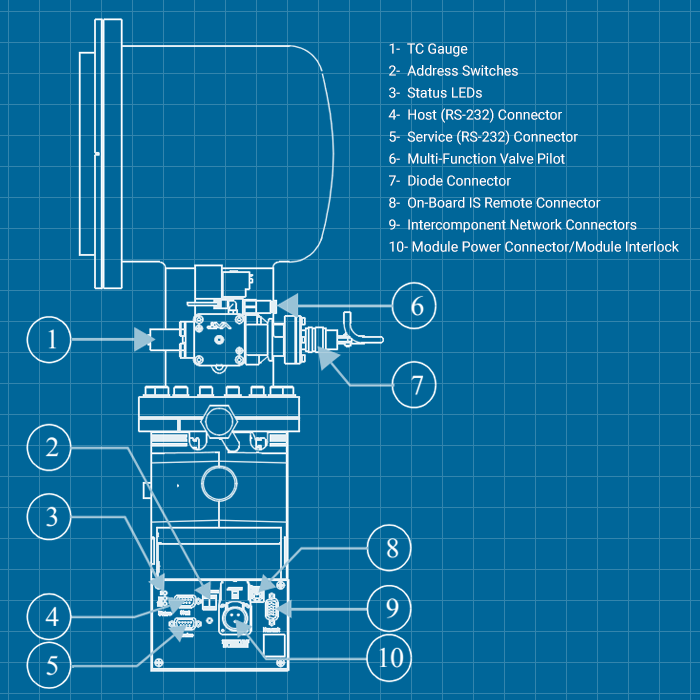

| Integrated hardware | Roughing valve Purge valve Cryopump TC gauge 1st stage diode 2nd stage diode 1st stage heater 2nd stage heater RS-232 interface |
| Pumping speeds | |
| H2O | 4,000 liters/sec |
| N2 | 1,500 liters/sec |
| H2 | 2,200 liters/sec |
| Ar | 1,200 liters/sec |
| Ar throughput at 20K* | 250 - 700 sccm (Torr-liters/sec) |
| Capacities | |
| Ar | 1,000 std. liters @ 5 x 10-6 Torr 750 std. liters @ 5 x 10-7 Torr (recovery in 30 seconds) |
| H2 | 12 std. liters @ 5 x 10-6 Torr |
| N2 | 550 std. liters (recovery to 5 x 10-7 Torr in 30 seconds) |
| Crossover | 150 Torr-liters |
| Full regeneration - cold to cold (with 1 minute extended purge) |
≤ 90 minutes (1 pump / 1 compressor) ≤ 120 minutes (5 pumps / 1 compressor) |
| Fast regeneration | ≤ 35 minutes (1 pump / 1 compressor) ≤ 60 minutes (5 pumps / 1 compressor) |
| Weight | 67 lbs |
*Depends upon system configuration
This product has been refurbished by PTB Sales
| Type | Label | Description | Download |
|---|---|---|---|
|
Brooks CTI-Cryogenics On-Board IS Series - REBUILT | Installation Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics On-Board IS 8F Vacuum Cryopump - REBUILT Please contact us for part number configurations:
| 8185015G001 | 8185015G002 | 8185023G001 | 8185036G001 | 8185039G001 | 8185040G001 | 8185063G001 | 8185037G001 |
| 8185037G002 | 8185038G001 | 8185041G001 | 8185041G002 | 8185042G001 | 8185042G002 | 8185057G001 | 8185058G001 |
| 8185071G001 | 8185071G002 | 8185074G001 | 8185085G001 | 8185086G001 | 8185087G001 | 8185094G001 | 8185095G001 |
| 8185095G002 | 8185099G001 | 8185100G001 | 8185117G001 | 8185117G002 | 8185124G001 | 8185125G001 | 8185137G001 |
| 8185137G002 | 8185140G001 | 8185140G002 | 8185142G001 | 8185143G001 | 8185144G001 | 8185146G001 | 8185149G001 |
| 8185150G001 | 8185151G001 | 8185153G001 | 8185155G001 | 8185157G001 | 8185157G002 | 8185159G001 | 8185162G001 |
| 8185163G001 | 8185163G002 | 8185175G001 | 8185175G002 | 8185185G001 | 8185185G002 | 8185192G001 |
