Edwards E1M18 - REBUILT
Call for Price
| Weight | 82 lbs |
|---|---|
| Motor Power | 1 hp |
| Pumping Speed | 17 m3/h |
| Ultimate Pressure | 2.2 x 10-2 Torr |

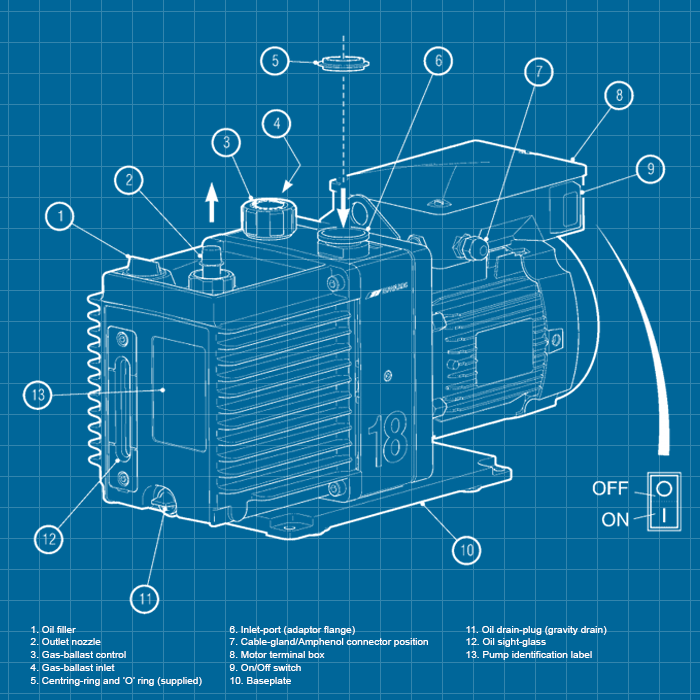

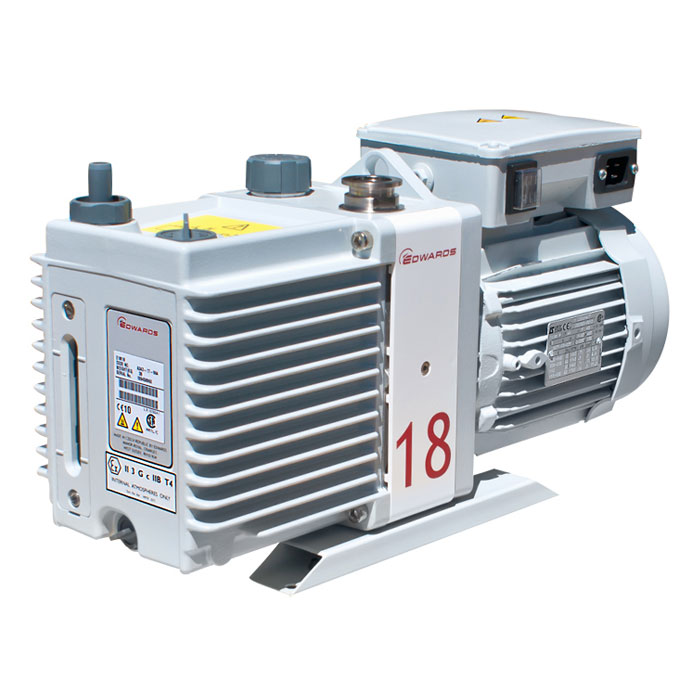

Edwards E1M18 Single Stage Rotary Vane Vacuum Pump - REBUILT
The EM range of oil-sealed rotary pumps - renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour - have become the industry standard for laboratory and light industrial applications. The E1M18 and E2M18 pumps are direct drive, sliding vane pumps. The pump is oil sealed and designed for reliable, long-term operation. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single-phase or three-phase (four-pole) motor.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 20.5 m3h-1 / 12.1 ft3min-1 |
| 60 Hz | 25.0 m3h-1 / 14.7 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 17.0 m3h-1 / 10 ft3min-1 |
| 60 Hz | 20.4 m3h-1 / 12.1 ft3min-1 |
| Ultimate vacuum (total pressure) | |
| w/out gas purge | 3 x 10-2 mbar / 2.2 x 10-2 Torr |
| w/ gas purge | 6.5 x 10-1 mbar / 4.8 x 10-1 Torr |
| Inlet connection | NW25 |
| Outlet connection | Nozzle 15 mm external diameter removable from 3/4" BSP tapped hole |
| Maximum permitted pressure at outlet | 0.5 bar gauge / 7 psig |
| Maximum inlet pressure for water vapour | 50 mbar / 38 Torr |
| Maximum water vapour pumping rate | 0.65 kg h-1 |
| Motor power 50/60 Hz | 0.55 kW / 0.75kW |
| Nominal rotational speed 50/60Hz | 1,440/1,720 rpm |
| Power connector | IEC EN60320 C19 |
| Operating temperature range | 13 - 40°C |
| Weight | 37 kg / 82 lbs |
| Noise | 57 dB(A) @ 50 Hz |
| Oil capacity - maximum | 1.4 litre |
| Oil capacity - minimum | 0.9 litre |
| Recommended oil | Ultragrade 19 |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards E1M18 & E2M18 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E1M18 Single Stage Rotary Vane Vacuum Pump - REBUILT
CODE NO. A343-10-940 / A34310940 E1M18 200-230/380-415V 50Hz three-phase or 200-230/460V 60Hz 3-phase
CODE NO. A343-15-904 / A34315904 E1M18 100/200V 50Hz single-phase or 100-105/200-210V 60Hz 1-phase
CODE NO. A343-17-984 / A34317984 E1M18 115/200-230V 50/60Hz 1-phase IEC factory set to 230V
A343-24-930 / A34324930 E1M18 230V
A343-15-903 / A34315903 E1M18 220-240V 50/60Hz 1-phase
A343-16-903 / A34316903 E1M18 230V 50/60Hz 1-phase
A343-17-984 / A34317984 ElM18 115V/200-230V 50/60Hz
A343-24-904 / A34324904 E1M18 100/200V 50/60Hz
