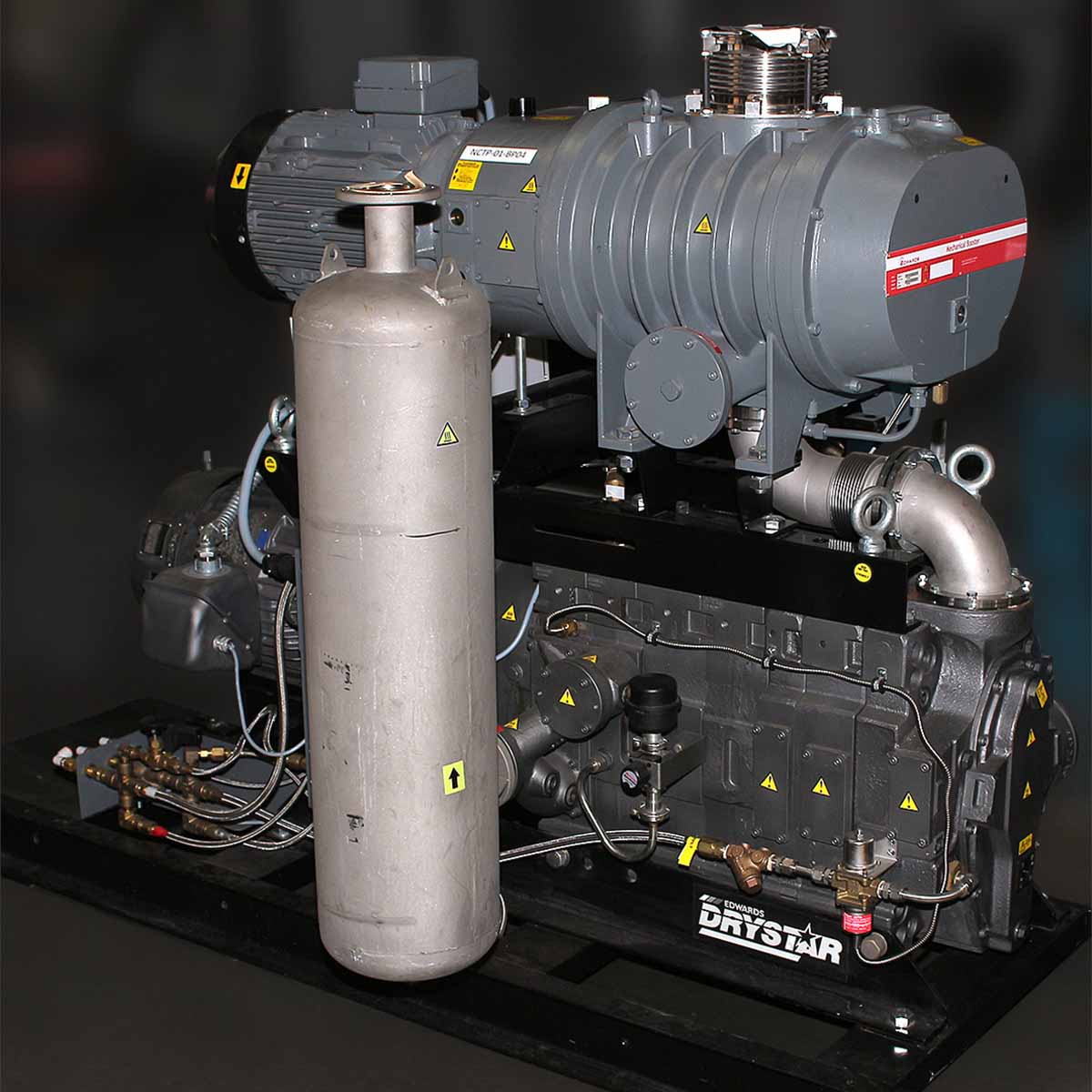

Edwards GV600 DRYSTAR - REBUILT
Call for Price
| Weight | 2100 lbs |
|---|---|
| Pumping Speed | 540 m3/h |
| Ultimate Pressure | 4 x 10-2 mbar |
Edwards GV600 DRYSTAR Industrial Dry Vacuum Pump - REBUILT
The DRYSTAR® GV80 – 600M range is based on the well proven Edwards reverse claw mechanism reaching a peak speed of 560 m3h-1 / 330 ft3min-1. The reverse claw mechanism results in short gas paths within the operating mechanism, providing the ability to handle large amounts of dust and water vapor, when compared to oil sealed pumps, without deterioration of performance. The GV range is able to handle large amounts of dust and water vapor with little or no effect on performance. Advantages to this include:
- Low cost of ownership in harsh conditions
- High reliability – dry mechanism proven in 100,000 installations
- Oil free mechanism – reduced maintenance
- Higher dust and water vapor tolerance
- Accessories to optimize pump performance to process variables
- Fast pump down with Edwards hydrokinetic drive booster pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Construction | 3 claw + 1 roots |
| Displacement | 793 m3h-1 / 467 ft3min-1 |
| Pumping speed* | 560 m3h-1** / 330 ft3min-1** |
| Ultimate pressure | < 0.05 mbar / < 0.0375 Torr |
| Power consumption at 10 mbar / 7.5 Torr | 7 Kw / 9.4 hp |
| Motor Rating | 22.5 kW / 30 hp |
| Cooling-water flow at 20°C | 5.5 l min-1 / 1.43 gal min-1 |
| Seal purge (dry air) | < 22 l min-1 @ 0.4 bar / < 0.6 ft-3 @ 6 psig |
| Noise level | 80 dB(A) |
| Inlet connection | ISO100 |
| Outlet connection | ISO63 |
| Weight | 950 kg / 2,100 lbs |
| Gear box oil capacity | 1.6 liter / 0.42 gal |
| Electrical supply | 380/415V 50 Hz 3 ph |
* Measured in accordance with Pneurop 6602 at 40°C
** GV600 @ 1 mbar
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards GV DRYSTAR Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards GV600 DRYSTAR Industrial Dry Vacuum Pump - REBUILT A70574900 / A705-74-900 GV600 380/415V 50Hz A70574908 / A705-74-908 GV600 230/460V 60Hz A70574985 / A705-74-985 GV600 bareshaft 50Hz A70574986 / A705-74-986 GV600 bareshaft 60Hz A70575985 / A705-75-985 GV600F bareshaft 50Hz A70575986 / A705-75-986 GV600F bareshaft 60Hz
