Edwards iQDP80 - REBUILT
| Weight |
476.20 lbs |
| Pumping Speed |
80 m3/h |
| Ultimate Pressure |
3 x 10-2 mbar |

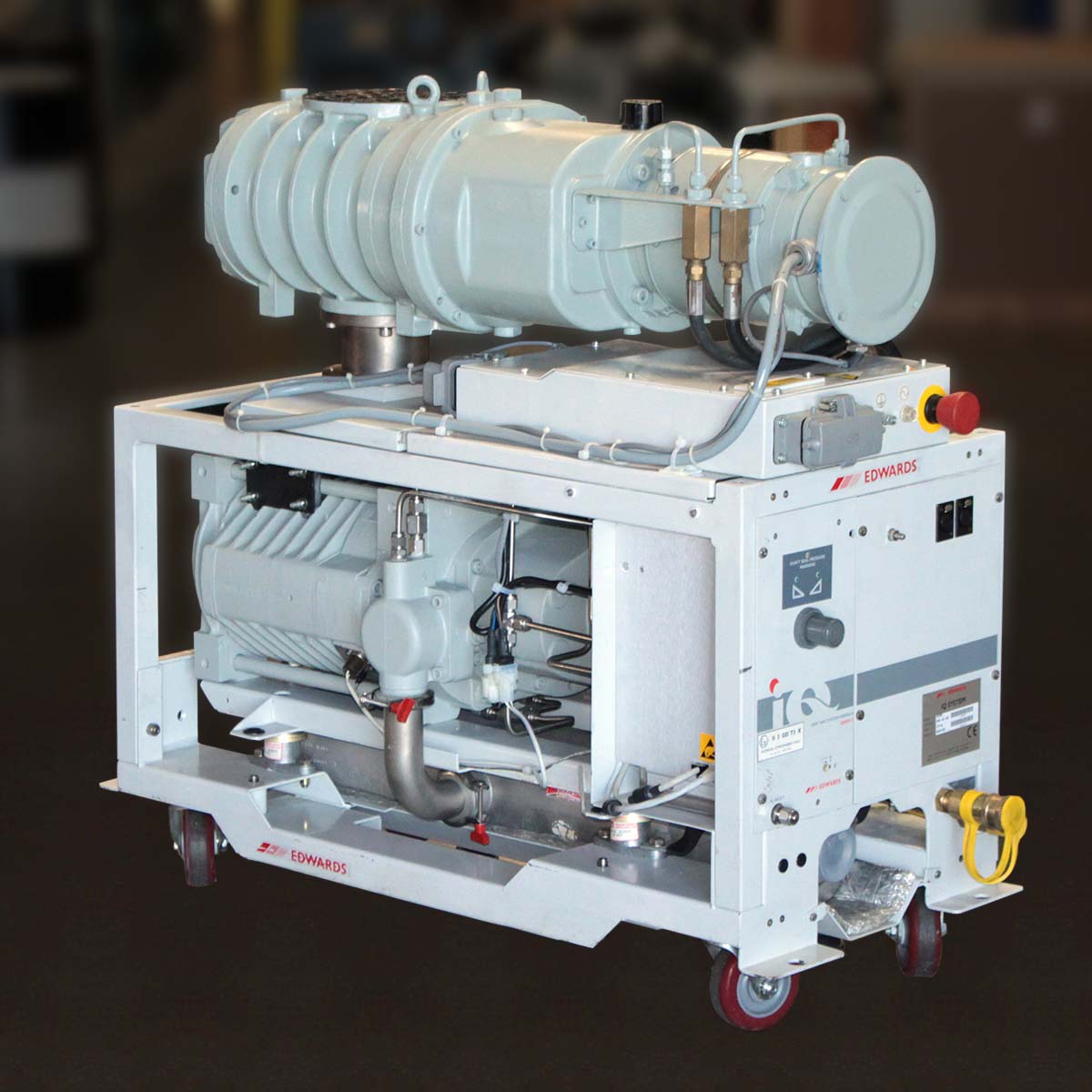

Edwards iQDP80 Semiconductor Dry Vacuum Pump - REBUILT
Rebuilt with a one year warranty. Sound enclosure panels, various nitrogen purge configurations and other features can be provided per quote.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| |

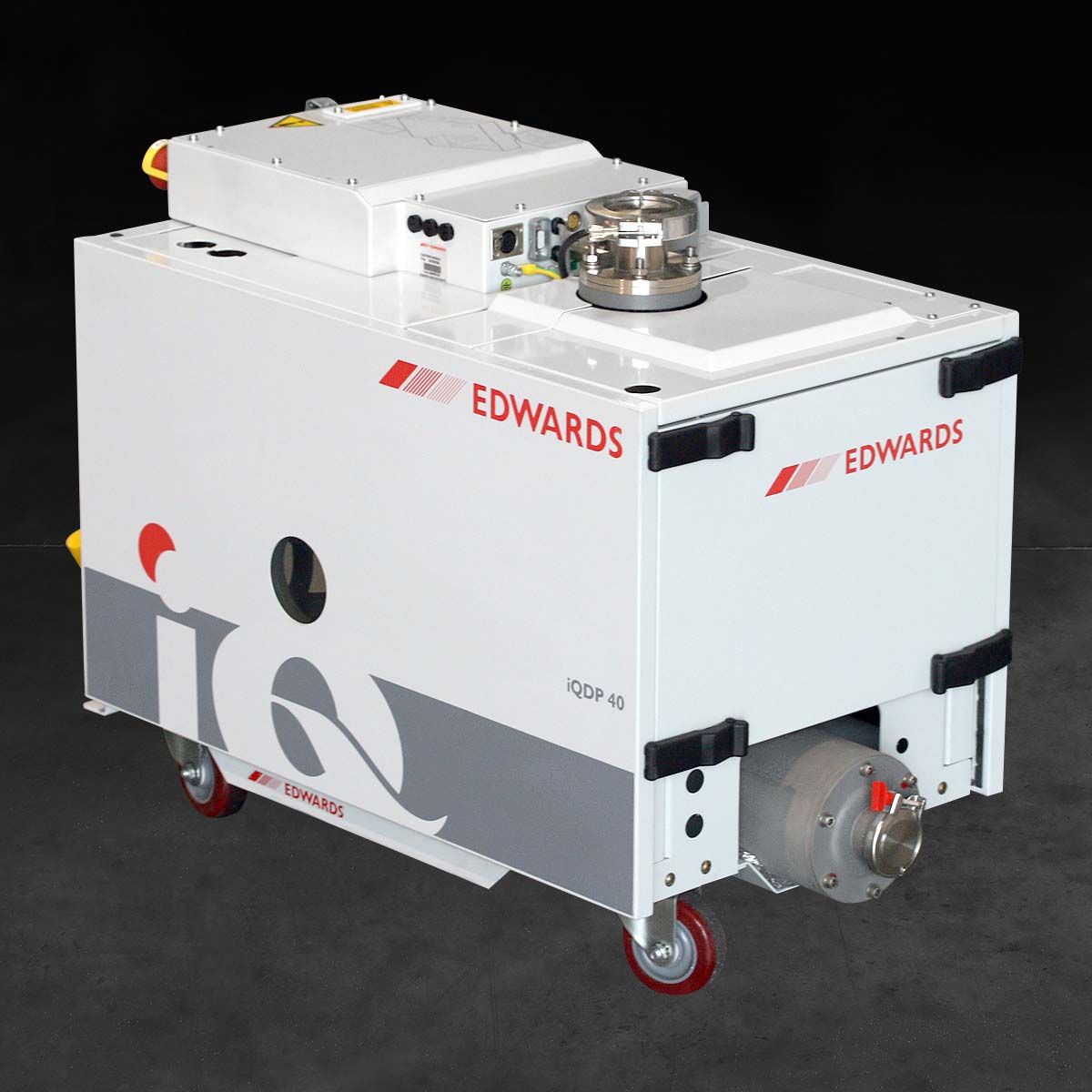

iQDP40 / QDP40 / DP40 |
iQDP80 / QDP80 / DP80 |
| 60 Hz |
| Peak speed |
| m3h-1 |
55 |
96 |
| cfm |
32 |
56.4 |
| Displacement |
| m3h-1 |
62 |
110 |
| cfm |
36.7 |
64.7 |
| Ultimate vacuum |
| mbar |
3 x 10-2 |
1 x 10-2 |
| Torr |
2 x 10-2 |
8 x 10-3 |
| Inlet connection |
ISO 40 bolted |
ISO 63 bolted |
| Outlet connection |
NW 40 |
NW 40 |
| Power input @ vacuum (kW) |
1.3 |
3.1 |
| Motor power (kW) |
2.2 |
4.0 |
| Weight (kg) |
186 |
216 |
Specification
| Type |
Label |
Description |
Download |
|
|
BOC Edwards iQ Series - REBUILT |
Instruction Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards iQDP80 Semiconductor Dry Vacuum Pump - REBUILT
IQ2100204 / IQ21-00-204 iQDP80 HAR WFS 208V 60Hz 3-phase
IQ2100004 / IQ21-00-004 iQDP80 HAR 208V 60Hz 3-phase
IQ6120004 / IQ61-20-004 iQDP80/500 HAR DM 208V 60Hz
IQ7140404 / IQ71-40-404 iQDP80/1200 HAR FM OLM H2O 208V 60Hz
