Edwards Stokes 622-2 - REBUILT
Call for Price
In stock
SKU
REBUILT_622-2
| Weight | 1,365 lbs |
|---|---|
| Motor Power | 25 hp |
| Pumping Speed | 3,840 cfm |

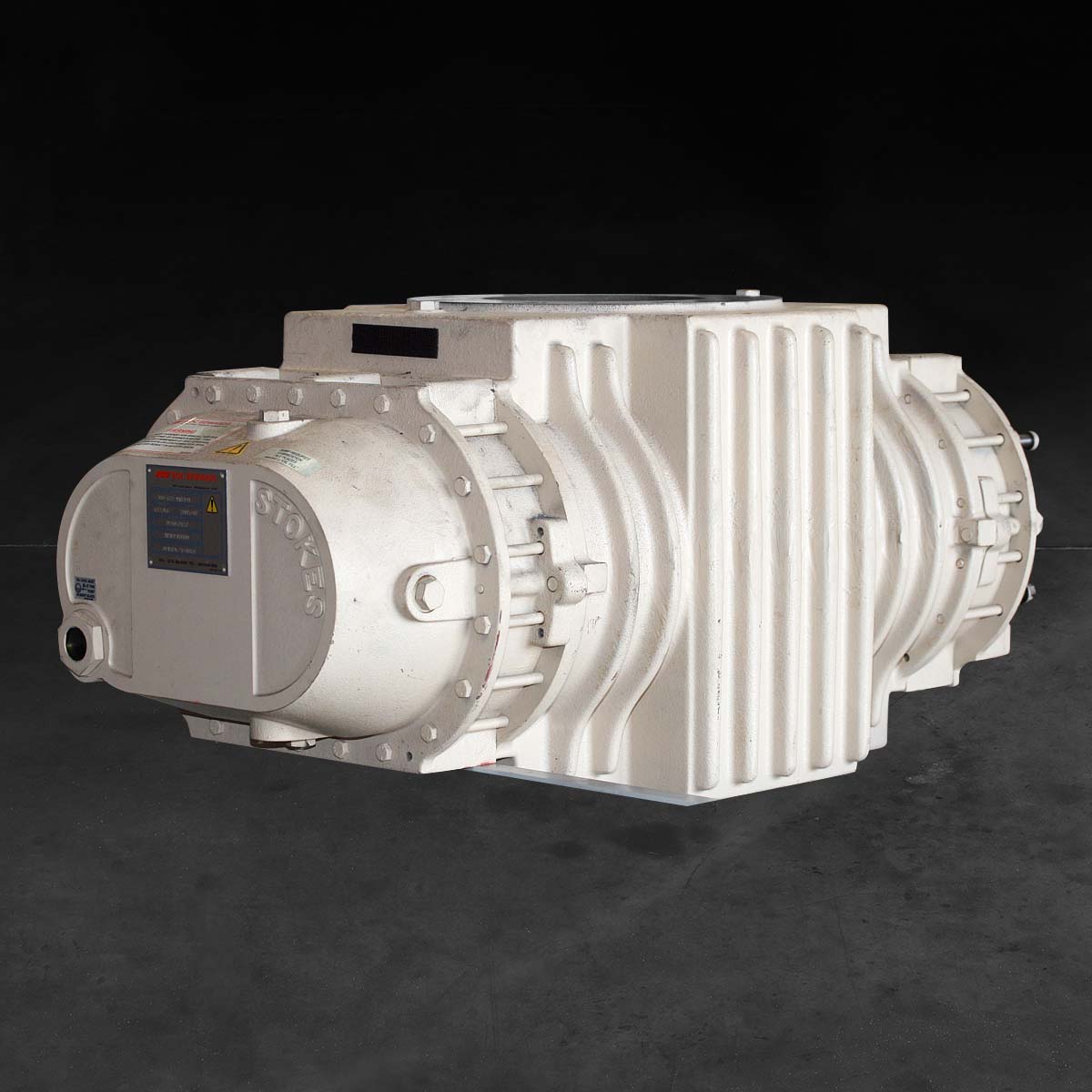

Edwards Stokes 622-2 Roots Vacuum Blower - REBUILT
The Stokes 6" Series mechanical booster pumps provide high throughput pumps for industrial and arduous chemical applications. Utilizing reliable, rugged designs, these pumps offer a low cost, space saving pumping system.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | Horizontal flow | Vertical flow |
|---|---|---|
| Displacement | ||
| V belt (2,750 rpm) | 5,100 m3h-1 / 3,000 ft3min-1 | |
| Direct drive (3,000 rpm) | 5,525 m3h-1 / 2,350 ft3min-1 | |
| Direct drive (3,600 rpm) | 6,630 m3h-1 / 3,900 ft3min-1 | |
| Inlet / outlet flanges | 8” ASA / ANSI | |
| Motor power EU / Asia | 18.5 kW | |
| Motor power US TEFC | 25 hp | |
| Cooling method | Air cooled | |
| Oil capacity | 1.9 liter / 0.51 gal | 4.1 liter / 1.1 gal |
| Max pressure differential | 333 mbar / 250 Torr | |
| Max temp rise | 151°C / 275°F | |
| Max discharge temp | 177°C / 350°F | |
| Weight bare shaft | 335 kg / 740 lbs | |
| Weight TEFC direct drive | 619 kg / 1,365 lbs | |
| Recommended oil | V-Lube H | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards MHR & MVR 607 - 622 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Stokes 622-2 Roots Vacuum Blower - REBUILT 900-622-1 622-1 / 622-001 Vertical V-belt drive 900-622-2 622-2 / 622-002 Horizontal V-belt drive 900-622-401 622-401 Vertical direct drive 900-622-402 622-402 Horizontal direct drive
