Edwards EH1200 - NEW
Call for Price
In stock
SKU
NEW_EH1200
| Weight | 328 lbs |
|---|---|
| Motor Power | 4 hp |
| Pumping Speed | 930 m3/h |
| Ultimate Pressure | 7.60 x 102 Torr |

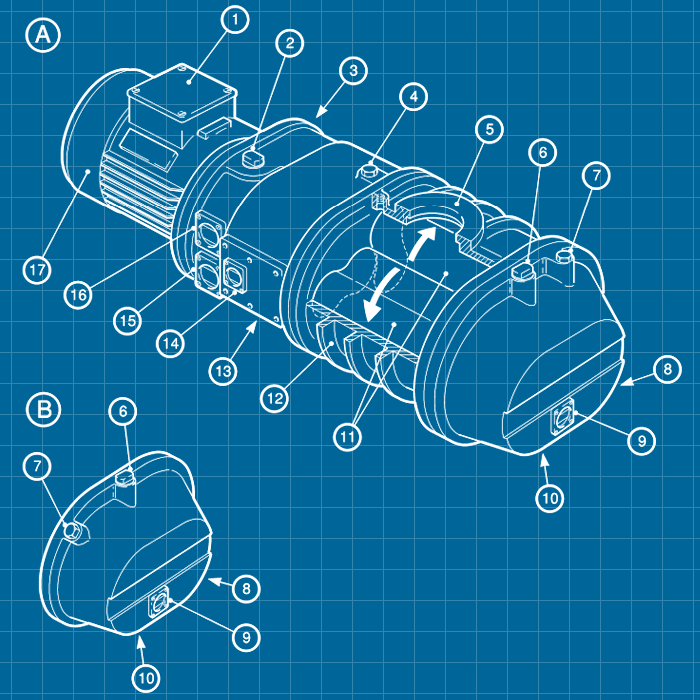

Edwards EH1200 Mechanical Booster Vacuum Pump - NEW
The EH mechanical booster pump, based on the simple Roots principle, remains the favourite pump for applications where high pumping speeds are required for pressures in the region of 0.01 to 10 mbar. This pump must always be backed by another pump, which can deliver against a high-pressure differential to atmospheric pressure.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 1,195 m3h-1 / 715 ft3min-1 |
| 60 Hz | 1,435 m3h-1 / 845 ft3min-1 |
| Effective pumping speed with backing pump | |
| E2M80 | 840 m3h-1 / 495 ft3min-1 |
| E2M175 | 930 m3h-1 / 548 ft3min-1 |
| Pressure differential across pump | |
| 50 Hz | 90 mbar / 68 Torr |
| 60 Hz | 75 mbar / 56 Torr |

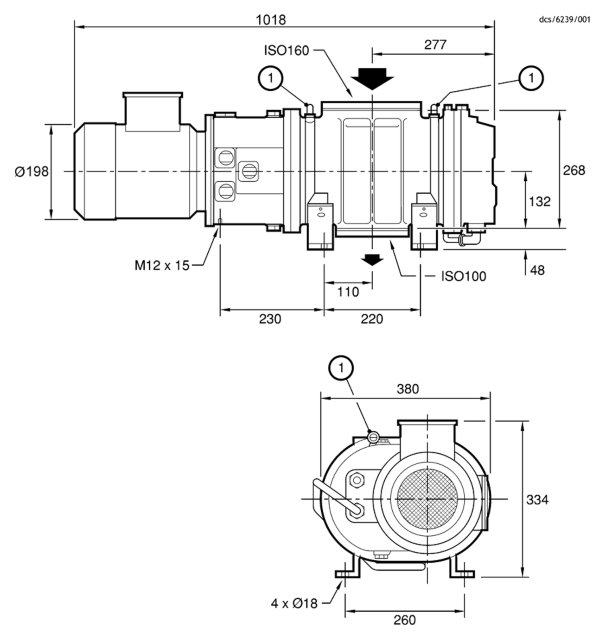

| Inlet connection | ISO160 |
| Outlet connection | ISO100 |
| Rotating speed | |
| 50 Hz | 2,900 rpm |
| 60 Hz | 3,500 rpm |
| Operating continuous inlet pressure | 1,000 mbar / 760 Torr |
| Maximum outlet pressure | 1,000 mbar / 760 Torr |
| Recommended backing pumps | GXS160, GXS250, E2M80, E2M175, E2M275, ES200, ES300, ES630, 212J, 412J, IDX1000, IDX1300 |
| Motor power | |
| Hydrocarbon | 3 kW / 4 hp |
| PFPE | 3 kW / 4 hp |
| ATEX | 3 kW |
| Explosion proof | 4 hp |
| Ambient temp. range | |
| Operating | 5 to 40°C / 40 to 104°F |
| Storage | -20 to 80°C / 14 to 176°F |
| Max. operating humidity | 90% RH |
| Recommended oil | |
| Standard version | Ultragrade 20 |
| PFPE version | Fomblin YVAC 16/6 |
| Oil capacity | |
| Coupling cover | 1.25 l |
| Shaft seal reservoir | 0.125 l |
| Weight | 149 kg /328 lb |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards EH Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards EH1200 Mechanical Booster Vacuum Pump - NEW A30556982 / A305-56-982 EH1200C 230/460V 3-phase 60Hz 4 hp A30557900 / A305-57-900 EH1200T4 380-415V 3-phase 50Hz 3kW A30505934 / A305-05-934 EH1200HC IE3 Asia 50Hz 200V A30505945 / A305-05-945 EH1200HC IE3 EU/CN 50Hz 380-400V A30506934 / A305-06-934 EH1200HC IE3 Asia 60Hz 200V, 380V A30506946 / A305-06-946 EH1200HC IE3 US 60Hz 230/460V A30507934 / A305-07-934 EH1200FX IE3 Asia 50Hz 200V A30507945 / A305-07-945 EH1200FX IE3 EU/CN 50Hz 380-400V A30508934 / A305-08-934 EH1200FX IE3 Asia 60Hz 200V, 380V A30508946 / A305-08-946 EH1200FX IE3 US 60Hz 230/460V Atlas Copco ZRS1200 3-phase 230/460V 60Hz
