Edwards STP-1003C - REBUILT
Call for Price
In stock
SKU
REBUILT_STP1003C
| Weight | 68.34 lbs |
|---|---|
| Pumping Speed | 1,000 l/s |
| Ultimate Pressure | 5 x 10-8 torr |

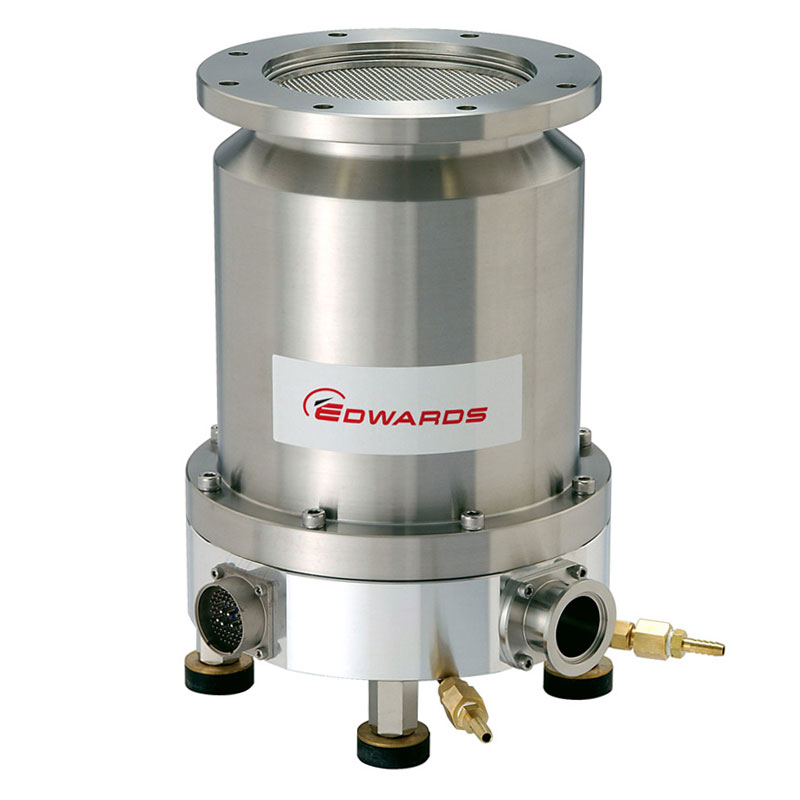

Edwards Seiko Seiki STP-1003C Turbomolecular Vacuum Pump - REBUILT

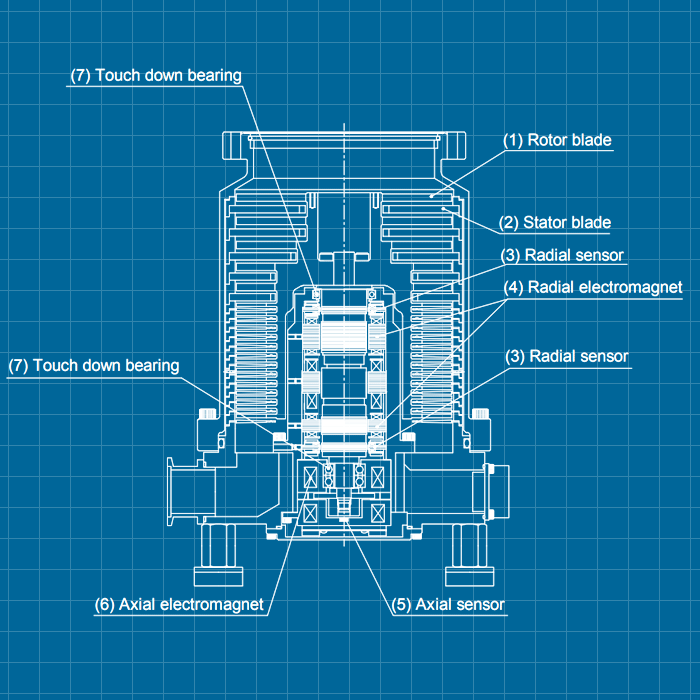

An STP pump can be installed in any orientation and operate by remote control. If any rotor imbalance occurs (by deposition of process by-products, for example) sensors detect changes in its motion and compensate the magnetic fields accordingly. There are backup precision mechanical bearings to protect the pump in the event of a total disruption of magnetic suspension or a sudden massive air inrush that overcomes the magnetic bearing stiffness.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | ISO200F |
| Outlet port | KF40 |
| Purge port | KF10 |
| Pumping Speed | |
| N2 | 1000 l/s |
| H2 | 800 l/s |
| Compression ratio | |
| N2 | >108 |
| H2 | 105 |
| Ultimate pressure with bake out heating (VG/ISO flange) | 6.5x10-6 Pa (5x10-8 Torr) |
| Ultimate pressure with bake out heating (ICF flange) | 10-7 Pa (10-9 Torr) |
| Max continuous outlet pressure | 13 Pa |
| (0.1 Torr) | |
| Rated speed | 35000 rpm |
| Starting time | 6 min |
| Max inlet flange temp | 120 °C |
| Input voltage | 100 to 120 (± 10) V a.c. or |
| to 240 (± 10) V a.c. | |
| Power consumption at Start up | 0.8 kVA |
| Pump weight | 31 kg |
| Controller weight | 9 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards STP Series | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Seiko Seiki STP-1003C Turbomolecular Vacuum Pump - REBUILT STP1003C ISO200F Inlet YT39B0130 STP1003 ISO200F Inlet YT390Z001 STP1003C DN200CF Inlet PT39AZ003 STP1003 DN200CF Inlet YT39B0010
