Edwards STP-iXA4506C - NEW
Call for Price
In stock
SKU
NEW_STPiXA4506C
| Weight | 244 lbs |
|---|---|
| Pumping Speed | 2,700-4,300 l/s |
| Ultimate Pressure | 1 x 10-9 Torr |

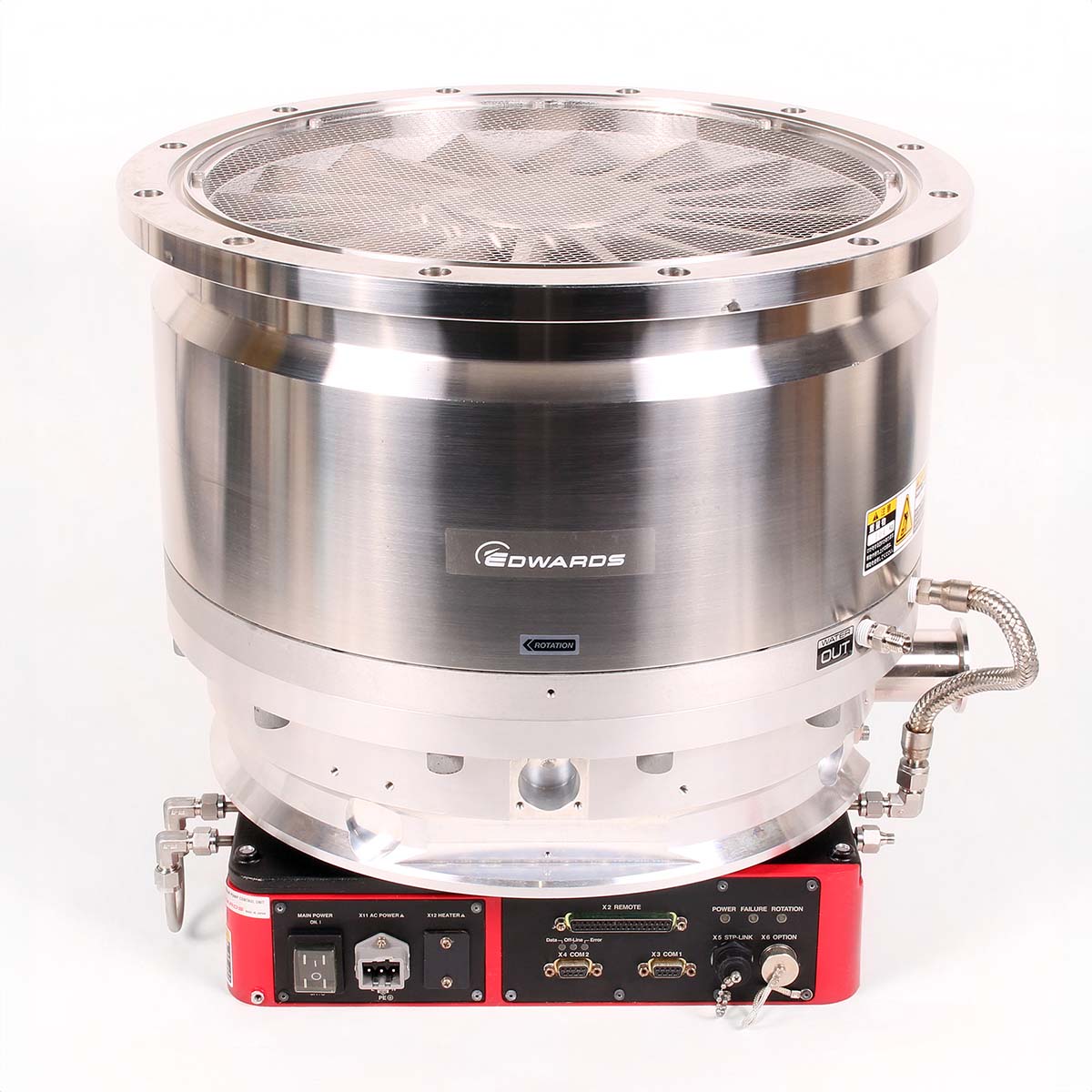

Edwards STP-iXA4506C Turbomolecular Vacuum Pump - NEW
Edwards STP-iXA4506 series magnetically levitated turbomolecular pump (TMP) uses state-of-the-art technology to provide industry-leading performance, improved gas flow capability and high temperature management for today’s challenging applications.
- The fully integrated controller and power supply eliminates the need for cables and a separate
- controller rack, resulting in a cost effective, compact TMP package that is fast and easy to install in a small footprint.
- Maximum continuous flow capability of 4,300 sccm (N2), achieving a performance increase of more than 50%, when compared to STP-XA4503.
- The pump will operate efficiently with cooling water supply up to 35°C.
- Temperature Management System (TMS) unit is available for processes generating by-products.
- I/O Remote, RS232C, RS485, STP-Link are standard ports.
- UL marked, CE marked, SEMI-S2 and RoHS compliant.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Outlet port flange | KF40 | |
| Pumping Speed | ||
| N2/H2 | Litres/second | |
| VG300 | 3,800/2,700 | |
| ISO320F | 4,000/2,700 | |
| VG350 | 4,300/2,700 | |
| VG400 | 4,300/2,700 | |
| Compression ratio N2/H2 | >108 / 103 | |
| Ultimate pressure | Pa (Torr) | 10-7(10-9) |
| Allowable backing pressure | Pa (Torr) | 266(2) |
| Max gas flow N2 *1 | 4300 | |
| (water cooled only) | (Pa m3/sec) | (7.26) |
| Max gas flow Ar *1 | 2600 | |
| (water cooled only) | (Pa m3/sec) | (4.39) |
| Rated Speed | rpm | 24,240 |
| Starting time | minutes | 11 |
| Mounting position | Any orientation | |
| Input voltage | V | 200-240 |
| Maximum input power | ||
| without TMS | VA | 1,700 |
| with TMS | VA | 2,200 |
| Weight | kg | |
| VG300 | 109 | |
| ISO320F | 111 | |
| VG350 | 104 | |
| VG400 | 111 |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards STP-iXA4506C Turbomolecular Vacuum Pump - NEW
P/N YT78-0Z-010 / YT780Z010 STP-iXA4506C ISO-320F
P/N YT78-0Z-000 / YT780Z000 STP-iXA4506C VG-300
P/N YT78-0Z-020 / YT780Z020 STP-iXA4506C VG-350
YT78-0Z-030 / YT780Z030 STP-iXA4506C VG-400
YT78-0Z-050 / YT780Z050 STP-iXA4506C ISO-320F Profibus
YT78-0Z-040 / YT780Z040 STP-iXA4506C VG-300 Profibus
YT78-0Z-060 / YT780Z060 STP-iXA4506C VG-350 Profibus
YT78-10-010 / YT7810010 STP-iXA4506CV ISO-320F TMS
YT78-10-000 / YT7810000 STP-iXA4506CV VG-300 TMS
YT78-10-020 / YT7810020 STP-iXA4506CV VG-350 TMS
YT78-10-030 / YT7810030 STP-iXA4506CV VG-400 TMS
