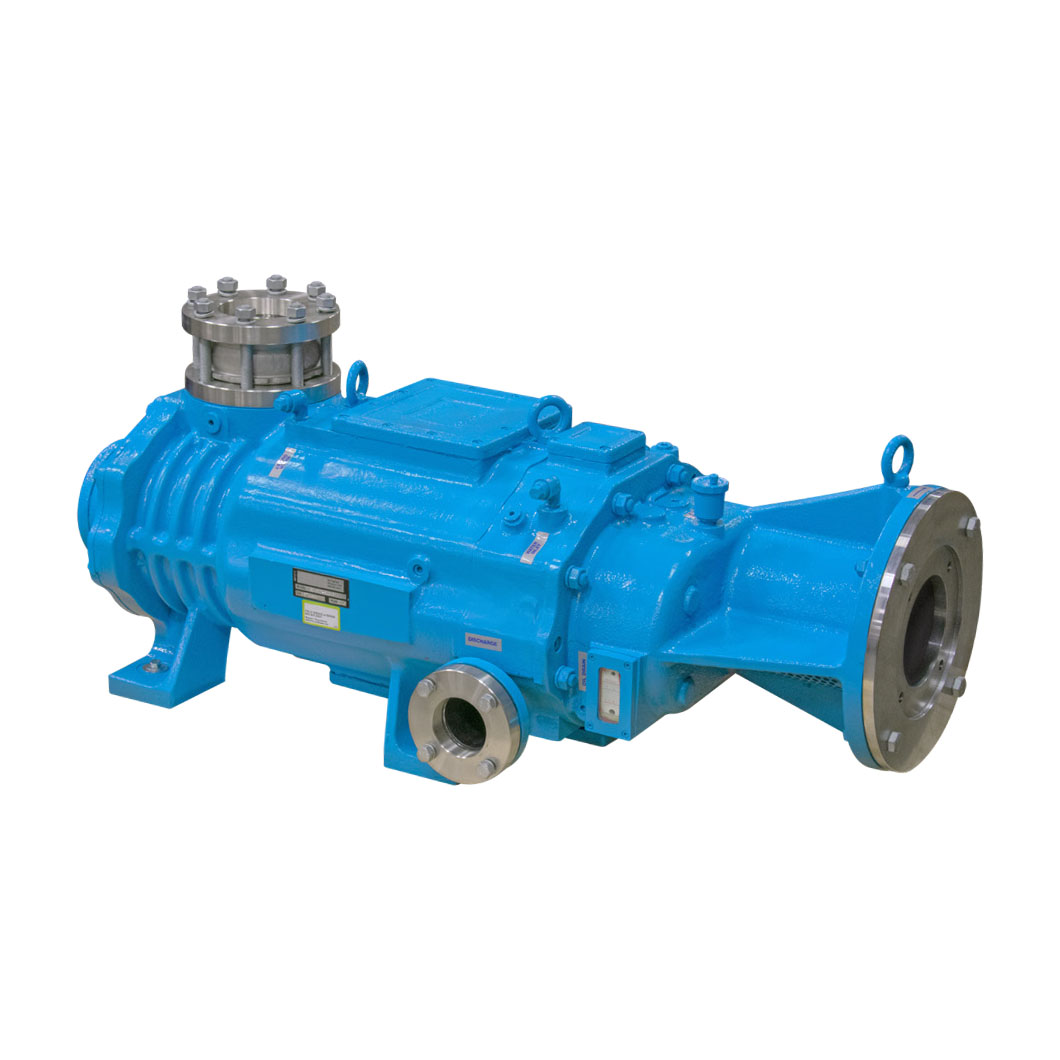

Kinney SDV-800 - SERVICE
Call for Price
Consumable parts vary with model type. Pricing is determined by model configuration, oil type and hard parts damage.
Kinney SDV-800 - Scope of Work
PTB Sales will perform the following:
1. Incoming Inspection
- Attach work order to pump
- Picture taken of mechanical configuration
2. Receipt & Inspection
- Complete decontamination of internal and external parts
- Hazardous materials disposed in accordance with environmental regulations
- Insulation resistance and coil resistance Motor Test
3. All parts are inspected and cleaned
- High pressure parts washer
- Corncobb blaster
- Glass blaster
4. Cooling System
- Radial fan cleaned, inspected and rotational speed verified
5. Parts are dimensionally evaluated and verified
6. Rebuild
- Oil Filter replaced
- Oil Cooler cleaned/inspected
- Gas Ballast and filter cleaned/inspected
- Diagnostic check of motor
- Replace left- and right-hand rotor (screw) bearings
- Replace left- and right-hand shaft seals
- All O-rings replaced
- Fill the gear chamber with oil
7. Final Test
- Verify AC configuration
- Connect water lines if required
- Leak check to 1 x 10-7 cc/ per second
- Final test – (Verify ultimate pressure and current) with the gas ballast ON/OFF
- Recheck oil level after 1 hour of operation
8. Packaging & Shipping
- Paint pump
- Apply all safety and startup labels
- Test reported completed
- QC report created
- Package pump and ship
Exceptional customer service and engineering support. Fast turnarounds. Low prices.
PTB Sales is the national leader in MD-Kinney dry pump repairs.
Our state of the art 27,853 sq ft remanufacturing facility conforms to ISO 9001 quality standards, and is supported by an engineering team with over 90 years combined experience in vacuum technology. Our pump technicians, led by a factory-trained mechanic, have over 100 years combined experience.
Look no further. Let PTB Sales support your success.
Request an RMA Return Material Authorization
Procedures for shipping used equipment to PTB Sales:
- Seal off the exhaust and inlet of the pump.
- Attach our pump declaration form to the equipment to declare what contaminants the equipment has been exposed to.
There is a $300 Evaluation Fee. This gets applied to the cost of repair.
Questions? Please call our toll free number at 866-332-0500 or send an e-mail to our sales team!
