Leybold DRYVAC DV 300 - NEW
Call for Price
| Weight | 815 lbs |
|---|---|
| Motor Power | 10.05 hp |
| Pumping Speed | 165 cfm |
| Ultimate Pressure | 1 x 10-2 mbar |
Leybold DRYVAC DV 300 Dry Vacuum Pump - NEW
The DRYVAC is a family of dry compressing vacuum pumps. Depending on the application the pumps are available with various equipment components. The DRYVAC series specially is developed for photovoltaic, display and process industry applications. All versions of the DRYVAC family are water cooled, very compact and can simply be mounted to various vacuum systems, so particularly with regard to the well-proven RUVAC WH, WS and WA series.
-
Hermetically sealed screw vacuum pump with integrated frequency converter
-
Simple mechanical and electrical integration
-
Integrated protection functions of temperature, exhaust pressure and power consumption monitoring
-
Small footprint due to compact design
-
Low energy consumption achieved through optimized rotor geometry and innovative motor design with efficiency class IE3
-
Tolerant to dust ingress
-
Excellent condensable gas (water vapor) performance
-
High pumping speed also at high intake pressures
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Max. pumping speed | 280 m3/h 165 cfm |
| Ultimate pressure (w/o gas ballast) | 0.01 mbar 0.008 Torr |
| Permissible ambient temperature | 5 to 50 °C |
| Noise level with silencer at ultimate pressure |
65 dB(A) |
| Relative ambient atmospheric humidity | 90%, non-condensing |
| Max. installation height | Up to 2000 m above sea level |
| Cooling | Water |
| Cooling water temperature range | 5 to 35 °C |
| Cooling water nominal flow | 8 l/min |
| Mains voltage 50/60 Hz | 200-240 V ±10% or 380-460 V ±10% |
| Rated power 50/60 Hz | 7.5 kW |
| Power consumption at ultimate pressure | 4.5 kW |
| Bearing lubricant | LVO 210 synthetic oil |
| Protection class | IP54 |
| Intake connection | DN 63 ISO-K |
| Discharge flange | DN 40 ISO-KF |
| Weight, approx. | 370 kg |

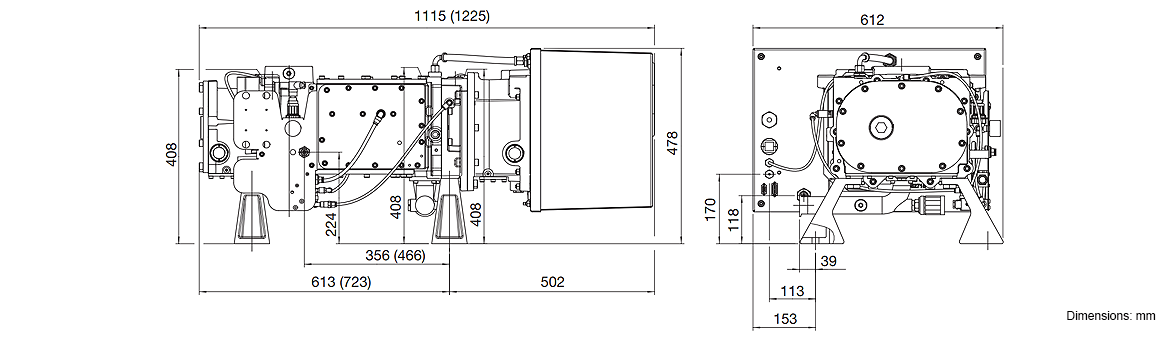

| Dimensions (W x H x D) | 1110 mm x 613 mm x 478 mm |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Dry Compressing Vacuum Pumps - NEW | Excerpt / Catalog Part | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
