Leybold DRYVAC DV 450 - REBUILT
Weight
1,367 lbs
Motor Power
17.4 hp
Pumping Speed
450 m3 /h
Ultimate Pressure
5 x 10-3 mbar

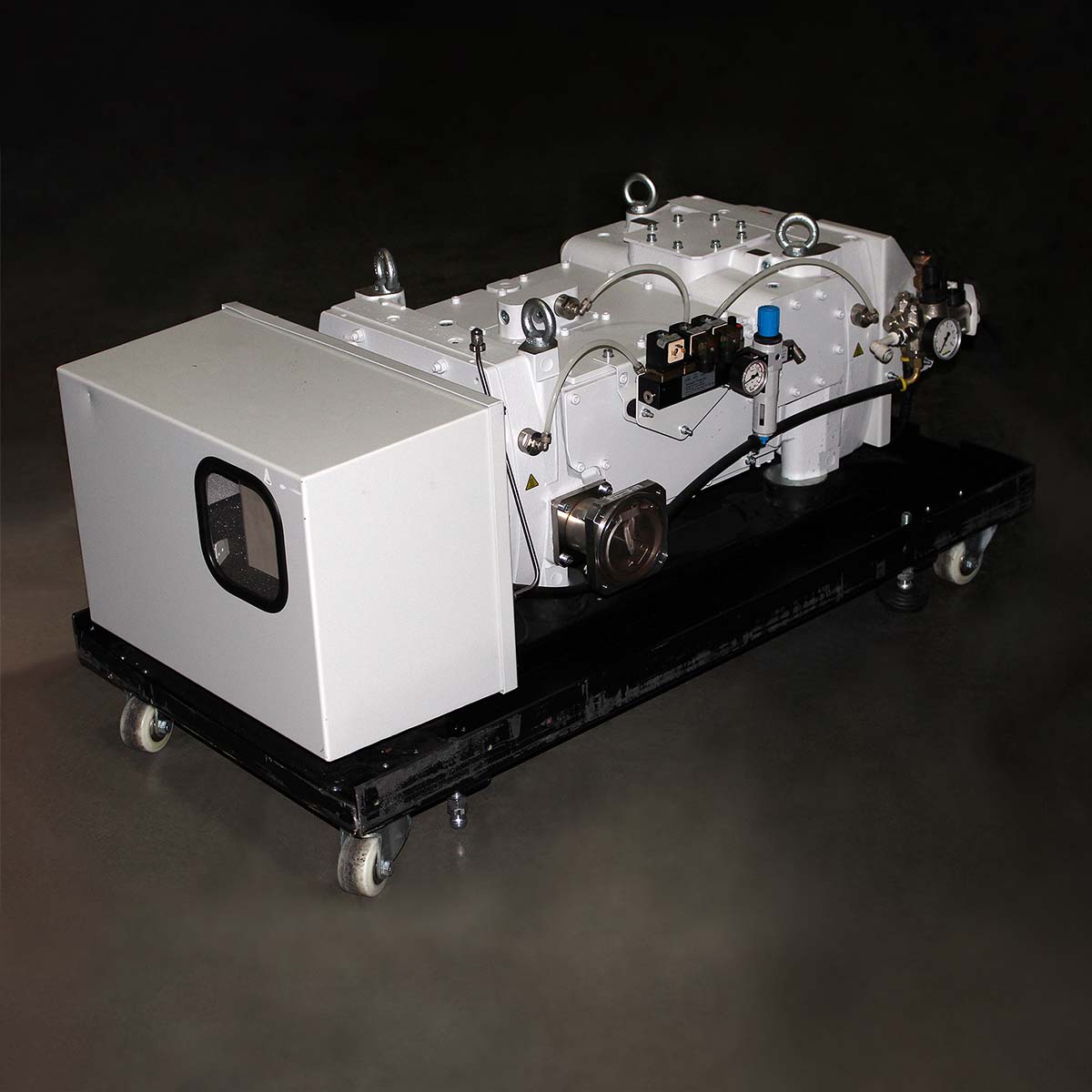

Leybold DRYVAC DV 450 Dry Vacuum Pump - REBUILT
The DRYVAC is a new family or dry compressing vacuum pumps. Depending on the application the pumps are available with various equipment components. The DRYVAC series specially is developed for photovoltaic, display and process industry applications. All versions of the DRYVAC family are water cooled, very compact and can simply be mounted to various vacuum systems, so particularly with regard to the well-proven RUVAC WH, WS and WA series.
Questions? send an email to our sales team!
Inlet Connection
DN 100 ISO-K
Outlet Connection
DN 63 ISO-K
Max Pumping Speed
450 m3 /h
Ultimate total pressure w/o gas ballast
5.0 x 10-3 mbar / 3.8 x 10-3 Torr
Ultimate total pressure w/ gas ballast
5.0 x 10-2 mbar / 3.8 x 10-2 Torr
Water Vapor Tolerance
≥ 60.0 mbar / ≥ 45.0 Torr
Water Vapor Capacity
15.0 kg/h
Operating fluid gear box
Leybonol LVO 120
Operating Fluid Capacity
1.2 l
Noise Level with silencer
67 db(A)
Noise Level with exhaust pipe
65 db(A)
Cooling water consumption
360 l/h
Permissable cooling water pressure
3 - 7 bar
Permissable cooling water temperature
+5 to +35°C
Cooling water consumption
G 1/2", inside thread
Mains connection
3-ph, 380-480V, 50/60 Hz
Motor Rating
13.0 kW / 17.4 hp
Power consumption at ultimate pressure
≤ 5.3 kW / ≤ 7.1 hp
Motor protection rating
IP 54
Admissible ambient temperature
+5 to +50°C
Weight
620 kg / 1367 lbs
Specifications
Type
Label
Description
Download
Leybold DRYVAC DV Series - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold DRYVAC DV 450 Dry Vacuum Pump - REBUILT
Part no. 112045V15-1
Pumping speed: 450 m3 /h
Ultimate pressure: ≤ 5 x 10-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 210
Part no. 112045V20-1
Pumping speed: 450 m3 /h
Ultimate pressure: ≤ 5 x 10-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410
Part no. <b>112045V30-1</b>
Pumping speed: 450 m3 /h
Ultimate pressure: ≤ 5 x 10-3 mbar
Operation with int. frequency converter: 380-480 V, 50/60 Hz
Operating fluid: LEYBONOL LVO 410
