Leybold RUVAC WH / WHU 7000 - NEW
Call for Price
| Weight | 1,578 lbs |
|---|---|
| Motor Power | 24.80 hp |
| Pumping Speed | 7,000 m3/h |
| Ultimate Pressure | 2.25 x 101 mbar |
Leybold RUVAC WH / WHU 7000 Roots Vacuum Blower - NEW
The RUVAC WH and RUVAC WHU are Roots boosters driven by water cooled hermetically sealed motors. The WHU types have a pressure balance line between the discharge and intake flanges. The RUVAC WH and WHU are lubricated with synthetic oil or perfluorized polyether (PFPE). Only specially prepared RUVAC WH / WHU PFPE pumps can be used for pumping oxygen greater than atmospheric concentration. Only RUVAC WH / WHU PFPE pumps can be used for pumping very aggressive or hazardous gasses.
- Inlet connection: DN 320 ISO-K
- Outlet connection: DN 160 ISO-K
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping speed | 7,000 m3 x h-1 |
| Max. permissible pressure difference during continuous operation | 30.0 mbar |
| Nominal motor power | 11/18.5 |
| Mains voltage | 400 / 480 V |
| Protection class | 54 IP |
| Cooling water connections | G 1/4" |
| Cooling water quantity | 180-300 l/h |
| Lubricant quantity | 4.75 l |

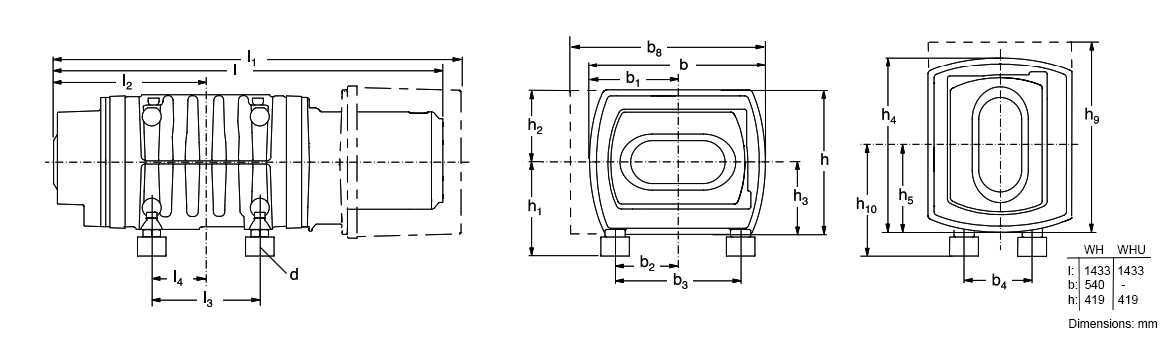

| Connection flanges | DN 320 / 160 ISO-K |
| Weight | 650 / 715 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold RUVAC WH / WHU Series - REBUILT | Instruction Manual | Download |
|
Leybold RUVAC Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs. Please follow the above link, and fill out the quote form.
Leybold RUVAC WH / WHU 7000 Roots Vacuum Blower - NEW 155160 / 155 160 WH 7000 11kW 400-460V 50/60Hz 155160A / 155 160A WH 7000 11kW 400-460V 50/60Hz 155161V / 155 161V WH 7000 11kW 200V 50/60Hz 155162 / 155 162 WHU 7000 18.5kW 400-460V 50/60Hz 155163V / 155 163V WH 7000 18.5kW 400-460V 50/60Hz sealed pistons purge gas 155164V / 155 164V WH 7000 11kW 200-210V 50/60Hz PFPE 155165 / 155 165 WH 7000 11kW 400-460V 50/60Hz PFPE 155167 / 155 167 WH 7000 18.5kW 400-460V 50/60Hz 155169V / 155 169V WH 7000 18.5kW 400-460V 50/60Hz PFPE sealed pistons purge gas
