Leybold SCROLLVAC 15 plus - NEW

Name: Leybold SCROLLVAC 15 plus - NEW
Brand: Leybold
SKU: NEW_15plus

Be the first to review this product

Call for Price

In stock

SKU

NEW_15plus

Request For Quote

Weight	57 lbs
Motor Power	0.4 hp
Pumping Speed	14.5 m³/h
Ultimate Pressure	9 x 10^-3 mbar

Dimensions

Description

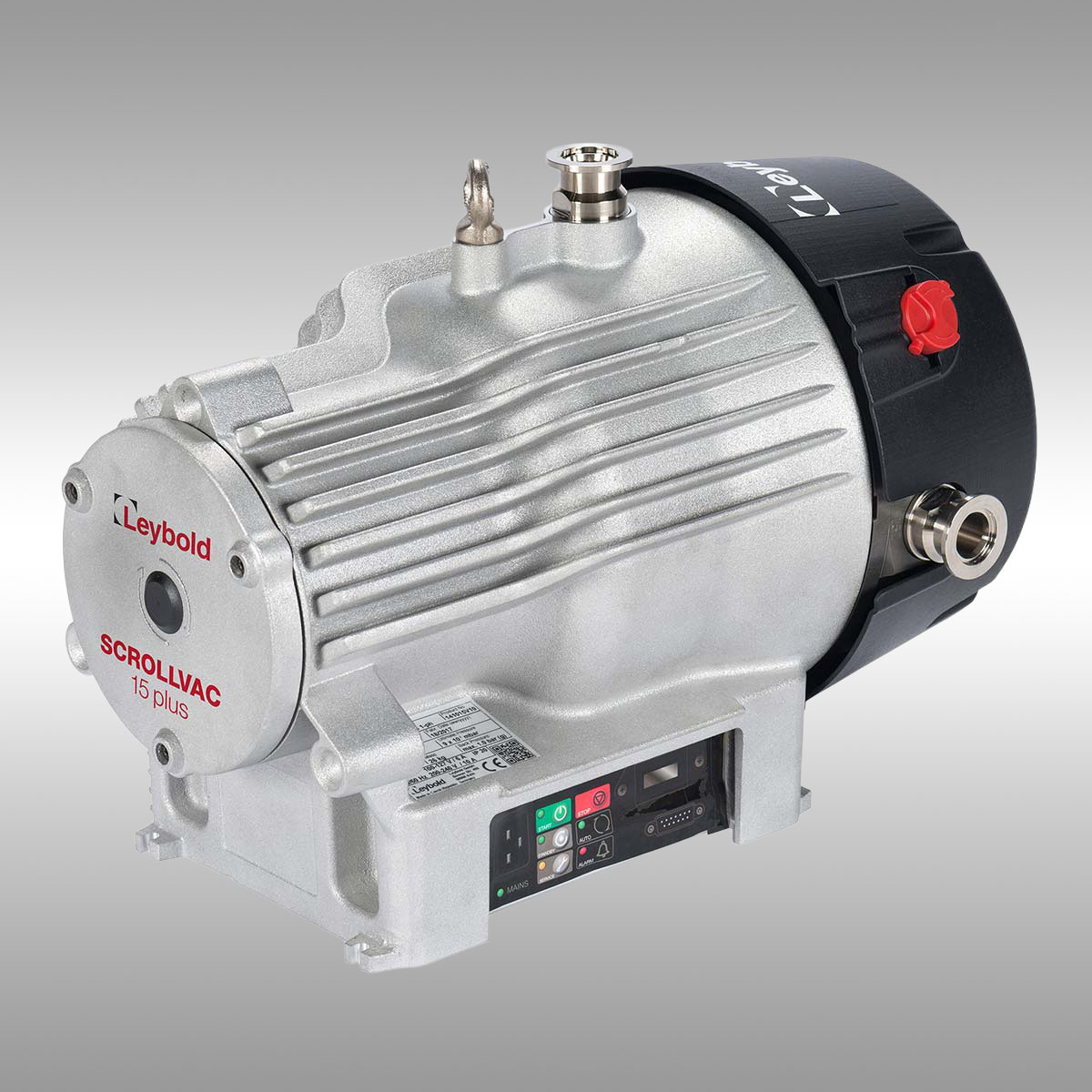

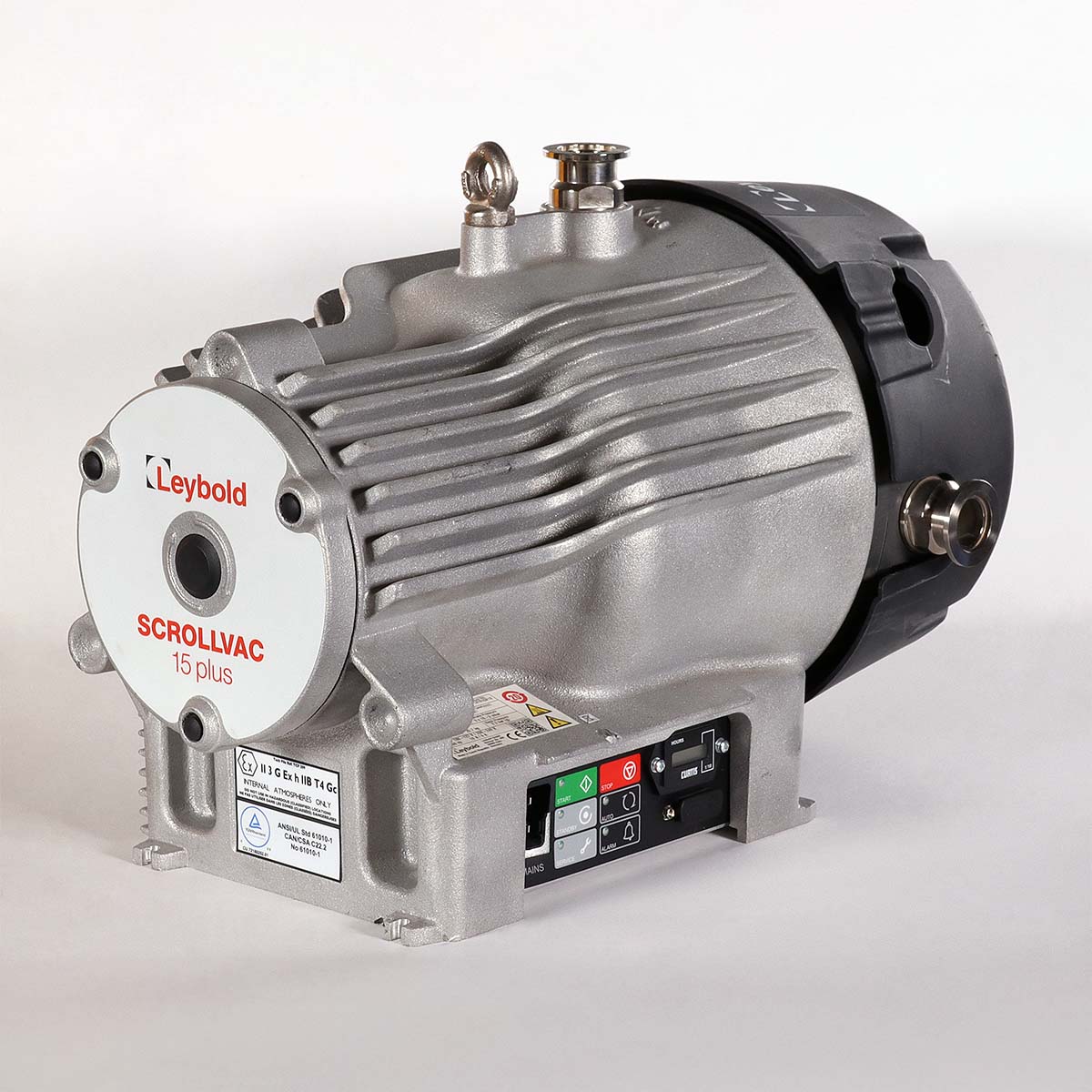

Leybold SCROLLVAC 15 plus Dry Scroll Vacuum Pump - NEW

The dry compressing SCROLLVAC pumps operate on the principle of a scroll compressor. Two or more Archimedes spirals engaging each other. The vacuum is generated by reducing the volume of the pockets and compressing gases from the outside towards the inside thereby pumping the gases. SCROLLVAC pumps operate absolutely oil-free with a high effective pumping speed in the whole range of operation.

Features

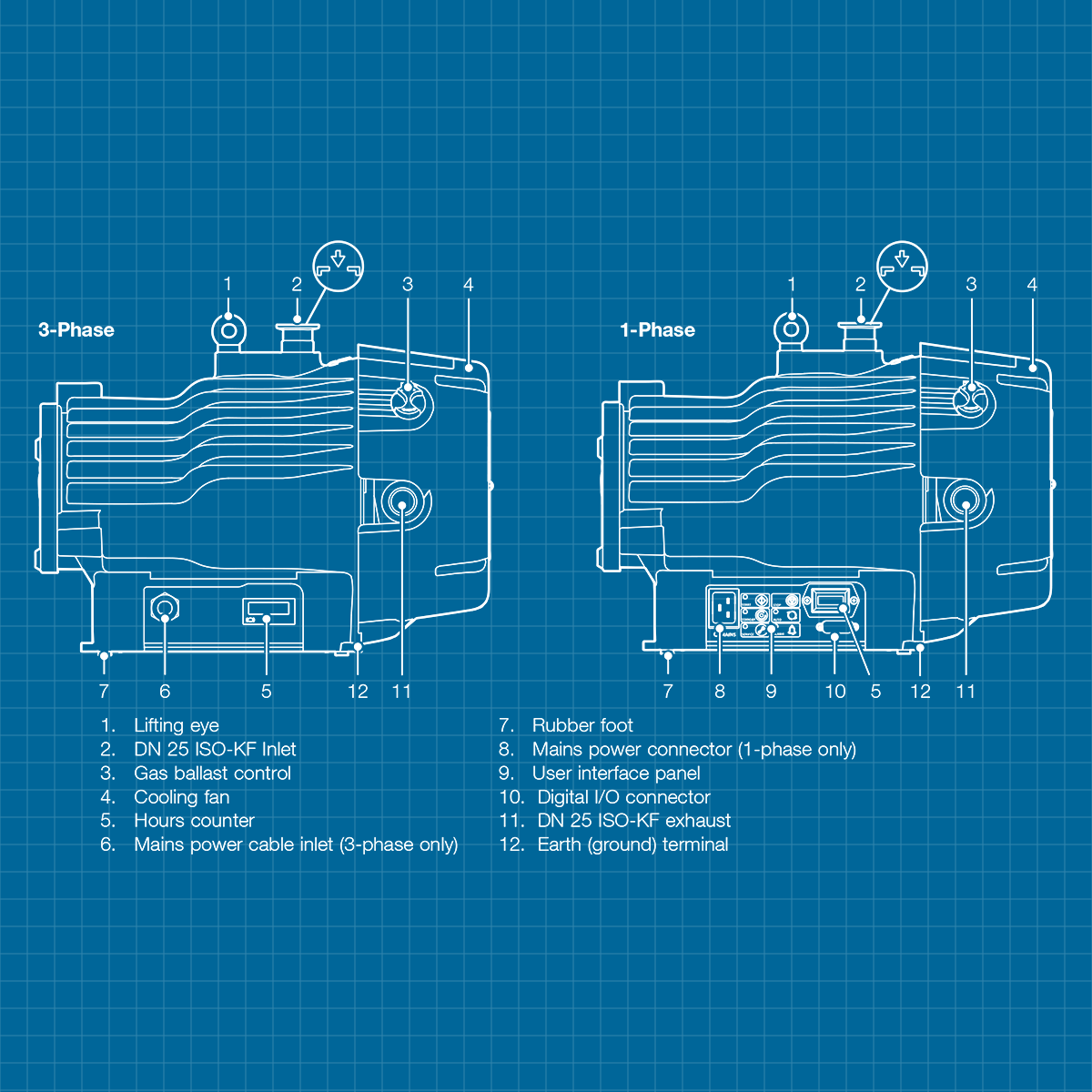

No oil contamination and higher robustness due to hermetic sealing of rotating parts from pumping chamber
Universal voltage supply (100-127 V, 200-240 V) for constant performance everywhere in the world (single-phase version)
DN 25 ISO-KF Inlet / DN 25 ISO-KF exhaust with integrated suckback valve
Control panel for convenient access to pump functions with integrated hours counter and remote control interface (single-phase version
3-phase model available (without integrated frequency converter)

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet/outlet connection	DN 25 ISO-KF
Pumping speed at 50/60 Hz	14.5 m³/h / 8.5 cfm
Ultimate total pressure (w/out gas ballast)	9.0 x 10^-3 mbar / 0.007 Torr
Ultimate total pressure (w/ gas ballast)	4.0 x 10^-2 mbar / 0.03 Torr
Max. water vapor tolerance (w/ gas ballast)	26 mbar / 19.5 Torr
Max. water vapor capacity (w/ gas ballast)	280 g/h
Noise level acc. to DIN 45 635 (w/out gas ballast)	55 ± 2.5 dB(A)
Leak rate	1.0 x 10^-6 mbar l/s
Mains voltage	1-phase, 100-127, 200-240 V (+/- 10%), 50/60 Hz 3-phase, 200/380-415, 200-230/460, 50/60 Hz
Mains connection	IEC 60320 C20
Power consumption at ultimate pressure	300 W
Rotation speed at 50/60 Hz	1,650 min^-1 / 1,650 rpm
Protection rating	IP 42
Admissible ambient temperature	+5 to +40°C / 41 to 104°F

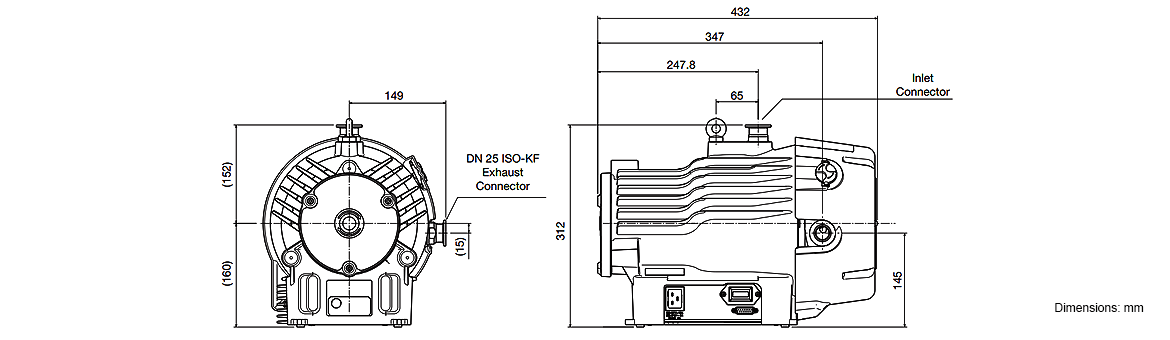

Dimensions	430 x 282 x 325 mm / 16.9 x 11.1 x 12.8 inches
Weight	26 kg / 57 lbs

Specs

Digital Manuals

Type	Label	Description	Download
	Leybold Dry Compressing Vacuum Pumps - NEW	Excerpt / Catalog Part	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SCROLLVAC 15 plus Dry Scroll Vacuum Pump - NEW

Part no. 141015V10
Standard version, single-phase motor w/ gas ballast

Part no. 141015V12
C version for aggressive applications, 1-phase motor w/ gas ballast

Part no. 141015V30
Standard version, 3-phase motor w/ gas ballast

Part no. 141015V32
C version for aggressive applications, 3-phase motor w/ gas ballast

Mains cables
Part no. 161 810 US (115 V) - NEMA 5-15P - IEC-60320 C19, 2 m length
Part no. 141 103 US (230 V) - NEMA 6-15P - IEC-60320 C19, 2.5 m length
