Leybold SOGEVAC NEO D 65 - NEW
| Weight | 211.7 lbs |
|---|---|
| Motor Power | 2.7 hp |
| Pumping Speed | 74 m3/h |
| Ultimate Pressure | < 8 x 10-3 mbar |
Leybold SOGEVAC NEO D 65 Rotary Vane Vacuum Pump - NEW
The NEW generation of SOGEVAC vacuum pumps. Triple-hitting vacuum technology for a cleaner, quieter, longer-running performance.
Pairing health and safety with efficient processes is a vital need for any workplace, from research labs to industrial manufacturers. When processes rely on continuous vacuum, choosing the right components becomes all the more essential. Reliable, high-performance vacuum technology not only gets the job done, but also contributes to a better work environment with less noise and fewer emissions. The result is greater well-being and peace of mind – for higher employee productivity and precision in demanding applications. When it comes to these universal challenges, the new SOGEVAC NEO D rotary vane vacuum pump offers a bundle of advantages. But most of all, it is cleaner, quieter and virtually maintenance-free.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| SOGEVAC NEO D | 16 | 25 | 40 | 65 |
|---|---|---|---|---|
| Inlet / outlet connection | DN 25 ISO-KF | DN 40 ISO-KF | ||
| Rated pumping speed 50 Hz | 19 m3h | 24 m3h | 40 m3h | 63 m3h |
| Rated pumping speed 60 Hz | 23 m3h | 29 m3h | 48 m3h | 76 m3h |
| Nominal pumping speed 50 Hz | 16 m3h | 28 m3h | 47 m3h | 74 m3h |
| Nominal pumping speed 60 Hz | 19 m3h | 34 m3h | 56 m3h | 89 m3h |
| Ultimate partial pressure w/out gas ballast | ≤ 8 x 10-3 mbar | |||
| Ultimate total pressure w/ gas ballast | ≤ 1 x 10-1 mbar | |||
| Water vapor tolerance | 10 mbar | |||
| Oil volume | 1.5 liters | 3 liters | ||
| Noise level | 54 dB(A) | 57 dB(A) | ||
| Weight | 49 kg / 108 lbs | 50 kg / 110 lbs | 80 kg / 176 lbs | 96 kg / 211 lbs |

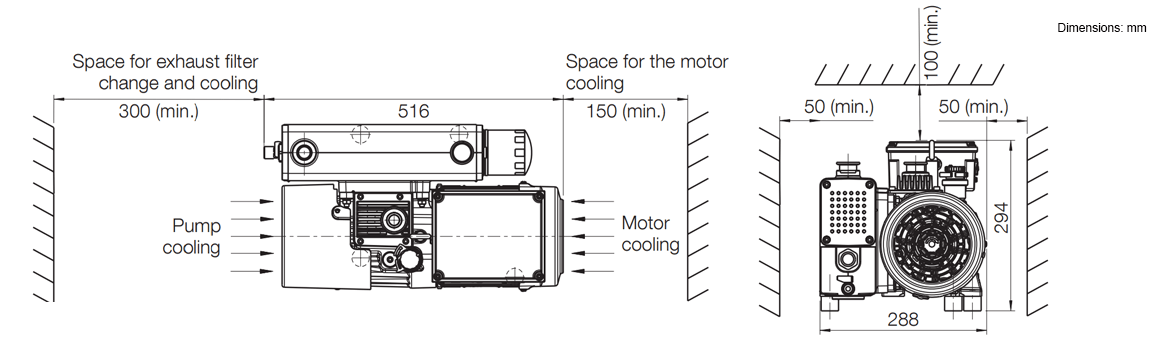

| Dimensions L x W x H | 516 x 288 x 294 mm | 632 x 356 x 320 mm | 669 x 359 x 320 mm | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Oil Sealed - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC NEO D 65 Rotary Vane Vacuum Pump - NEW 970402V three-phase 180-264V 342-457V 50Hz / 180-264V 342-506V 60Hz 970401V 1-phase 180-264V 50/60Hz Operating fluid: LEYBONOL LVO 700
-

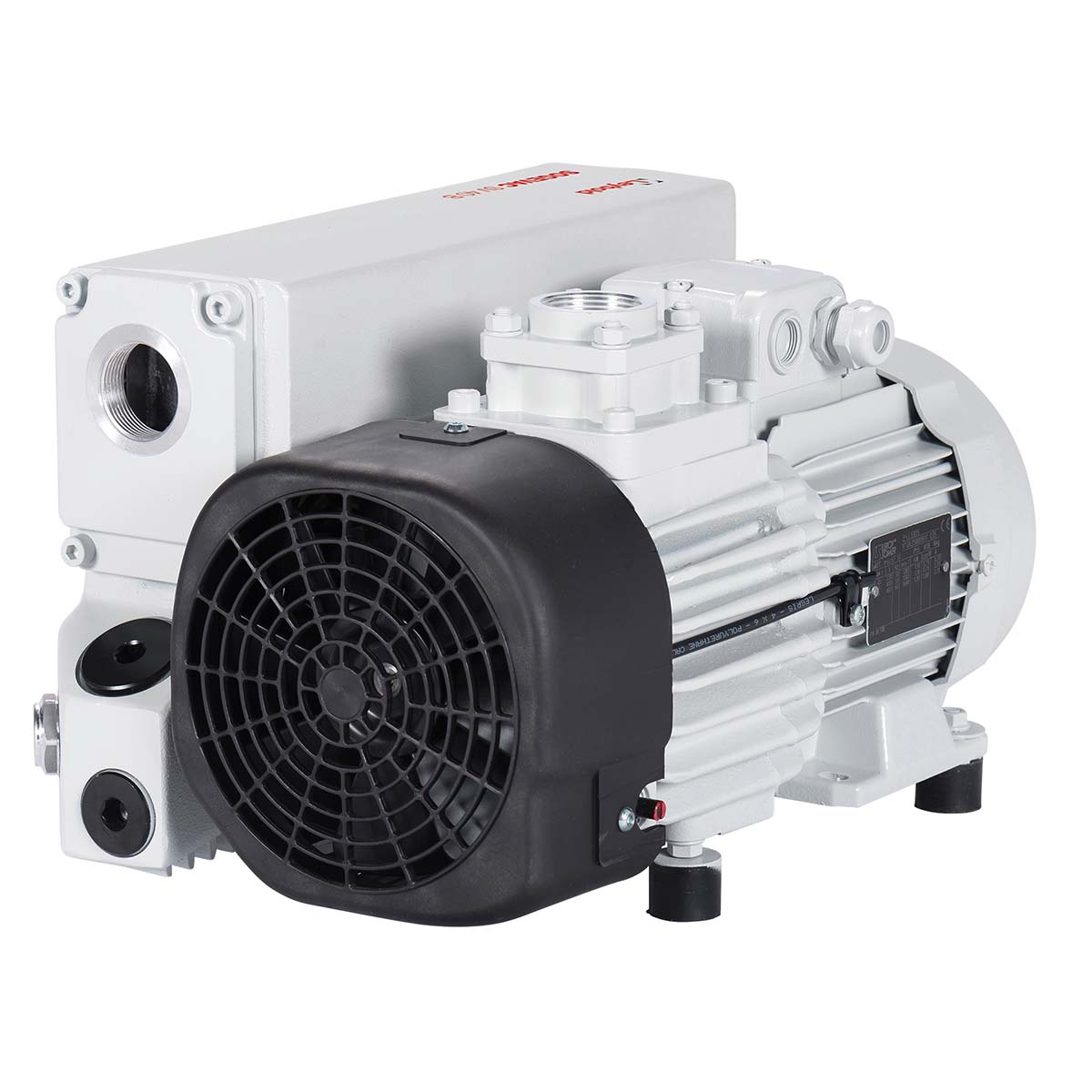

Leybold SOGEVAC SV 65 B - NEWCall for Price
-

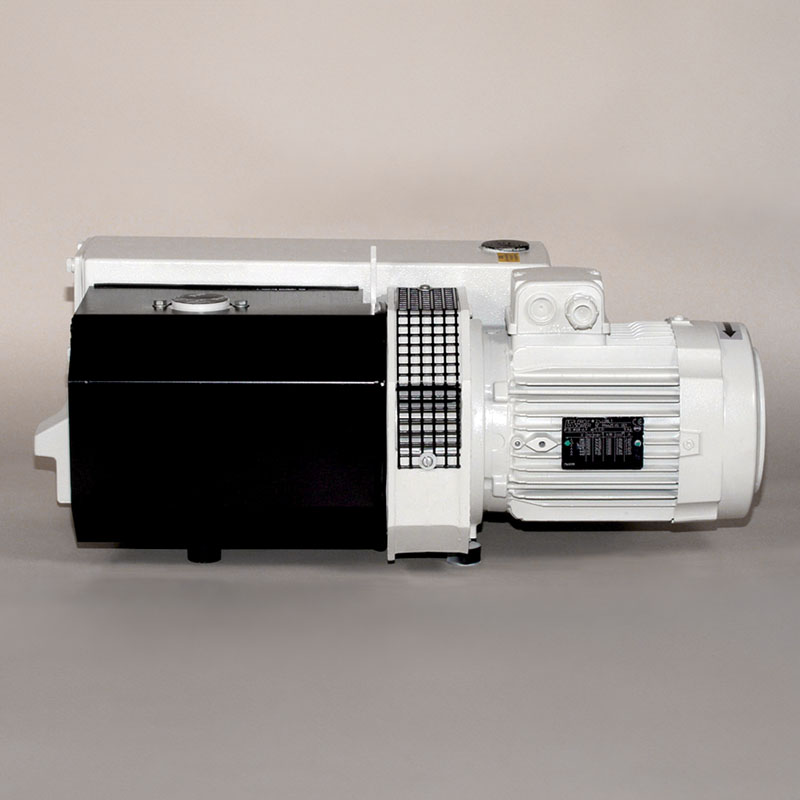

Leybold SOGEVAC SV65 - REBUILTCall for Price
-

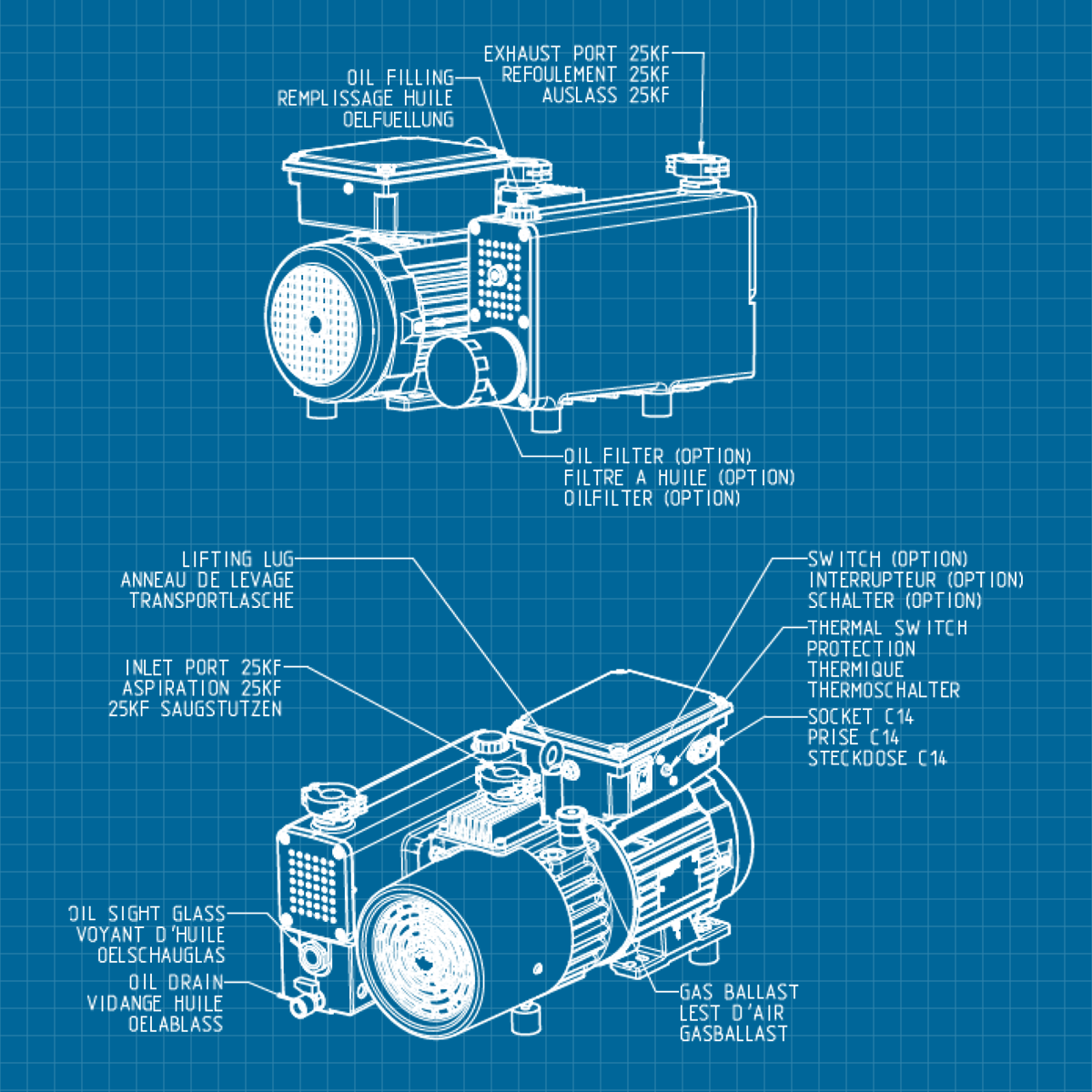

Leybold NEO D 65 - SERVICECall for Price
