Leybold SOGEVAC SV 300 B - NEW

Name: Leybold SOGEVAC SV 300 B - NEW
Brand: Leybold
SKU: NEW_SV300B

Be the first to review this product

Call for Price

In stock

Only %1 left

SKU

NEW_SV300B

Request For Quote

Weight	491.5 lbs
Motor Power	7.5 hp
Pumping Speed	240 m³/h
Ultimate Pressure	≤ 8 x 10^-2 mbar

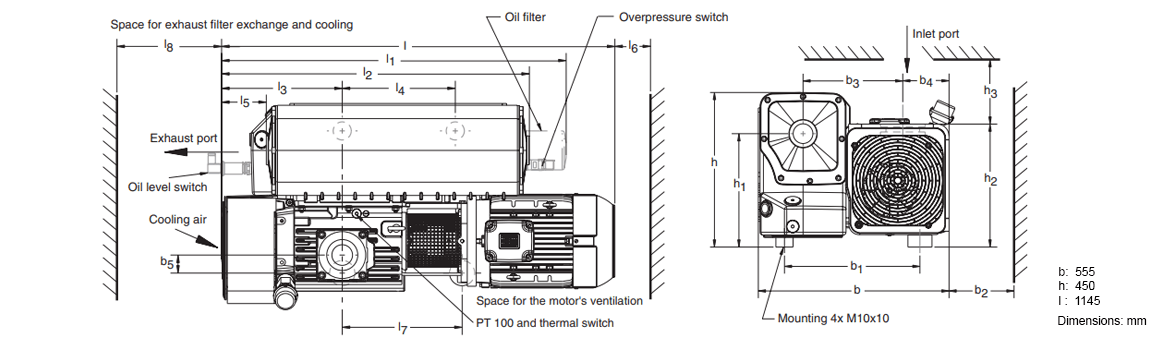

Dimensions

Description

Leybold SOGEVAC SV 300 B Rotary Vane Vacuum Pump - NEW

The new SOGEVAC range of rotary vane vacuum pumps is setting new standards and offers following major characteristics:

Pumping speed (50 Hz): 240 m³/h
Pumping speed (60 Hz): 290 m³/h
Ultimate pressure: 0.08 mbar
Compact design and small footprint
Very low and constant noise level in any working condition
Integrated functions, no external pipe
No motor coupling up to SV 65 B
Variant concept / specific customer configurations
ATEX versions for categories 2 and 3, from SV 40 B to SV 100 B
Simplified maintenance

All this without any concession to the high technical performance of the SOGEVAC pumps such as ultimate pressure, pump-down time, water vapor tolerance…

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal Speed
50 Hz	280 m³ x h^-1
60 Hz	340 m³ x h^-1
Pumping speed
50 Hz	240 m³ x h^-1
60 Hz	290 m³ x h^-1
Ultimate partial pressure w/o gas ballast	≤ 8 x 10^-2 mbar
Ultimate total pressure w/ gas ballast	≤ 0.7 mbar
Water vapor tolerance with standard gas ballast
50 Hz	30 mbar
60 Hz	40 mbar
Water vapour tolerable load with gas ballast
50 Hz	5.4 kg x h^-1
60 Hz	7.4 kg x h^-1
Water vapour tolerance with big gas ballast
50 Hz	60 mbar
60 Hz	70 mbar
Water vapour tolerable load with big gas ballast
50 Hz	10 kg x h^-1
60 Hz	12.5 kg x h^-1
Leak rate	≤ 1 x 10^-3
Noise level	70 dBA
Mains voltage	230/400 V
Motor power	5.5 kW
rated rotational speed	1,450 min^-1
Type of protection	IP 55
Weight	223 kg / 491.5 lbs
Connections
Intake, thread	3/4" G or NPT

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold Oil Sealed - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SOGEVAC SV 300 B Rotary Vane Vacuum Pump - NEW

Part no. 960700 / 960 700
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
Three-phase motor: 230/400V, +/- 10%, 50Hz // 460V, +/- 10%, 60Hz
w/out gas ballast valve - w/ oil filter

Part no. 960701 / 960 701
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 230/400V, +/- 10%, 50Hz // 460V, +/- 10%, 60Hz
w/ small gas ballast valve - w/ oil filter

Part no. 960706 / 960 706
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 208V, +/- 10% / 230/460V, +/- 10%, 60Hz // 400V, +/- 10%, 50Hz
w/ small gas ballast valve - w/ oil filter

Part no. 960711V / 960 711V
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 200V, + 10%, - 15%, 50/60Hz
w/ small gas ballast valve - w/ oil filter

Part no. 960702 / 960 702
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 230/400V, +/- 10%, 50Hz // 460V, +/- 10%, 60Hz
w/ standard gas ballast valve - w/ oil filter

Part no. 960707 / 960 707
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 208V, +/- 10% / 230/460V, +/- 10%, 60Hz // 400V, +/- 10%, 50Hz
w/ standard gas ballast valve - w/ oil filter

Part no. 960712 / 960 712
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 200V, + 10%, - 15%, 50/60Hz
w/ standard gas ballast valve - w/ oil filter

Part no. 960703 / 960 703
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 230/400V, +/- 10%, 50Hz // 460V, +/- 10%, 60Hz
w/ big gas ballast valve - w/ oil filter

Part no. 960708 / 960 708
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 208V, +/- 10% / 230/460V, +/- 10%, 60Hz // 400V, +/- 10%, 50Hz
w/ big gas ballast valve - w/ oil filter

Part no. 960713V / 960 713V
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 200V, + 10%, - 15%, 50/60Hz
w/ big gas ballast valve - w/ oil filter

Part no. 960716V / 960 716V
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 200V, -15%, bis 230V, +10% / 380 - 400V, +/- 10%, 50Hz, CTP, 5,5 KW & 200V, -15%, bis 230V, +10% / 380 - 400V, +/- 10%, 50Hz // 460V, +/- 10%, 60Hz, CTP, 6,6 kW
w/ small gas ballast valve - w/ oil filter

Part no. 960717 / 960 717
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 200V, -15%, bis 230V, +10% / 380 - 400V, +/- 10%, 50Hz, CTP, 5,5 KW & 200V, -15%, bis 230V, +10% / 380 - 400V, +/- 10%, 50Hz // 460V, +/- 10%, 60Hz, CTP, 6,6 kW
w/ standard gas ballast valve - w/ oil filter

Part no. 960718 / 960 718
Pumping speed: 240 m³/h
Ultimate pressure: ≤ 8 x 10^-2 mbar
3-phase motor: 200V, -15%, bis 230V, +10% / 380 - 400V, +/- 10%, 50Hz, CTP, 5,5 KW & 200V, -15%, bis 230V, +10% / 380 - 400V, +/- 10%, 50Hz // 460V, +/- 10%, 60Hz, CTP, 6,6 kW
w/ big gas ballast valve - w/ oil filter

Operating fluid: LEYBONOL LVO 130
