Name: Leybold SOGEVAC SV 65 B - NEW
Brand: Leybold
SKU: NEW_SV65B

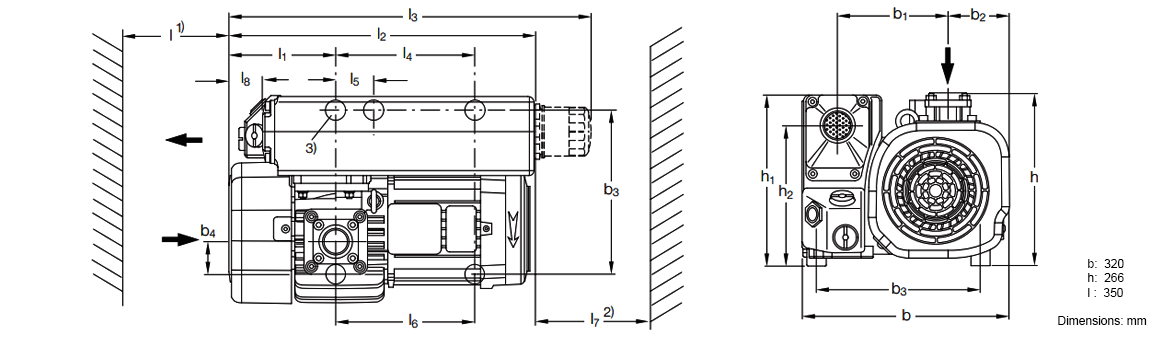

Dimensions

Description

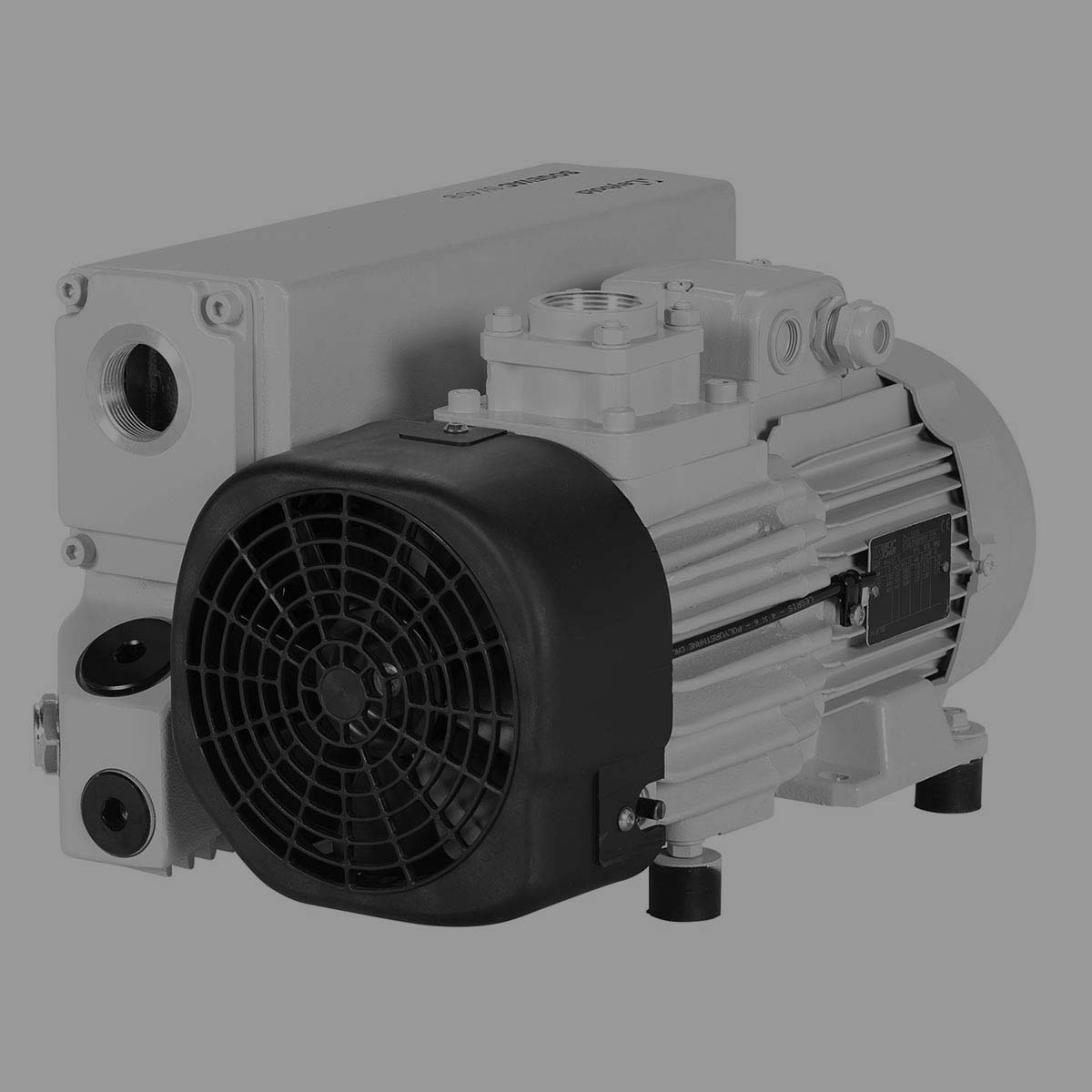

Leybold SOGEVAC SV 65 B Rotary Vane Vacuum Pump - NEW

The new SOGEVAC range of rotary vane vacuum pumps is setting new standards and offers following major characteristics:

Pumping speed (50 Hz): 54 m³/h
Pumping speed (60 Hz): 64 m³/h
Ultimate pressure: 0.5 mbar
Compact design and small footprint
Very low and constant noise level in any working condition
Integrated functions, no external pipe
No motor coupling up to SV 65 B
Variant concept / specific customer configurations
ATEX versions for categories 2 and 3, from SV 40 B to SV 100 B
Simplified maintenance

All this without any concession to the high technical performance of the SOGEVAC pumps such as ultimate pressure, pump-down time, water vapor tolerance…

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal Speed
50 Hz	59 m³ x h^-1
60 Hz	71 m³ x h^-1
Pumping speed
50 Hz	54 m³ x h
60 Hz	64 m³ x h
Ultimate partial pressure w/out gas ballast	≤ 0.5 mbar
Ultimate total pressure w/ small gas ballast	≤ 0.8 mbar
Ultimate total pressure w/ standard gas ballast	≤ 1.5 mbar
Water vapor tolerance
w/ small gas ballast	10 mbar
w/ standard gas ballast	30 mbar
Water vapor capacity
w/ small gas ballast	0.36 kg x h^-1
w/ standard gas ballast	1 kg x h^-1
Noise level	60 dBA
Motor power	1.5 kW
Mains voltage	230/400 V
Protection	IP 55-F
Leak rate	1 x 10^-3 mbar x l/s
Oil type / Capacity	GS77 / 2 l
Intake connection	1^1/4
Exhaust connection	1^1/4

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold Oil Sealed - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SOGEVAC SV 65 B Rotary Vane Vacuum Pump - NEW

Part number:        960400 / 960 400
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960401 / 960 401
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960402 / 960 402
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960403 / 960 403
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960405 / 960 405
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960407 / 960 407
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960417 / 960 417
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960418 / 960 418
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar


Part number:        960419 / 960 419
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960421 / 960 421
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960422 / 960 422
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960423 / 960 423
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part number:        960424 / 960 424
Pumping speed (50 Hz):        54 m³/h
Pumping speed (60 Hz):        64 m³/h
Ultimate pressure:        0.5 mbar

Part no. 960300 / 960 300
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
Three-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/out gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960320 / 960 320
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 210-240/360-420V, 50Hz // 210-260/360-460V, 60Hz
w/out gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960302 / 960 302
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/out gas ballast valve - w/ oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960301 / 960 301
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/ small gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960311 / 960 311
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/460V, 60Hz // 400V, 50Hz
w/ small gas ballast valve - w/out oil filter - w/ NPT- flanges
Operating fluid: LEYBOLD LVO 130

Part no. 960321 / 960 321
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50/60Hz
w/ small gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960316 / 960 316
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 200V, 50/60Hz
w/ small gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 150

Part no. 960303 / 960 303
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/ small gas ballast valve - w/ oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960313 / 960 313
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/460V, 60Hz // 400V, 50Hz
w/ small gas ballast valve - w/ oil filter - w/ NPT- flanges
Operating fluid: LEYBONOL LVO 130

Part no. 960323 / 960 323
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50/60Hz
w/ small gas ballast valve - w/ oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960318 / 960 318
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 200V, 50/60Hz
w/ small gas ballast valve - w/ oil filter
Operating fluid: LEYBONOL LVO 150

Part no. 960305 / 960 305
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/ standard gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960312 / 960 312
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/460V, 60Hz // 400V, 50Hz
w/ standard gas ballast valve - w/out oil filter - w/ NPT- flanges
Operating fluid: LEYBONOL LVO 130

Part no. 960322 / 960 322
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50/60Hz
w/ standard gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960317 / 960 317
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 200V, 50/60Hz
w/ standard gas ballast valve - w/out oil filter
Operating fluid: LEYBONOL LVO 150

Part no. 960307 / 960 307
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50Hz // 460V, 60Hz
w/ standard gas ballast valve - w/ oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960314 / 960 314
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/460V, 60Hz // 400V, 50Hz
w/ standard gas ballast valve - w/ NPT- flanges
Operating fluid: LEYBONOL LVO 130

Part no. 960324 / 960 324
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 230/400V, 50/60Hz
w/ standard gas ballast valve - w/ oil filter
Operating fluid: LEYBONOL LVO 130

Part no. 960319 / 960 319
Pumping speed: 40 m³/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 200V, 50/60Hz
w/ standard gas ballast valve - w/ oil filter
Operating fluid: LEYBONOL LVO 150

Atlas Copco GVS 60A  3-phase 230/380/460V 50/60Hz

Weight	108 lbs
Motor Power	2 hp
Pumping Speed	54 m³/h
Ultimate Pressure	≤ 1 x 10^-1 mbar
