Leybold TRIVAC D 25 B - NEW
Call for Price
In stock
SKU
NEW_D25B
| Weight | 79 lbs |
|---|---|
| Motor Power | 1 hp |
| Pumping Speed | 25.7 m3/h |
| Ultimate Pressure | < 1 x 10-4 mbar |
Leybold TRIVAC D 25 B Rotary Vane Vacuum Pump - NEW

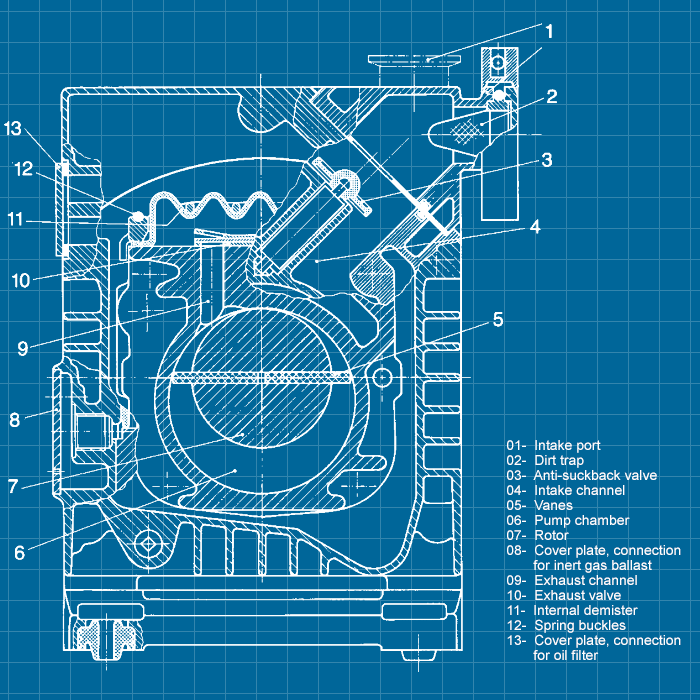

TRIVAC B series pumps are oil sealed vacuum pumps based on the rotary vane principle. The oil injected into the pump chamber is used for sealing, lubrication and cooling purposes. The body of the pump is made of separate components with no additional sealing elements. The components are fitted with dowels to ensure easy disassembly and re-assembly.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet connection | DN 25 ISO-KF |
| Outlet connection | DN 25 ISO-KF |
| Nominal pumping speed at 50 Hz | 29.5 m3/h, 17.4 cfm |
| Nominal pumping speed at 60 Hz | 35.4 m3/h, 20.9 cfm |
| Pumping speed at 50 Hz | 25.7 m3/h, 15.1 cfm |
| Pumping speed at 60 Hz | 30.8 m3/h, 18.2 cfm |
| Ultimate partial pressure w/out gas ballast | 1.0 x 10-4 mbar, 7.5 x 10-5 Torr |
| Ultimate total pressure w/out gas ballast | < 2.5 x 10-3 mbar, < 1.9 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast | < 5.0 x 10-3 mbar, < 3.8 x 10-3 Torr |
| Water vapor tolerance at 50/60 Hz | 25.0 mbar, 18.8 Torr |
| Water vapor capacity at 50/60 Hz | 476 g/h |
| Operating fluid | LEYBONOL LVO 100 |
| Operating fluid capacity | |
| min. | 0.6 l, 0.6 qt |
| max. | 1.4 l, 1.5 qt |
| Noise level to DIN 45 635 | |
| w/out gas ballast | 54 db(A) |
| w/ gas ballast | 56 db(A) |
| Mains connection | 3-phase, 220-240 / 380-420 V 50 Hz, 3-phase, 240-265 / 415-480 V, 60 Hz |
| Motor rating | 750 W, 1.0 hp |
| Rotation speed at 50/60 Hz | 1,500 min-1, 1,500 rpm |
| Motor protection rating | IP 55 |
| Admissible ambient temperature | +12 to +40°C, +54 to + 104°F |
| Shipping weight | 79 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TRIVAC B / BCS - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TRIVAC D 25 B Rotary Vane Vacuum Pump - NEW Part no. 11275 / 112 75 Pumping speed: 25 m3/h Ultimate pressure: < 2 x 10-3 mbar Single-phase motor: 230V, 50/60Hz Part no. 11276 / 112 76 Pumping speed: 25 m3/h Ultimate pressure: < 2 x 10-3 mbar Three-phase motor: 230/400V, 50Hz / 250/440V, 60Hz Part no. 11335 / 113 35 Pumping speed: 25 m3/h Ultimate pressure: < 2 x 10-3 mbar 1-phase motor: 208-252V, 50/60Hz incl. mains cable with SCHUKO plug Part no. 91275V001 Pumping speed: 25 m3/h Ultimate pressure: < 2 x 10-3 mbar 1-phase motor: 115V, 60/50Hz Only available for purchase in North and South America Part no. 11338 / 113 38 Pumping speed: 25 m3/h Ultimate pressure: < 2 x 10-3 mbar w/out motor Operating fluid: LEYBONOL LVO 100 Replaced Part #'s: 912752 / 91275-2, 912762 / 91276-2
