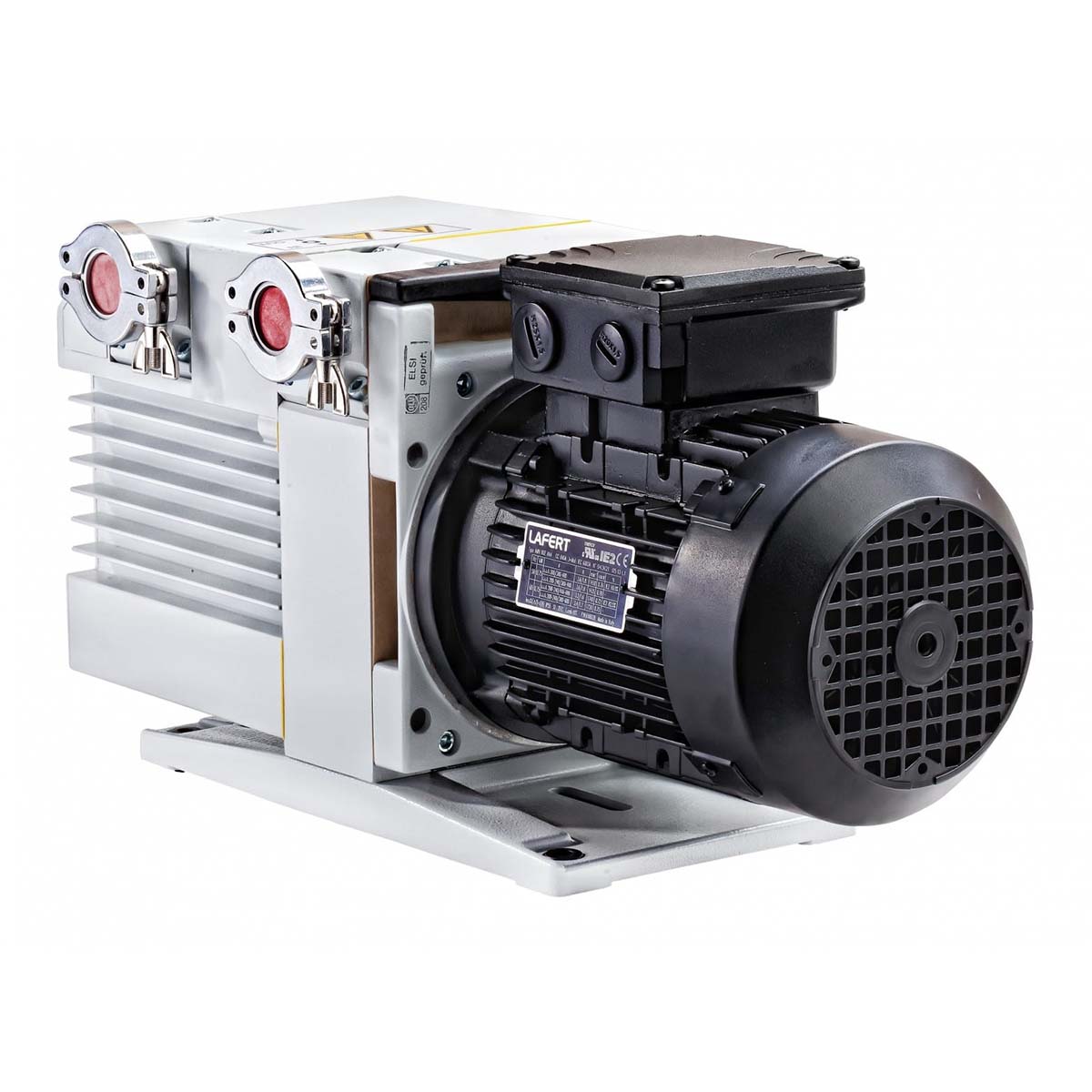

Leybold TRIVAC D16B - REBUILT

Name: Leybold TRIVAC D16B - REBUILT
Brand: Leybold
SKU: REBUILT_D16B

Be the first to review this product

Starting at $2,035

In stock

Only %1 left

SKU

REBUILT_D16B

Request For Quote

Weight	70 lbs
Motor Power	1 hp
Pumping Speed	16.5 m³/h
Ultimate Pressure	1 x 10^-4 mbar

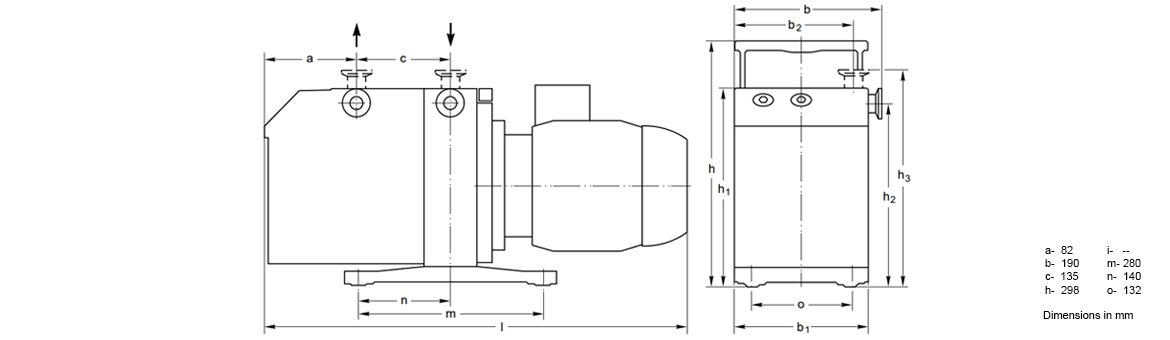

Dimensions

Description

Leybold TRIVAC D16B Rotary Vane Vacuum Pump - REBUILT

PTB Sales' technicians rebuild pumps to OEM specifications led by a Leybold Vacuum factory-trained mechanic. We also offer repair service for your used vacuum pumps.

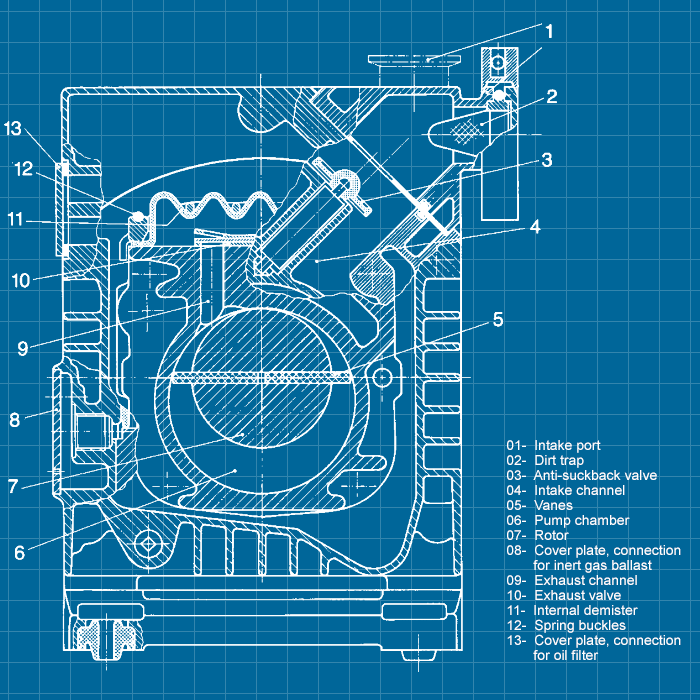

The Leybold Vacuum TRIVAC B are oil-sealed rotary vane vacuum pumps. Oil which is injected into the pump chamber is used for sealing, lubrication and cooling purposes. The pump body is assembled from individual parts without sealing components. The parts are pinned in order to ensure easy disassembly and reassembly of the parts. The pumps are equipped either with single or three-phase AC motors. They run on various vacuum pump oils.

Leybold blower packages are available.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet connection	DN 25 ISO-KF
Outlet connection	DN 25 ISO-KF
Nominal pumping speed at 50 Hz	18.9 m³/h, 11.1 cfm
Nominal pumping speed at 60 Hz	22.7 m³/h, 13.4 cfm
Pumping speed at 50 Hz	16.5 m³/h, 9.7 cfm
Pumping speed at 60 Hz	19.8 m³/h, 11.7 cfm
Ultimate partial pressure w/out gas ballast	1.0 x 10^-4 mbar, 7.5 x 10^-5 Torr
Ultimate total pressure w/out gas ballast	< 2.0 x 10^-3 mbar, < 1.5 x 10^-3 Torr
Ultimate total pressure w/ gas ballast	< 5.0 x 10^-3 mbar, < 3.8 x 10^-3 Torr
Water vapor tolerance at 50/60 Hz	25.0 mbar, 18.8 Torr
Water vapor capacity at 50/60 Hz	305 g/h
Operating fluid	LEYBONOL LVO 100
Operating fluid capacity
min.	0.5 l, 0.5 qt
max.	1.0 l, 1.1 qt
Noise level to DIN 45 635
w/out gas ballast	54 db(A)
w/ gas ballast	56 db(A)
Mains connection	1-phase, 230 V ±5%, 50/60 Hz
Motor rating	750 W, 1.0 hp
Rotation speed at 50 Hz	1,460 min^-1, 1,460 rpm
Rotation speed at 60 Hz	1,750 min^-1, 1,750 rpm
Motor protection rating	IP 55
Admissible ambient temperature	+12 to +40°C, +54 to +104°F
Weight	70 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold TRIVAC S/D 16B & 25B - REBUILT	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold TRIVAC D16B Rotary Vane Vacuum Pump - REBUILT

Part no. 11266 / 112 66
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
Three-phase motor: 230/400V, 50Hz // 250/440V, 60Hz

Part no. 11265 / 112 65
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
Single-phase motor: 230V, 50/60Hz

Part no. 11325 / 113 25
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
1-phase motor: 208-252V 50/60Hz
incl. mains cable with SCHUKO plug

Part no. 11333 / 113 33
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
3-phase motor: 230/400V, 50Hz // 250/440V, 60Hz

US-Version
Part no. 91265-1 / 912651
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
1-phase motor: 115V, 60/50Hz
Only available for purchase in North and South America

US-Version
Part no. 91265-2 / 912652
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
1-phase motor: 208-230V, 60/50Hz
Only available for purchase in North and South America

Part no. 11328 / 113 28
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
w/out motor

Part no. 11368 / 113 68
Pumping speed: 16.5 m³/h
Ultimate pressure: < 2,5 x 10^-3 mbar
3-phase motor: 230/400V, 50Hz // 250/440V, 60Hz

898199 / 898 199  TRIVAC D16B  MV/F 3-phase HE200 for ASP
11406 / 114 06  DOT 3-phase 50/60Hz

Operating fluid: LEYBONOL LVO 100
