Leybold TURBOLAB 450 - NEW

Name: Leybold TURBOLAB 450 - NEW
Brand: Leybold
SKU: NEW_TL450

Be the first to review this product

Call for Price

In stock

SKU

NEW_TL450

Request For Quote

Weight	48.5 lbs
Pumping Speed	430 l/s
Ultimate Pressure	< 1 x 10^-10 mbar

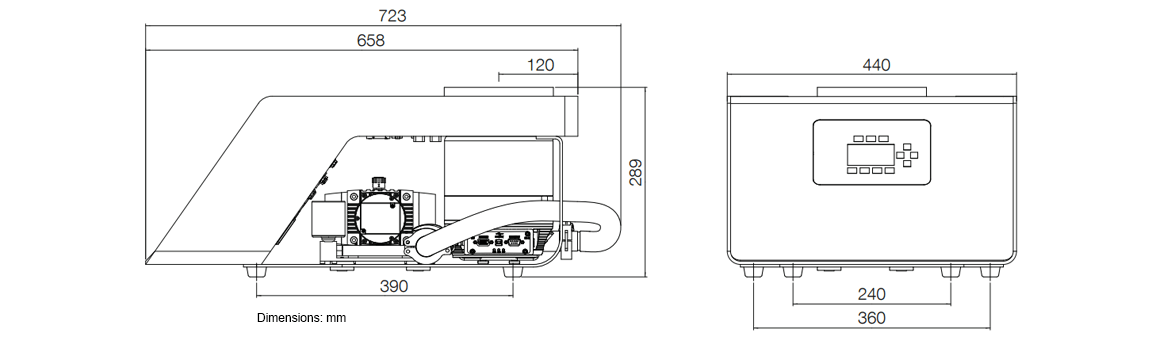

Dimensions

Description

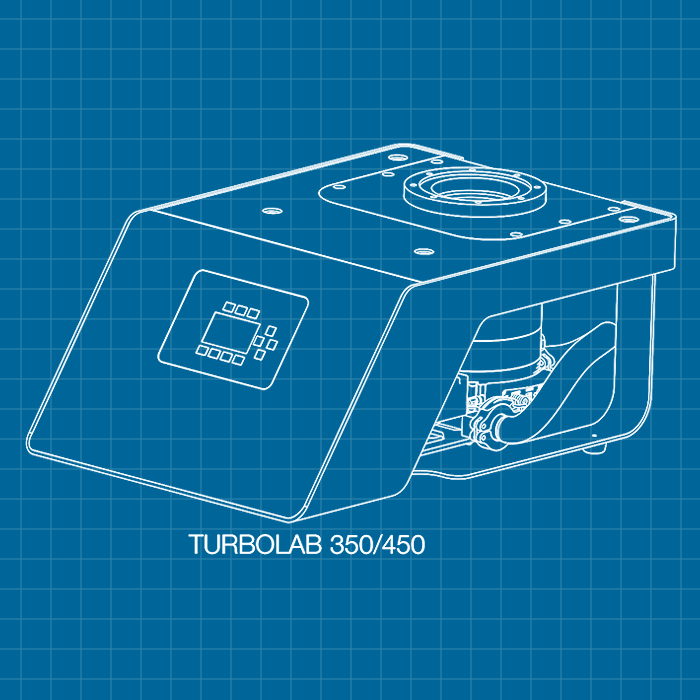

Leybold TURBOLAB 450 Compact Vacuum Pump System - NEW

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

TURBOLAB	80 / Cart	350 / Cart	450 / Cart
High vacuum connection	DN 63 ISO-K or 63 CF	DN 100 ISO-K or 100 CF	DN 160 ISO-K or 160 CF
Forevacuum connection	DN 16 KF	DN 25 KF
Pumping speed for N₂	65 l/s	290 l/s	430 l/s
Ultimate pressure ISO/CF	10^-7 / 10^-7 mbar	< 10^-8 / < 10^-10 mbar
Mains supply	110 / 230 V ±10 %
Power consumption, max.	350 VA	240 VA
Weight	14.5 kg (31.9 lbs)	22 kg (48.5 lbs)
Accessories	6
Gauges	2
System condition monitoring (CBM)	Internal condition monitoring
Software	Access via the IP address of the TURBOLAB (no software installation required)
Webserver	Multi-platform browser (InternetExplorer, Safari, Chrome, Fire Fox) for system configuration, control, operation, monitoring
DataViewer	Analysing and assessing of the recorded system data. Display as graph and in a table (PC Windows)
CMS Widget	Control window for permanent system condition monitoring (PC Windows)

Specs Link

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold TURBOLAB 450 Compact Vacuum Pump System - NEW

Bench-top
501592V07001000  DN 160 CF  DIVAC 3.0 T
501592V06001000  DN 160 ISO-K  DIVAC 3.0 T

Cart
501592V06020000  DN 160 ISO-K  SCROLLVAC SC 5 D
501592V06040000  DN 160 ISO-K  SCROLLVAC SC 15 D
501592V06060000  DN 160 ISO-K  SCROLLVAC SC 30 D
501592V06120000  DN 160 ISO-K  TRIVAC D 4 B
501592V06130000  DN 160 ISO-K  TRIVAC D 8 B
501592V06100000  DN 160 ISO-K  SOGEVAC SV 16 D

230439V01  LEYASSIST Software for turbomolecular pumps

All order numbers refer to wide range motors 230 V, 50/60 Hz
Ordering information on 110 V, 50/60 Hz voltage models, CF versions, and the full range of accessories are available on request or can be taken from the Leybold main catalogue.
