Leybold TURBOVAC MAG W 1300 C - REBUILT
Call for Price
In stock
Only %1 left
SKU
REBUILT_MAGW1300C
| Weight | 77 lbs |
|---|---|
| Pumping Speed | 1,100 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Leybold Vacuum TURBOVAC MAG W 1300 C Turbomolecular Pump - REBUILT
Accuracy, precision and reliability those are the features of these magnetically-levitated turbomolecular pumps. High pumping speed and gas throughput for faster pump down time improve equipment cycle times. With its fully integrated converter and power supply, conventional rack-mounted controller and interconnecting cables are no longer necessary.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

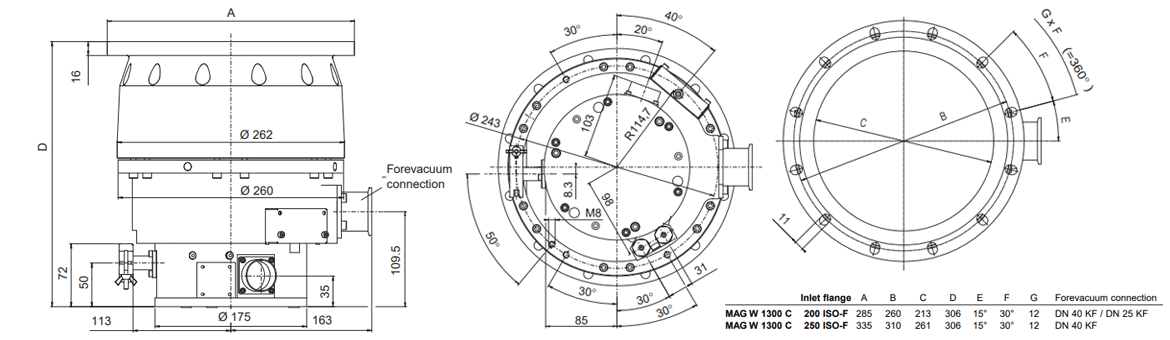

| Inlet connection | DN 200 CF |
| Outlet connection | DN 40 ISO KF |
| Ultimate pressure | < 1.0 x 10-10 mbar |
| Max. foreline pressure for N2 | 2.0 mbar |
| Nominal rotation speed | 36,000 min-1 |
| Run up time | ≈ 6 min |
| Max. power consumption | 1,100 W |
| Power consumption at ultimate pressure | 100 W |
| Protection rating | IP 20 |
| Admissible ambient temperature | 5 - 40°C |
| Cooling standard | Water |
| Cooling water connection | 1/4" tube |
| Cooling water consumption | 120 - 350 l/h |
| Permissible cooling water pressure | 2 - 7 bar |
| Permissible cooling water temperature | 10 - 30°C |
| Weight | ≈ 35.0 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold MAG digital Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC MAG W 1300 C Turbomolecular Pump - REBUILT 400110V0011 MAG W 1300 C DN 200 ISO-F 400110V0015 MAG W 1300 C DN 200 ISO-F 400110V0017 MAG W 1300 C DN 200 ISO-F 400110V0021 MAG W 1300 C DN 250 ISO-F 400110V0023 MAG W 1300 C DN 250 ISO-F 400110V0121 MAG W 1300 C DN 250 ISO-K 400110V0051 MAG W 1300 C DN 200 CF
