Leybold TURBOVAC MAG W 1700 iP - NEW

Name: Leybold TURBOVAC MAG W 1700 iP - NEW
Brand: Leybold
SKU: NEW_MAGW1700iP

Be the first to review this product

Call for Price

In stock

SKU

NEW_MAGW1700iP

Request For Quote

Weight	99 lbs
Pumping Speed	1,610 l/s
Ultimate Pressure	< 1 x 10^-10 mbar

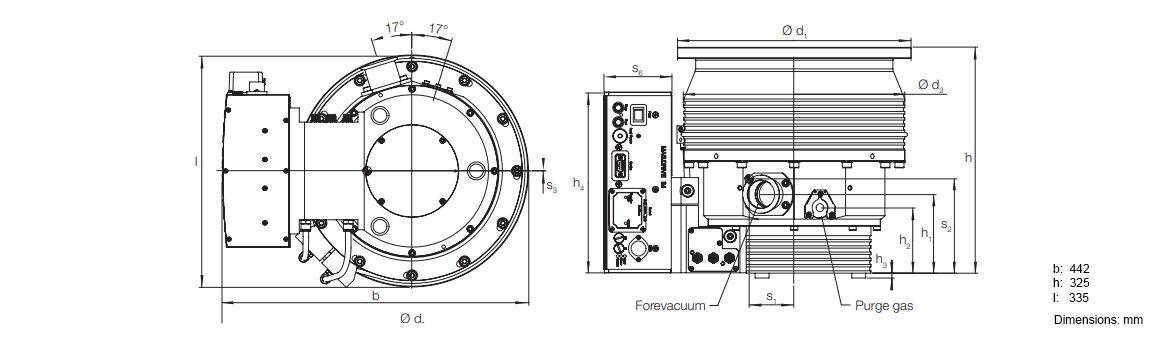

Dimensions

Description

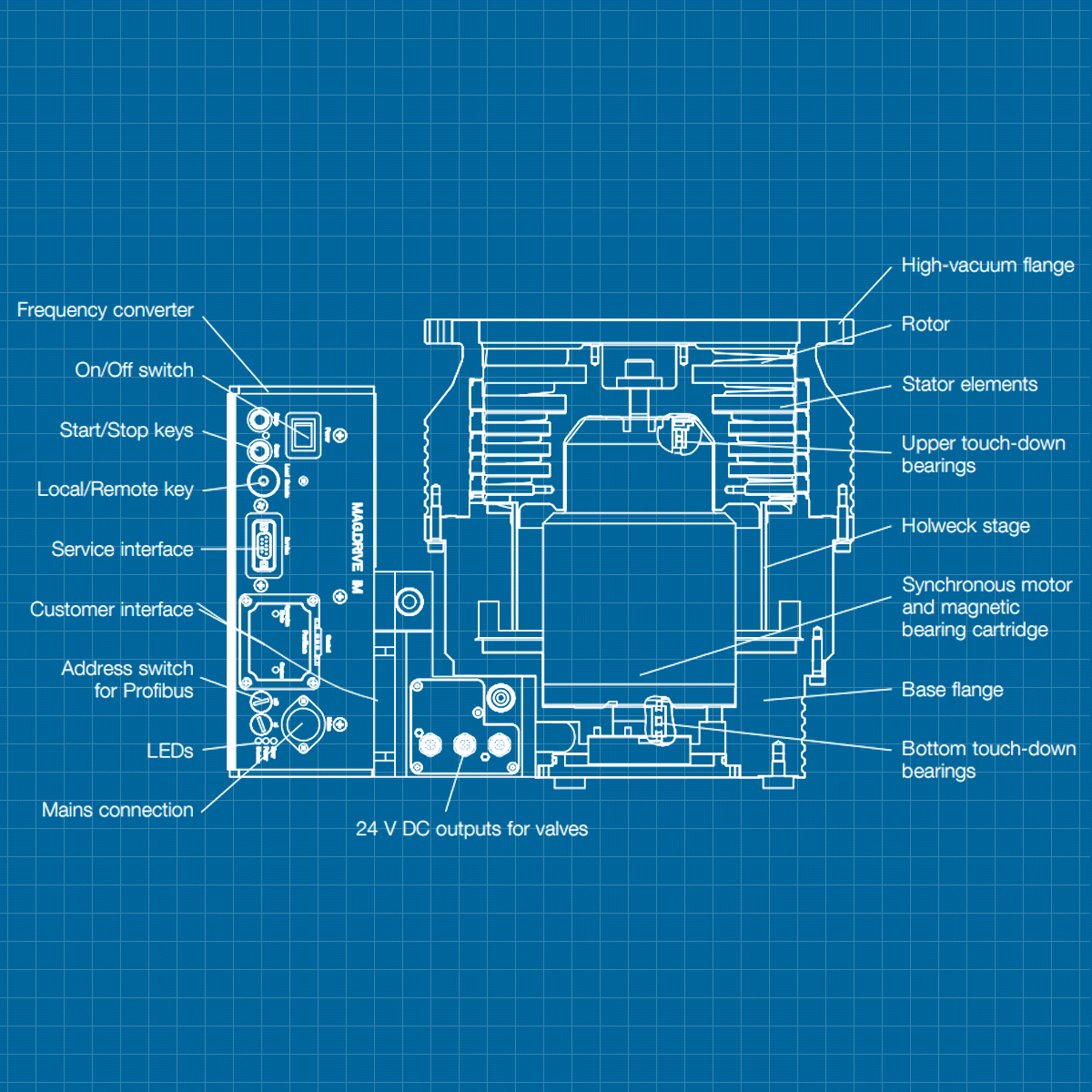

Leybold TURBOVAC MAG W 1700 iP Turbomolecular Vacuum Pump - NEW

Accuracy, precision and reliability those are the features of these magnetically-levitated turbomolecular pumps. High pumping speed and gas throughput for faster pump down time improve equipment cycle times. With its fully integrated converter and power supply, conventional rack-mounted controller and interconnecting cables are no longer necessary.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

High-vacuum flange	DN 250 ISO-F / 250 CF
Pumping speed (PNEUROP) l/s
N₂	1,610
Ar	1,480
He	1,710
H₂	1,660
Max. Compression
N₂	> 10⁸
Ar	> 10⁸
He at 1 sccm	2 x 10⁵
H₂ at 1 sccm	4 x 10³
Max. gas throughput mbar x I/s^-1
N₂ temporary, for pump down	30
N₂ continuous operation	20
Ar temporary, for pump down	20
Ar continuous operation	15
Max. forevacuum pressure N₂/ Ar	4 mbar
Nominal speed	33,000 min^-1 rpm
Stand-by speed to be set between	13,800 min^-1 (230 Hz) and nominal speed
Ultimate pressure ISO-F / CF flange	< 10^-8 mbar / < 10^-10 mbar
Max. bake-out temperature	80°C
Run-up time	< 7 min
Forevacuum flange	DN 40 KF
Purge gas / venting flange	DN 16 KF (clamp shoe)
Cooling connection	G 1/8”
Weight, approx.	45 kg (99 lbs)
Noise level acc. to ISO 3744	< 41 db(A)
Vibration level at high-vacuum flange at max. speed	< 0.01 µm

Specs Link

Digital Manuals

Type	Label	Description	Download
	Leybold High Vacuum - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold TURBOVAC MAG W 1700 iP Turbomolecular Vacuum Pump - NEW

411700V0504  MAG W 1700 iP  DN 250 ISO-F Profibus
411700V0514  MAG W 1700 iP  DN 250 ISO-F 24 V PLC Interface
411700V0506  MAG W 1700 iP  DN 250 CF Profibus
411700V0516  MAG W 1700 iP  DN 250 CF 24 V PLC Interface
411700V0704  MAG W 1700 iPL  DN 250 ISO-F Profibus
411700V0714  MAG W 1700 iPL  DN 250 ISO-F 24 V PLC Interface
411700V0706  MAG W 1700 iPL  DN 250 CF Profibus
411700V0716  MAG W 1700 iPL  DN 250 CF 24 V PLC Interface
