Leybold TURBOVAC TW 701 - REBUILT

Name: Leybold TURBOVAC TW 701 - REBUILT
Brand: Leybold
SKU: REBUILT_TW701

Be the first to review this product

Call for Price

In stock

Only %1 left

SKU

REBUILT_TW701

Request For Quote

Weight	42 lbs
Pumping Speed	680 l/s^-1
Ultimate Pressure	1 x 10^-7 mbar

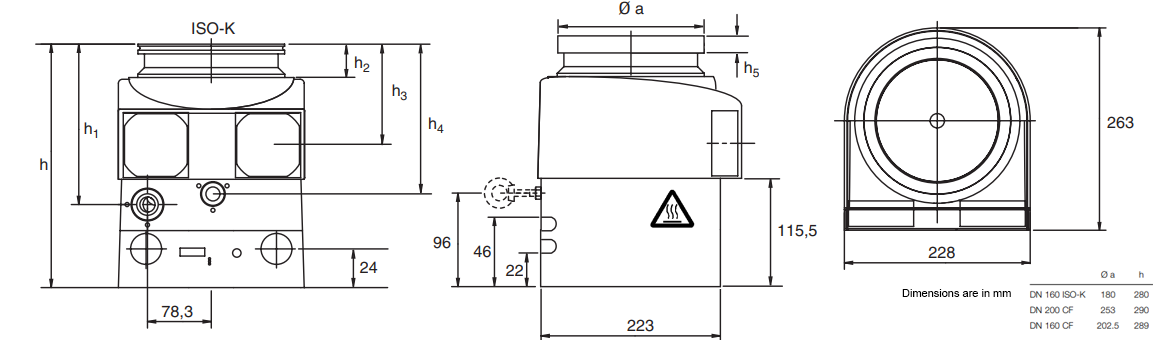

Dimensions

Description

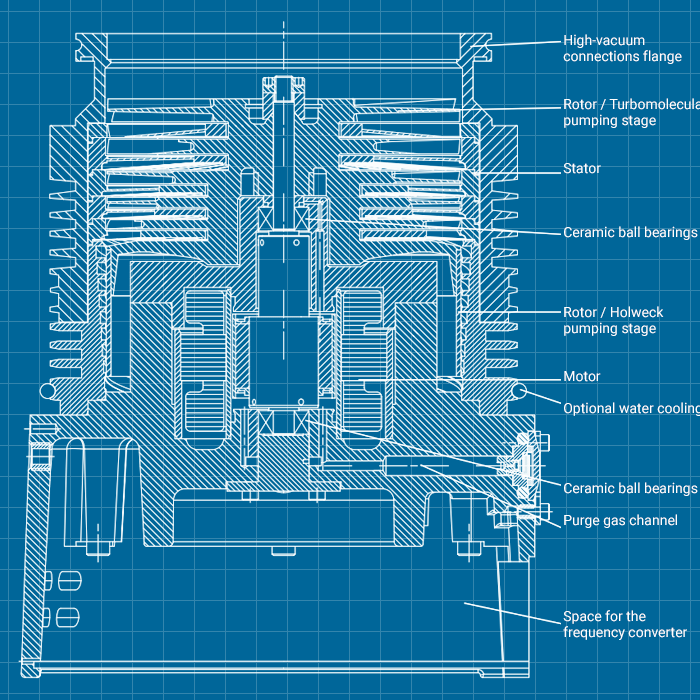

Leybold Vacuum TURBOVAC TW 701 Turbomolecular Pump - REBUILT

We offer repair service and are capable of rebuilding, balancing and testing this pump, part # 800051V0025. View our inventory of Leybold Vacuum turbo pumps.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

High-vacuum connection	DN 160 ISO-K DN 160 CF
Pumping speed* for N₂/ Ar	680 l/s
Pumping speed* for He	530 l/s
Pumping speed* for H₂	300 l/s
rotary vane pump	< 10^-9 mbar
w/ diaphragm pump achieving ultimate pressure < 5 mbar	< 10^-7 mbar
Max. permissible forevacuum pressure (see also Fig. 10)	14 mbar
Operating speed	48,000 r.p.m.
Run-up time, approx.	5 min
Forevacuum connection	DN 25 KF
Purge gas connection	DN 16 KF
Connection, internal threads	G 1/8"
Temperature	15 - 35°C

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold TURBOVAC TW 701 - REBUILT	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold Vacuum TURBOVAC TW 701 Turbomolecular Pump - REBUILT

800051V0121  TW 701  DN 160 ISO-K RS 232 air
800051V0025  TW 701  DN 160 ISO-K RS 232 water
800051V0024  TW 701  DN 160 ISO-K RS 485 air
800051V0023  TW 701  DN 160 ISO-K RS 485 water
800051V0122  TW 701  DN 160 ISO-K water profibus
800051V0027  TW 701  DN 160 CF RS 485 air
800051V0026  TW 701  DN 160 CF RS 485 water
800051V0022  TW 701  DN 200 CF RS 232 water w/ splinter guard
800051V0021  TW 701

800051V0001 / 86431  TW 700  DN 160 ISO-K RS 232
800051V0002 / 13633  TW 700  DN 200 CF RS 232
800051V0003 / 86437  TW 700  DN 160 ISO-K RS 485
800051V0004 / 86436  TW 700  DN 160 ISO-K RS 485
800051V0005 / 86432  TW 700  DN 160 ISO-K RS 232
800051V0006 / 11443  TW 700  DN 160 CF RS 485
800051V0007 / 13628  TW 700  DN 160 CF RS 485
              11360  TW 700  w/ TDL
