Pfeiffer Adixen Alcatel 2063 - REBUILT
Weight
216 lbs
Pumping Speed
42.4 cfm
Ultimate Pressure
3 x 10-4 mbar

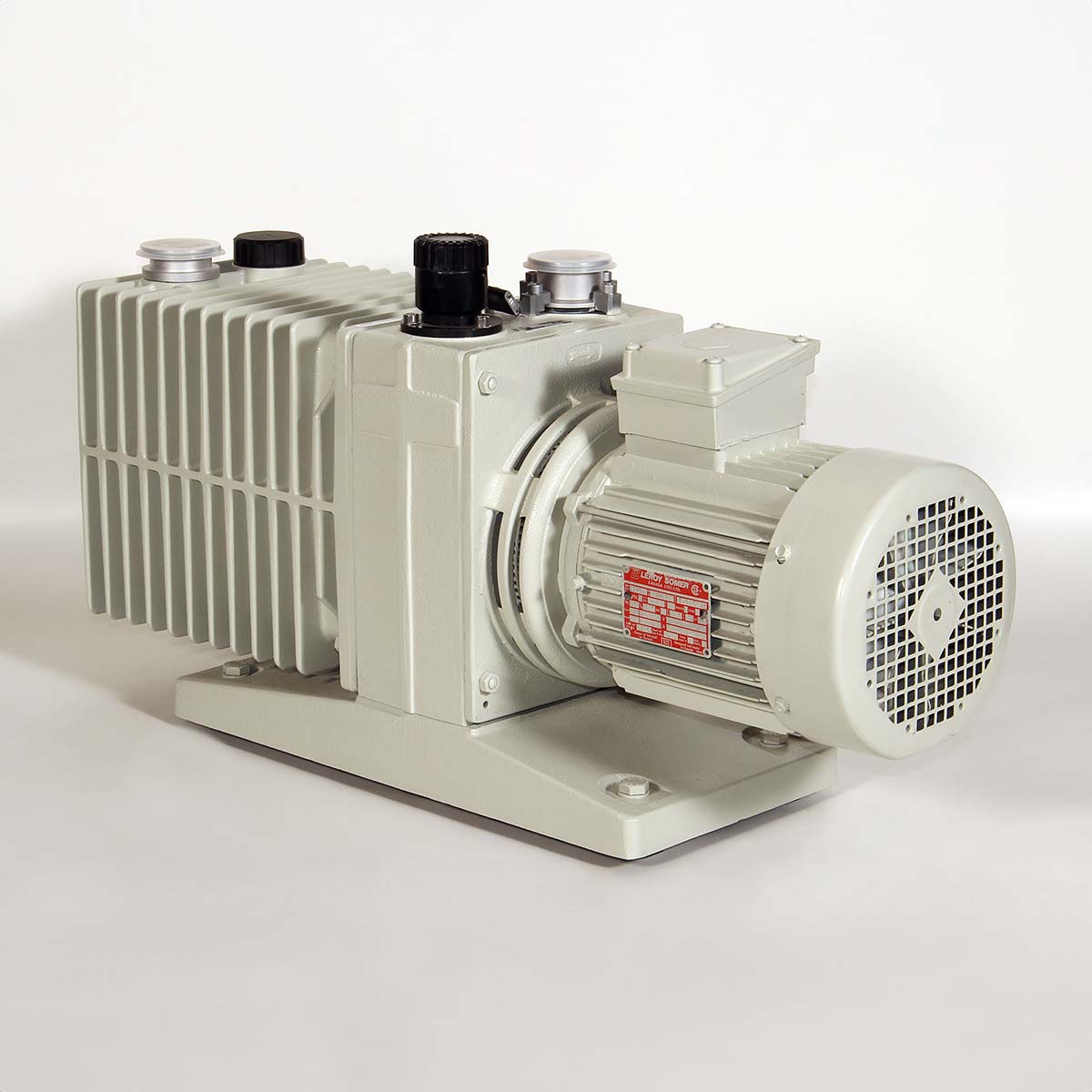

Pfeiffer Adixen Alcatel 2063 Pascal Rotary Vane Vacuum Pump - REBUILT
Rebuilt with one year warranty. Pfeiffer Adixen Alcatel 2063 Pascal rotary vane vacuum pumps. These have dual voltage: 115-230V motors and have a manual gas ballast. Fill out our request for quote form.
Questions? send an email to our sales team!
Specifications
Unit
2033SD
2063SD
2033C1
2063C1
2033C2
2063C2
Number of stages
2
Nominal rotational speed
rpm
1,500
1,800
1,500
1,800
1,500
1,800
Nominal pumping speed 50Hz (60Hz)
m3 /h (cfm)
30 (23.3)
60 (42.4)
30 (23.3)
60 (42.4)
30 (23.3)
60 (42.4)
Pneurop pumping speed 50Hz (60Hz)
m3 /h (cfm)
27 (18.8)
55 (38)
27 (18.8)
55 (38)
27 (18.8)
55 (38)
Ultimate partial pressure
mbar
2 x 10-4
3 x 10-4
5 x 10-4
3 x 10-4
Ultimate total pressure open gas ballast
mbar
2 x 10-2
-
Water vapour capacity 50/60Hz
g/h
700
1,200
700
1,200
-
Water vapour pressure 50/60Hz
mbar
30
25
30
25
-
Oil capacity
liters
3.6
7.0
3.6
7.0
3.6
7.0
Weight
kg (lbs)
61 (134)
93 (205)
74 (163)
98 (216)
76 (167)
98 (216)
Inlet and outlet flanges
ISO-KF
DN 40
Specifications
Type
Label
Description
Download
Alcatel CIT 2033 - 2063 - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Adixen Alcatel 2063 Pascal Rotary Vane Vacuum Pump - REBUILT
