Pfeiffer HiPace 300 - REBUILT
Starting at
$5,950
In stock
Only %1 left
SKU
REBUILT_HiPace300
| Weight | 15 lbs |
|---|---|
| Pumping Speed | 260 l/s |
| Ultimate Pressure | < 1 x 10-7 mbar |
Pfeiffer Vacuum HiPace 300 Turbomolecular Pump - REBUILT
Features include:
- Maximum reliability in a compact design
- High pumping speed and maximum compression for all gases
- Semi S2 and UL/CSA certification
- Ideal for industry and research
- Integrated drive electronics, suitable for industrial environments - Protection class IP54
- Continuous monitoring of operating data
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Bearing | Hybrid |
| Compression ratio | |
| Ar | > 1 x 1011 |
| H2 | 9 x 105 |
| He | > 1 x 108 |
| N2 | > 1 x 1011 |
| Cooling method, optional | Air |
| Cooling method, standard | Water |
| Cooling water consumption | 50 l/h |
| Cooling water temp. | 15-35°C / 59-95°F / 288-308°K |

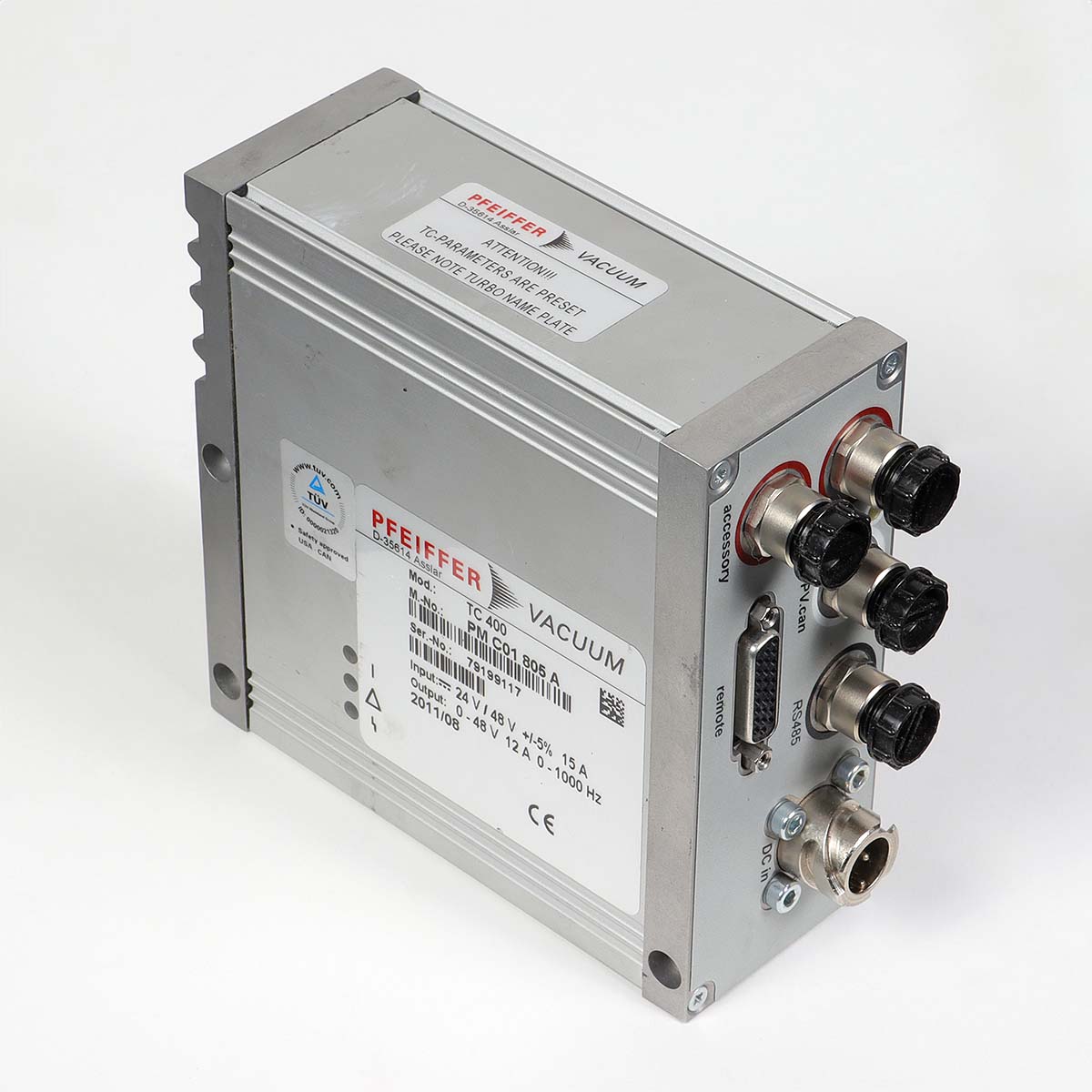

| Electric drive unit | w/ TC 400 |

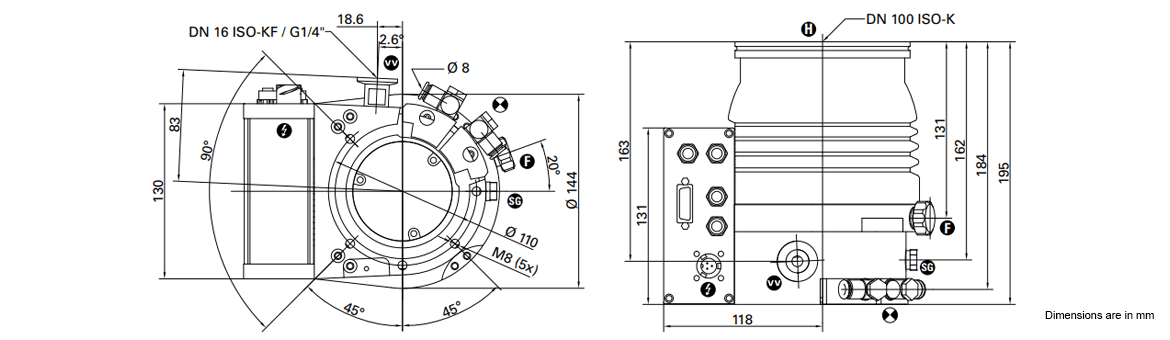

| Flange (in) | DN 100 ISO-K |
| Flange (out) | DN 16 ISO-KF/G 1/4" |
| Forevacuum max. for N2 | 20 hPA / 15 Torr / 20 mbar |
| Gas throughput at full rotational speed for Ar | 7 hPa l/s / > 10.5 Torr l/s / 7 mbar l/s |
| Gas throughput at full rotational speed for H2 | > 14 hPa l/s / > 10.5 Torr l/s / > 14 mbar l/s |
| Interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage | 24 (± 5%) V DC |
| Permissible magnetic field max. | 5.5 mT |
| Protection category | IP54 |
| Pumping speed | |
| Ar | 255 l/s |
| H2 | 220 l/s |
| He | 255 l/s |
| N2 | 260 l/s |
| Rotation speed ± 2 % | 60,000 rpm / 60,000 min-1 |
| Rotation speed variable | 35 - 100% |
| Run-up time | 1.8 min |
| Ult pressure (PNEUROP) | < 1 x 10-7 hPa / < 7.5 x 10-8 Torr / < 1 x 10-7 mbar |
| Venting connection | G1/8" |
| Weight | 6.7 kg / 14.77 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer HiPace 300 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum HiPace 300 Turbomolecular Pump - REBUILT PMP03900 / PM P03 900 w/ TC 400 DN 100 ISO-K PMP03901 / PM P03 901 w/ TC 400 DN 100 CF-F PMP03902 / PM P03 902 w/ TC 400 DN 100 ISO-F PMP03906 / PM P03 906 w/ TC 400 DN 100 ISO-K PMP03996 / PM P03 996 w/ TC 400 DN 100 CF-F PMP03907 / PM P03 907 w/ TC 400 DN 100 ISO-F PMP04710 / PM P04 710 w/ TC 400 DN 100 ISO-K PMP04711 / PM P04 711 w/ TC 400 DN 100 CF-F PMP04712 / PM P04 712 w/ TC 400 DN 100 ISO-F PMP03980 / PM P03 980 w/ TC 110 DN 100 ISO-K PMP03981 / PM P03 981 w/ TC 110 DN 100 CF-F PMP03982 / PM P03 982 w/ TC 110 DN 100 ISO-F
PMP03989 / PM P03 989 w/ TC 110 DN 100 CF-F PMP03990 / PM P03 990 w/ TC 110 DN 100 ISO-K PMP03991 / PM P03 991 w/ TC 110 DN 100 CF-F PMP03992 / PM P03 992 w/ TC 110 DN 100 ISO-F PMP03993 / PM P03 993 for TCP 350 DN 100 ISO-K PMP03994 / PM P03 994 for TCP 350 DN 100 CF-F PMP03995 / PM P03 995 for TCP 350 DN 100 ISO-F PMP04230 / PM P04 230 w/ TC 400 Profibus DN 100 ISO-K PMP04231 / PM P04 231 w/ TC 400 Profibus DN 100 CF-F PMP04232 / PM P04 232 w/ TC 400 Profibus DN 100 ISO-F PMP04236 / PM P04 236 w/ TC 110 Profibus DN 100 ISO-K PMP04237 / PM P04 237 w/ TC 110 Profibus DN 100 CF-F PMP04238 / PM P04 238 w/ TC 110 Profibus DN 100 ISO-F PMP04095 / PM P04 095 w/ TC 110 & power supply OPS 100 DN 100 ISO-K PMP04096 / PM P04 096 w/ TC 110 & power supply OPS 120 DN 100 ISO-K PMP04330 / PM P04 330 w/ TC 110 & power supply OPS 100 DN 100 ISO-K PMP04331 / PM P04 331 w/ TC 110 & power supply OPS 100 DN 100 CF-F PMP04332 / PM P04 332 w/ TC 110 & power supply OPS 100 DN 100 ISO-F PMP05540 / PM P05 540 w/ TC 110 DN 100 ISO-K PMP05541 / PM P05 541 w/ TC 110 DN 100 CF-F PMP05542 / PM P05 542 w/ TC 110 DN 100 ISO-F PMP05543 / PM P05 543 for TCP 350 DN 100 ISO-K PMP05544 / PM P05 544 for TCP 350 DN 100 CF-F PMP05545 / PM P05 545 for TCP 350 DN 100 ISO-F
