Pfeiffer HiPace 400 - NEW

Name: Pfeiffer HiPace 400 - NEW
Brand: Pfeiffer
SKU: NEW_HiPace400

Be the first to review this product

Call for Price

In stock

SKU

NEW_HiPace400

Request For Quote

Weight	26.46 lbs
Pumping Speed	355 l/s
Ultimate Pressure	< 1 x 10^-7 mbar

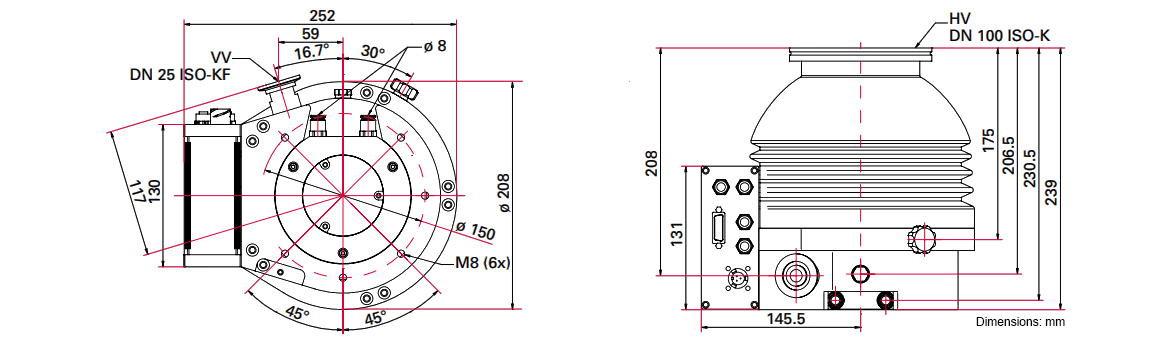

Dimensions

Description

Pfeiffer Vacuum HiPace 400 Turbomolecular Pump - NEW

Features include:

Maximum reliability in a compact design
High pumping speed and maximum compression for all gases
Semi S2 and UL/CSA certification
Ideal for industry and research
Integrated drive electronics, suitable for industrial environments - Protection class IP54
Continuous monitoring of operating data

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Hybrid
Compression ratio
Ar	> 1 x 10¹¹
H₂	4 x 10⁵
He	3 x 10⁷
N₂	> 1 x 10¹¹
Cooling method, optional	Air
Cooling method, standard	Water
Cooling water consumption	100 l/h
Cooling water temp.	15-35°C / 59-95°F / 288-308°K
Electric drive unit	w/ TC 400
Flange (in)	DN 100 ISO-F
Flange (out)	DN 25 ISO-KF/G ^1/4"
Forevacuum max. for N₂	11 hPA / 8.25 Torr / 11 mbar
Gas throughput at full rotational speed for Ar	3.5 hPa l/s / > 2.62 Torr l/s / 3.5 mbar l/s
Gas throughput at full rotational speed for H₂	> 14 hPa l/s / > 10.5 Torr l/s / > 14 mbar l/s
Interfaces	RS-485, Remote
Mounting orientation	Any
Operating voltage	48 (± 5%) V DC
Permissible magnetic field max.	6 mT
Protection category	IP54
Pumping speed
Ar	320 l/s
H₂	445 l/s
He	470 l/s
N₂	355 l/s
Rotation speed ± 2 %	49,200 rpm / 49,200 min^-1
Run-up time	2 min
Ult pressure (PNEUROP)	< 1 x 10^-7 hPa / < 7.5 x 10^-8 Torr / < 1 x 10^-7 mbar
Venting connection	G^1/8"
Weight	12 kg / 26.46 lbs

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 400 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP04023 / PM P04 023 / 2000015793  HiPace 400  TC 400, DN 100 ISO-K, G 1/4"
PMP04024 / PM P04 024 / 2000015795  HiPace 400  TC 400, DN 100 CF-F, G 1/4"
PMP04025 / PM P04 025 / 2000015797  HiPace 400  TC 400, DN 100 ISO-F, G 1/4"
PMP04026 / PM P04 026 / 2000015799  HiPace 400  TCP 350, DN 100 ISO-K, G 1/4"
PMP04027 / PM P04 027 / 2000015800  HiPace 400  TCP 350, DN 100 CF-F, G 1/4"
PMP04028 / PM P04 028 / 2000015801  HiPace 400  TCP 350, DN 100 ISO-F, G 1/4"
PMP04243 / PM P04 243 / 2000015146  HiPace 400  TC 400, Profibus, DN 100 ISO-K, G 1/4"
PMP04244 / PM P04 244 / 2000015147  HiPace 400  TC 400, Profibus, DN 100 CF-F, G 1/4"
PMP04245 / PM P04 245 / 2000015148  HiPace 400  TC 400, Profibus, DN 100 ISO-F
PMP04740 / PM P04 740               HiPace 400  TC 400, DN 100 ISO-K
PMP04741 / PM P04 741               HiPace 400  TC 400, DN 100 CF-F
PMP04742 / PM P04 742               HiPace 400  TC 400, DN 100 ISO-F
