Pfeiffer HiPace 80 - REBUILT
| Weight |
10 lbs |
| Pumping Speed |
67 l/s |
| Ultimate Pressure |
< 1 x 10-7 mbar |

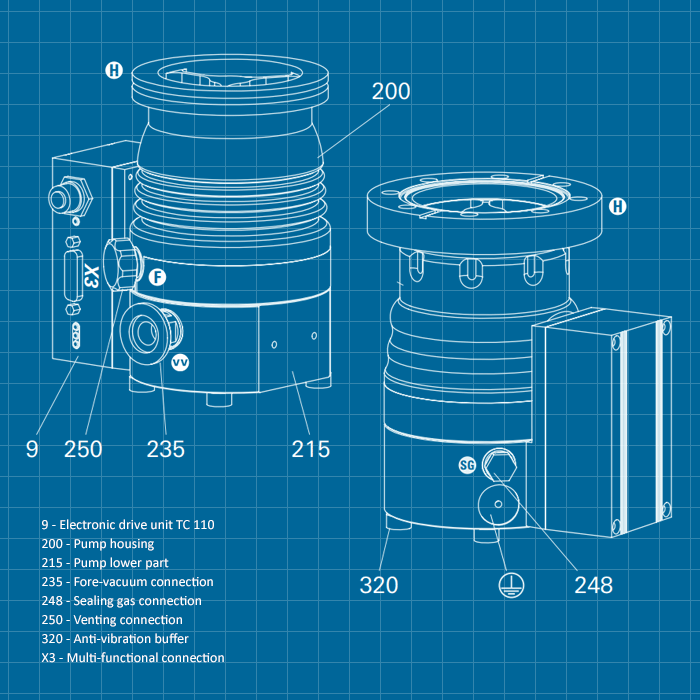

Pfeiffer Vacuum HiPace 80 Turbomolecular Pump - REBUILT
Features include:
- Compact design for minimum footprint
- High pumping speed and maximum compression for all gases
- Integrated drive electronics, suitable for industrial environments - Protection class IP54 Semi S2 and UL/CSA certification
- Maximum reliability through monitoring of operating data
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Bearing |
Hybrid |
| Compression ratio |
|
| Ar |
> 1 x 1011 |
| H2 |
1.4 x 106 |
| He |
1.3 x 108 |
| N2 |
> 1 x 1011 |
| Cooling method, optional |
Air / water |
| Cooling method, standard |
Convection |
| Cooling water consumption |
75 l/h |
| Cooling water temp. |
5-25°C / 41-77°F / 278-298°K |
| Electric drive unit |
with TC 110 |
| Flange (in) |

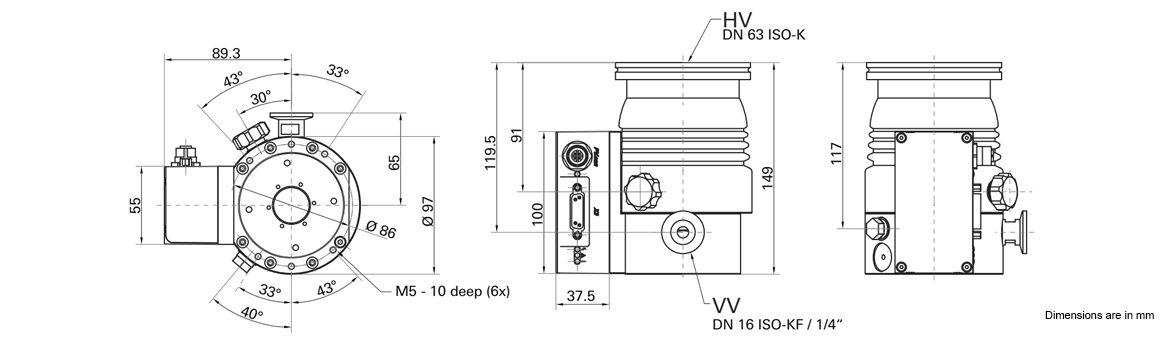

DN 63 ISO-K |
| Flange (out) |
DN 16 ISO-KF/G 1/4" |
| Forevacuum max. for N2 |
22 hPA / 16.5 Torr / 22 mbar |
| Gas throughput at full rotational speed for Ar |
0.54 hPa l/s / 0.41 Torr l/s / 0.54 mbar l/s |
| Gas throughput at full rotational speed for H2 |
15.3 hPa l/s / > 11.47 Torr l/s / 15.3 mbar l/s |
| Interfaces |
RS-485, Remote |
| Mounting orientation |
Any |
| Operating voltage |
24 (± 5%) V DC |
| Permissible magnetic field max. |
3.3 mT |
| Protection category |
IP54 |
| Pumping speed |
| Ar |
66 l/s |
| H2 |
48 l/s |
| He |
58 l/s |
| N2 |
67 l/s |
| Rotation speed ± 2% |
90,000 rpm / 90,000 min-1 |
| Rotation speed variable |
50 - 100% |
| Run-up time |
1.7 min |
| Ult pressure (PNEUROP) |
< 1 x 10-7 hPa / < 7.5 x 10-8 Torr / < 1 x 10-7 mbar |
| Venting connection |
G1/8" |
| Weight |
2.4 kg / 5.29 lbs |
Specifications
| Type |
Label |
Description |
Download |
|
|
Pfeiffer HiPace 80 - REBUILT |
Operating Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum HiPace 80 Turbomolecular Pump - REBUILT
PMP03940 / PM P03 940 w/ TC 110 DN 63 ISO-K
PMP03941 / PM P03 941 w/ TC 110 DN 63 CF-F
PMP03942 / PM P03 942 w/ TC 110 DN 40 ISO-KF
PMP03943 / PM P03 943 for TCP 350 DN 63 ISO-K
PMP03944 / PM P03 944 for TCP 350 DN 63 CF-F
PMP03945 / PM P03 945 for TCP 350 DN 40 ISO-KF
PMP04216 / PM P04 216 w/ TC 110 DN 63 ISO-K
PMP04260 / PM P04 260 w/ TC 110 Profibus DN 63 ISO-K
PMP04261 / PM P04 261 w/ TC 110 Profibus DN 63 CF-F
PMP04262 / PM P04 262 w/ TC 110 Profibus DN 40 ISO-KF
PMP04263 / PM P04 263 w/ TC 110 & power supply OPS 70 DN 63 ISO-K
PMP04264 / PM P04 264 w/ TC 110 & power supply OPS 70 DN 63 CF-F
PMP04265 / PM P04 265 w/ TC 110 & power supply OPS 70 DN 40 ISO-KF
PMP04266 / PM P04 266 w/ TC 110 & power supply OPS 70 Profibus DN 63 ISO-K
PMP04267 / PM P04 267 w/ TC 110 & power supply OPS 70 Profibus DN 63 CF-F
PMP04268 / PM P04 268 w/ TC 110 & power supply OPS 70 Profibus DN 40 ISO-KF
PMP04390 / PM P04 390 w/ TC 110 E74 DN 63 ISO-K
PMP04391 / PM P04 391 w/ TC 110 E74 DN 63 CF-F
PMP04392 / PM P04 392 w/ TC 110 E74 DN 40 ISO-KF
PMP04393 / PM P04 393 w/ TC 110 E74 & power supply OPS 70 DN 63 ISO-K
PMP04394 / PM P04 394 w/ TC 110 E74 & power supply OPS 70 DN 63 CF-F
PMP04395 / PM P04 395 w/ TC 110 E74 & power supply OPS 70 DN 40 ISO-KF
PMP05595 / PM P05 595 w/ TC 110 DN 63 ISO-K
