Pfeiffer TMH 1601 P - REBUILT
Call for Price
In stock
SKU
REBUILT_TMH1601P
| Weight | 171 lbs |
|---|---|
| Pumping Speed | 1,050-1,320 l/s |
| Ultimate Pressure | 1 x 10-10 mbar |

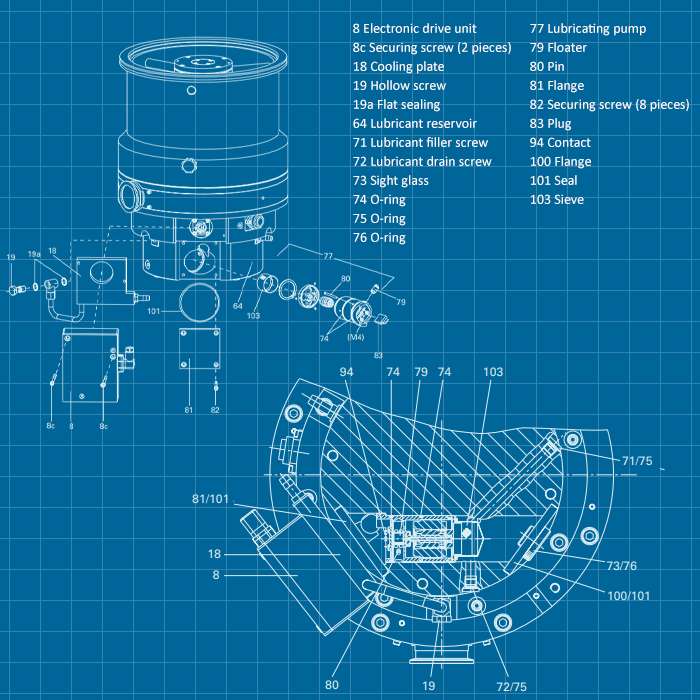

Pfeiffer Vacuum TMH 1601 P Turbomolecular Pump - REBUILT
- The turbomolecular pumps TMH/TMU 1601P and TMH/TMU 1601 PC may only be used for the purpose of generating vacuum.
- The turbomolecular pumps TMH/TMU 1601 PC are designed to pump corrosive gases and vapours. Where corrosive gas processes are involved, gas bonding and particels which can damage the surfaces of the pump can be produced. The motor and bearing compartments have to be protected with sealing gas.
- The turbo pump smay only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved.
- If the process produces dust,the maintenance intervals must be specified accordingly and sealing gas must be used.
- If the pump is to be operated with more than 50% of the permissible gas load, sealing gas must be used.
- The turbopump must be connected to a backing pump in accordance with Section 3.3.
- Only Pfeiffer Vacuum power units may be used to operate the TC 600. The use of other power units requires the prior agreement of the manufacturer and equalisation with the valid specification.
- The pumps may only be operated providing theambient conditions in compliance with Protection Type IP 30 are observed.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | TMH/TMU 1601 P | TMH/TMU 1601 P C H (T) | ||
|---|---|---|---|---|

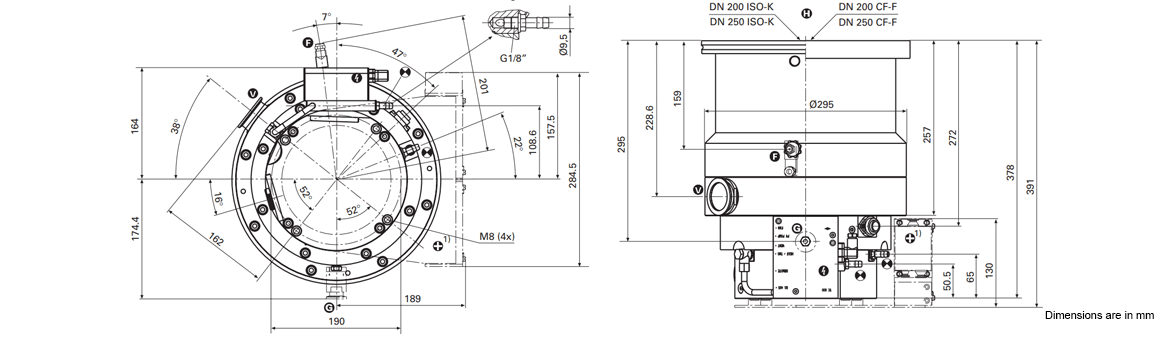

| Inlet | DN 200 ISO-K DN 200 CF-F |
DN 250 ISO-K DN 250 CF-F |
DN 200 ISO-K DN 200 CF-F |
DN 250 ISO-K DN 250 CF-F |
| Outlet | DN 40 ISO-KF | |||
| Venting connection | G 1/8” | |||
| Nominal rotation speed | 600 Hz (36,000 l/min) | |||
| Standby rotation speed | 400 Hz (24,000 l/min) | |||
| Start-up time (up to 90% of the nominal rotation speed fore-vacuum pressure ≤ 0.1 mbar) | 6 min | |||
| Noise level | 47 dB(A) | |||
| Final pressure, backing pump | ≤ 5 mbar | ≤ 2.5 mbar | ||
| Maximum permissible rotor temperature | 120°C | |||
| Permissible heat radiation power | 35 W | |||
| Volume flow rate for: | ||||
| N2 | 1,000 l/s | 1,400 l/s | 1,000 l/s | 1,400 l/s |
| He | 1,100 l/s | 1,200 l/s | 1,100 l/s | 1,210 l/s |
| H2 | 750 l/s | 900 l/s | 750 l/s | 900 l/s |
| Compression ratio for: | ||||
| N2 | 1011 | > 109 | ||
| He | 2 x 107 | 1 x 105 | ||
| H2 | 2 x 105 | 5 x 103 | ||
| Maximum fore-vacuum pressure | ||||
| N2 | 14 mbar | 5 mbar | ||
| He | 12 mbar | 4.5 mbar | ||
| H2 | 6 mbar | 2 mbar | ||
| Maximum gas throughput 1. 2. 3. | ||||
| w/ HV pressure of 0.1 mbar | ||||
| N2 | 22 mbar l/s | 24 mbar l/s | ||
| Ar | - | 27 mbar l/s | ||
| w/ nominal rotation speed (water cooling) | ||||
| N2 | 12 mbar l/s | 18 mbar l/s | ||
| Ar | 7 mbar l/s | 12 mbar l/s | ||
| w/ voltage range 90 - 132 VAC | ||||
| N2 | 9 mbar l/s | 15 mbar l/s | ||
| Vertex power characteristics lines 4. | ||||
| A | 520 W / 600 Hz | |||
| B | 560 W / 450 Hz | |||
| C | 480 W / 600 Hz | |||
| D | 520 W / 348 Hz | |||
| Final pressure 5. | ||||
| w/ diaphragm vacuum pump | < 5 x 10-10 mbar | < 1 x 10-8 mbar | ||
| w/ rotary vane vacuum pump | ||||
| w/ UniDryTM | ||||
| Lubricant | ||||
| Type 6. | F3 | |||
| Filling volume | 65 cm3 | |||
| Cooling water consumption w/ water at 15°C 7. | 100 l/h | |||
| Cooling water temperature | 5-25°C | |||
| Permissible ambient temperature w/ air cooling | 0-35°C | - | ||
| Power consumption | ||||
| Casing heating unit | 170 W | |||
| TMS heating | - | 1,000 W | ||
| Weight | 49 / 51 kg | |||
| Permissible magnetic field | 3 mT | |||
| Connection voltage | 140 ± 5% VDC | |||
| Current consumption | 4.3 A | |||
| Power | 600 W | |||
| Protection class 8. | IP 30 | |||
| Relative humidity of air | 5 - 85% non condensing | |||
- Measured with a rotary vane vacuum pump > 5m3/h
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer TMH/TMU 1601 P/PC - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum TMH 1601 P Turbomolecular Pump - REBUILT PMP02892 / PM P02 892 DN 250 ISO-K
