Polycold MaxCool 4000 H - REBUILT

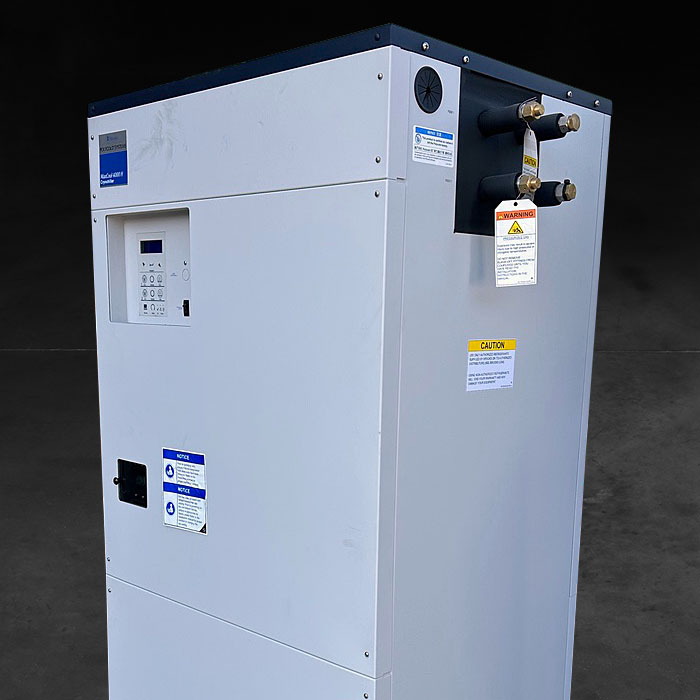

Brooks Polycold Systems MaxCool 4000 H Cryochiller - REBUILT
Edwards brands the recent Polycold cryochiller as the MaxCool 4000 H. Water vapor is condensed on a baffle that freezes until the next vent cycle. It provides 4,000 Watts of cooling at -98°C
Questions? send an email to our sales team!
Specifications
MaxCool 2000
MaxCool 2500 L
MaxCool 4000 H
Maximum cooling capacity
2,000 W
2,500 W
4,000 W
Temperature at maximum cooling capacity
-111°C
-120°C
-98°C
Coldest temperature
-142°C
-145°C
-133°C
Ultimate operating pressure (25% of max pumping speed)
3E-9 Torr
8E-10 Torr
5E-8 Torr
Typical cold trap area
1.1 m2
1.4 m2
2.2 m2
Maximum water vapor pumping speed from typical cold trap area
163,900 l/s
208,600 l/s
327,800 l/s
Conservative maximum cold trap area*
1.5 m2
2.0 m2
2.8 m2
Electrical consumption (standby mode)
5.5 kW
11.4 kW
12.0 kW
Electrical consumption (cool mode, typical load)
6.2 kW
13.9 kW
12.4 kW
Electrical consumption (cool mode, max load)
8.8 kW
19.2 kW
Cooling water flow for 13°C
6.8 l/min
15.1 l/min
Cooling water flow for 18°C
9.1 l/min
18.2 l/min
Cooling water flow for 24°C
13.6 l/min
27.3 l/min
Cooling water flow for 29°C
27.6 l/min
54.1 l/min
European PED-compliant
Yes
Nontoxic refrigerants
Yes
Non-flammable refrigerants
Yes
Type
Label
Description
Download
Polycold MaxCool Series - REBUILT
Installation & Operation Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks Polycold Systems MaxCool 4000 H Water Vapor Cryochiller - REBUILT
MODEL: MaxCool 4000H 2CKT HV PKR NISO
