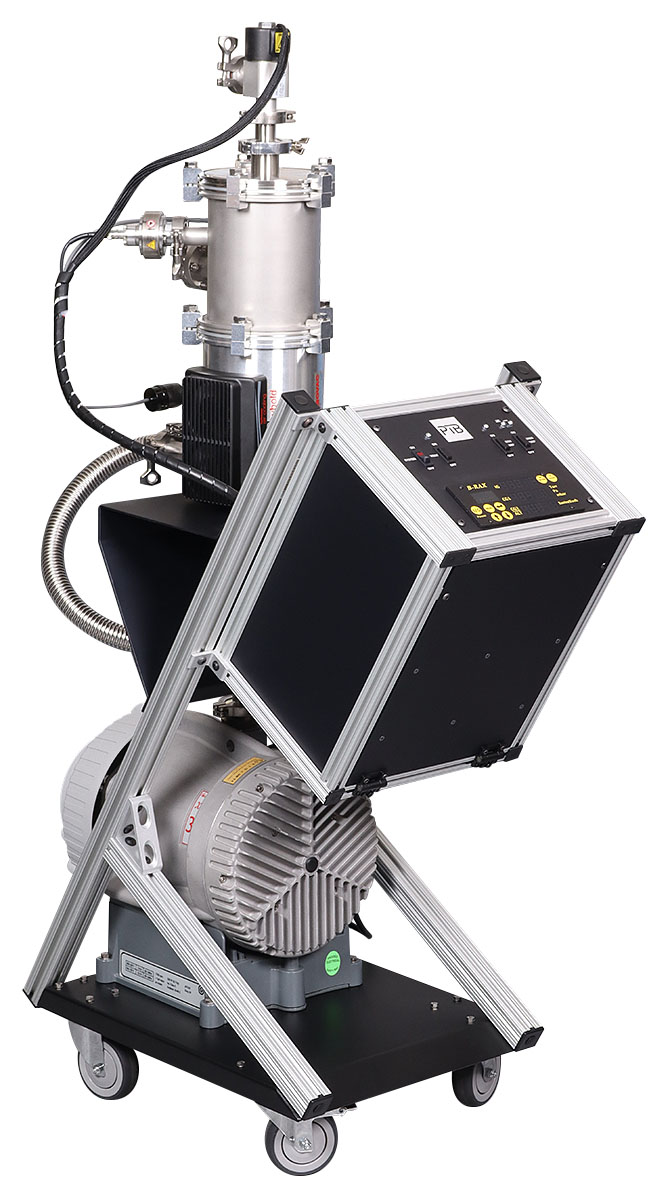

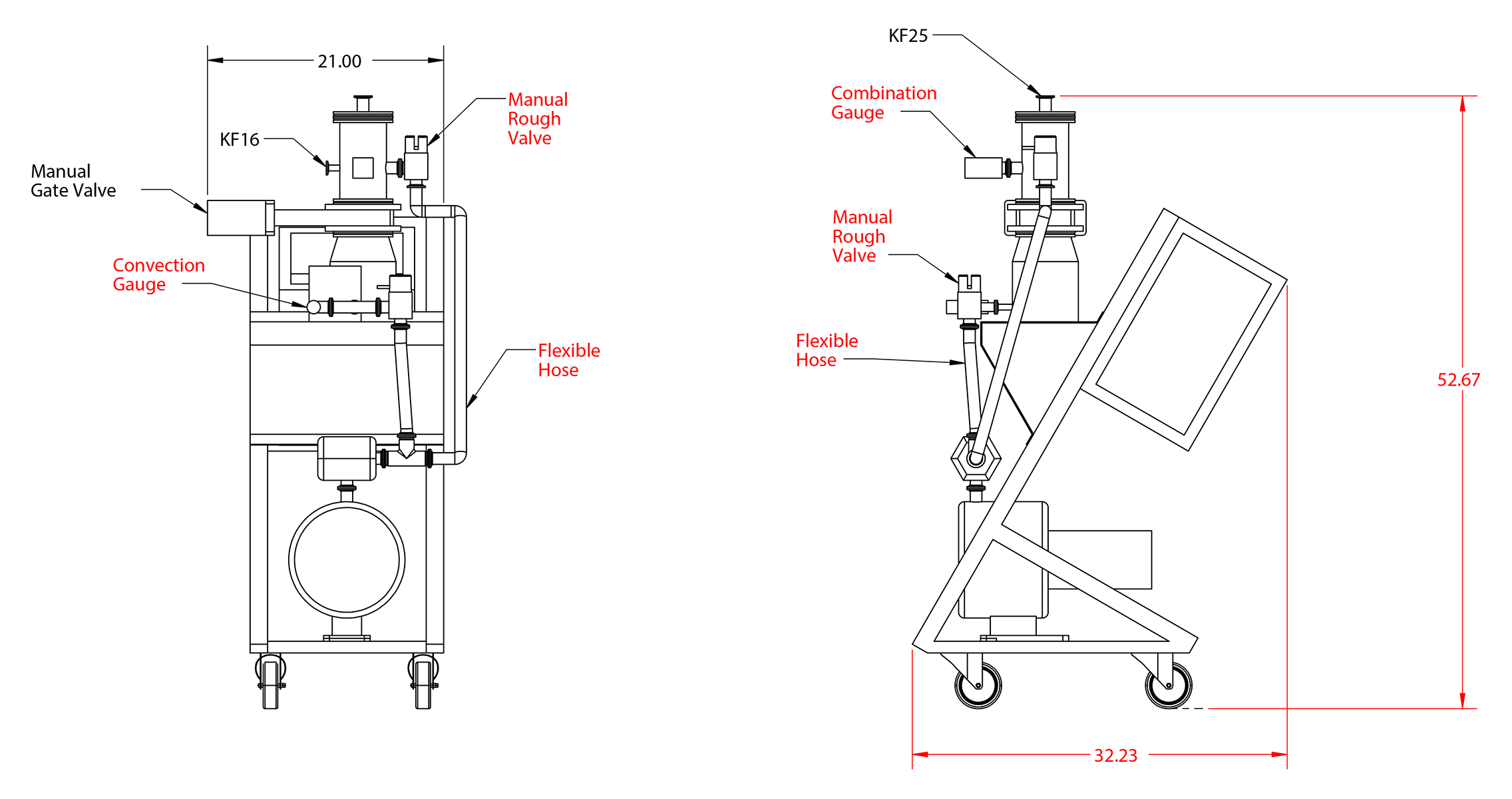

The TCVS is a high vacuum mobile system, suitable for a wide array of applications. The TCVS’s modular design and mobility easily allows the movement and configuration of the system to your specific needs.
- AC input 115 VAC 20-amp receptacle
- User vacuum interface height adjustable from 45.78” to 55.54”
- Width varies based on backing pump selected

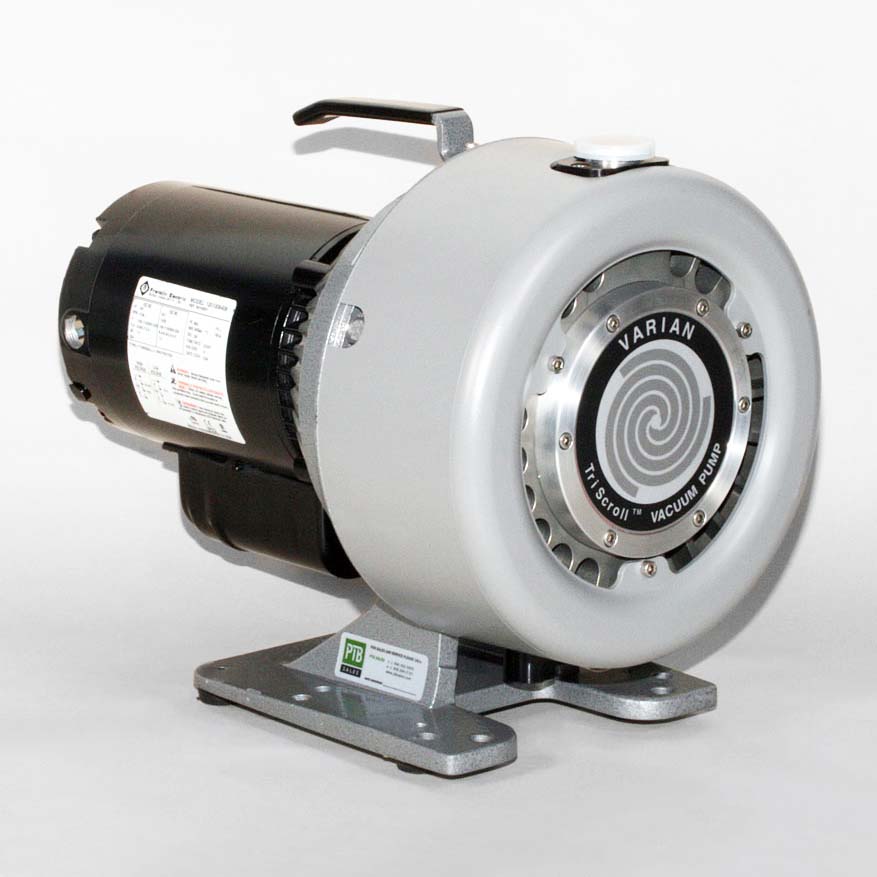

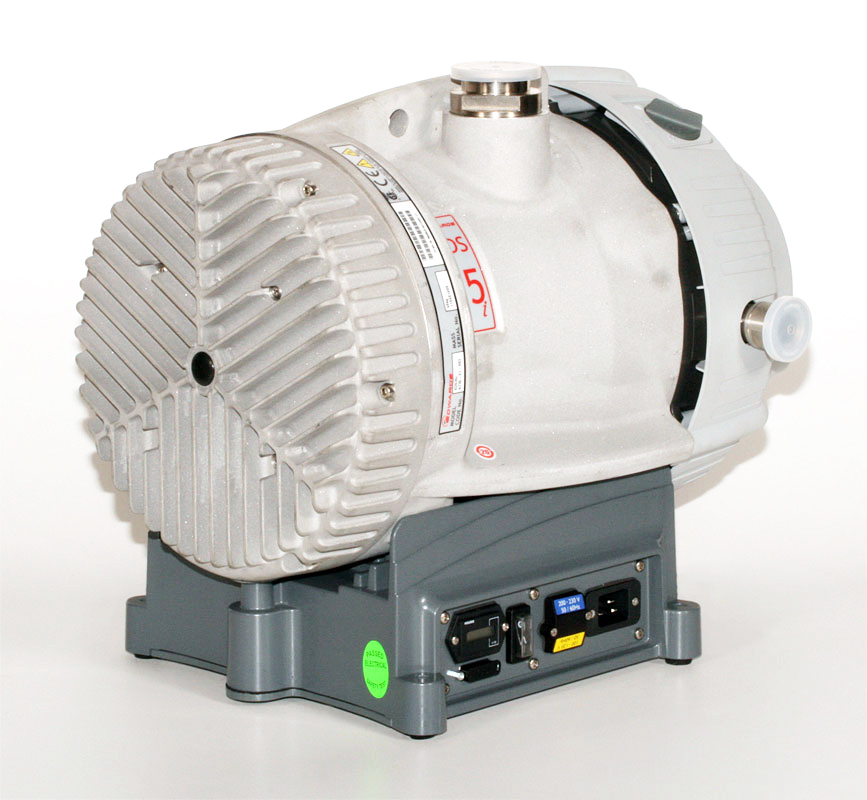

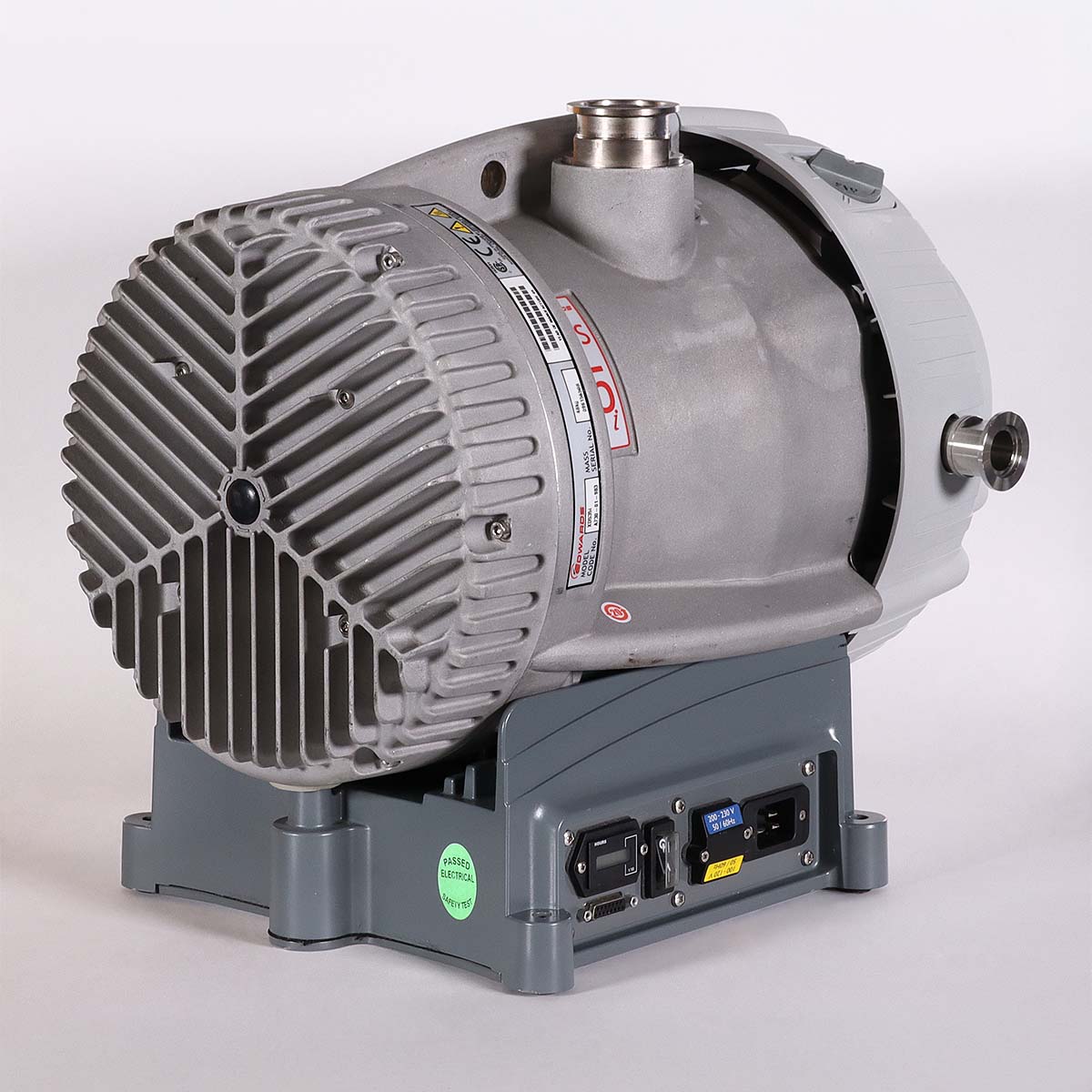

- Dry scroll backing pump for oil free operation

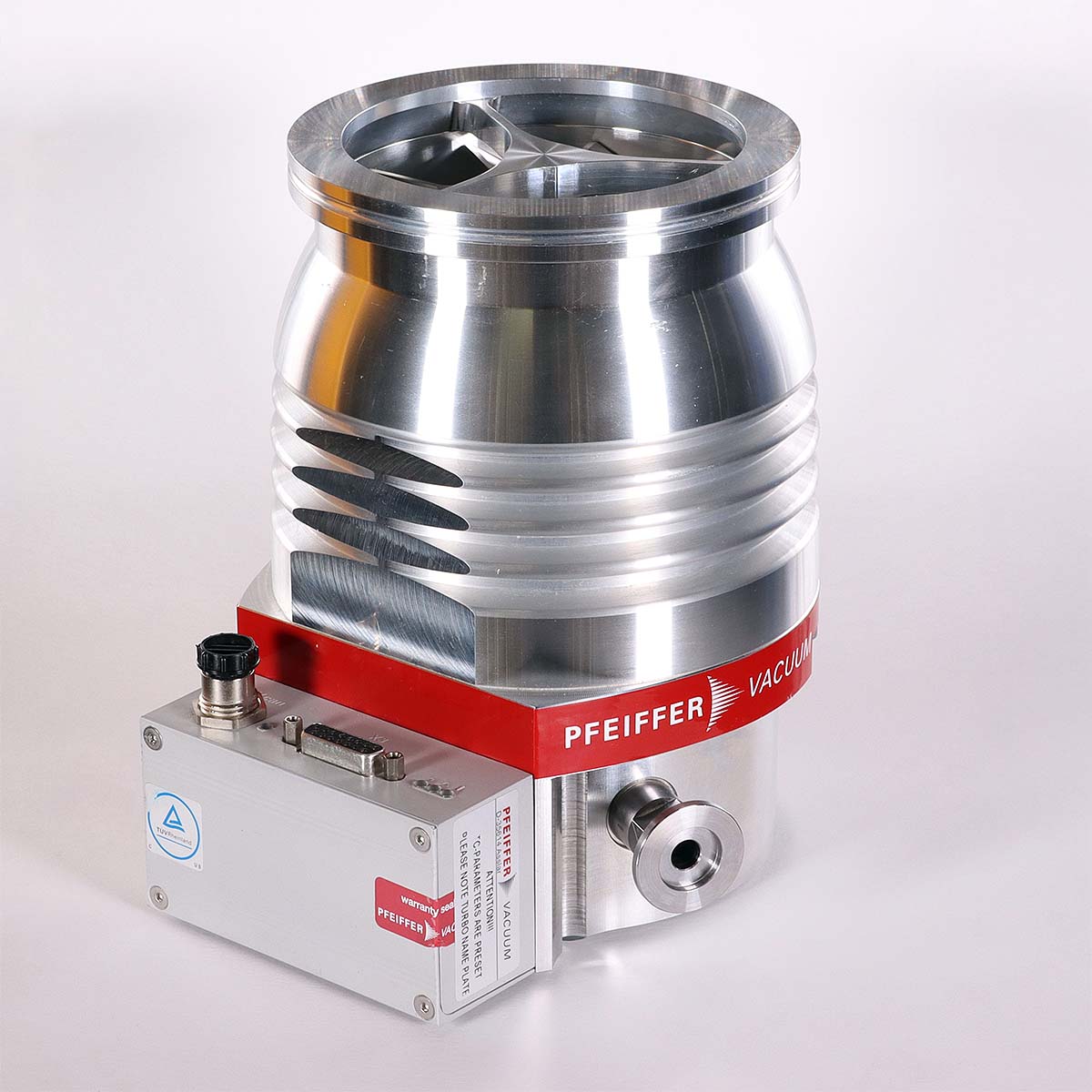

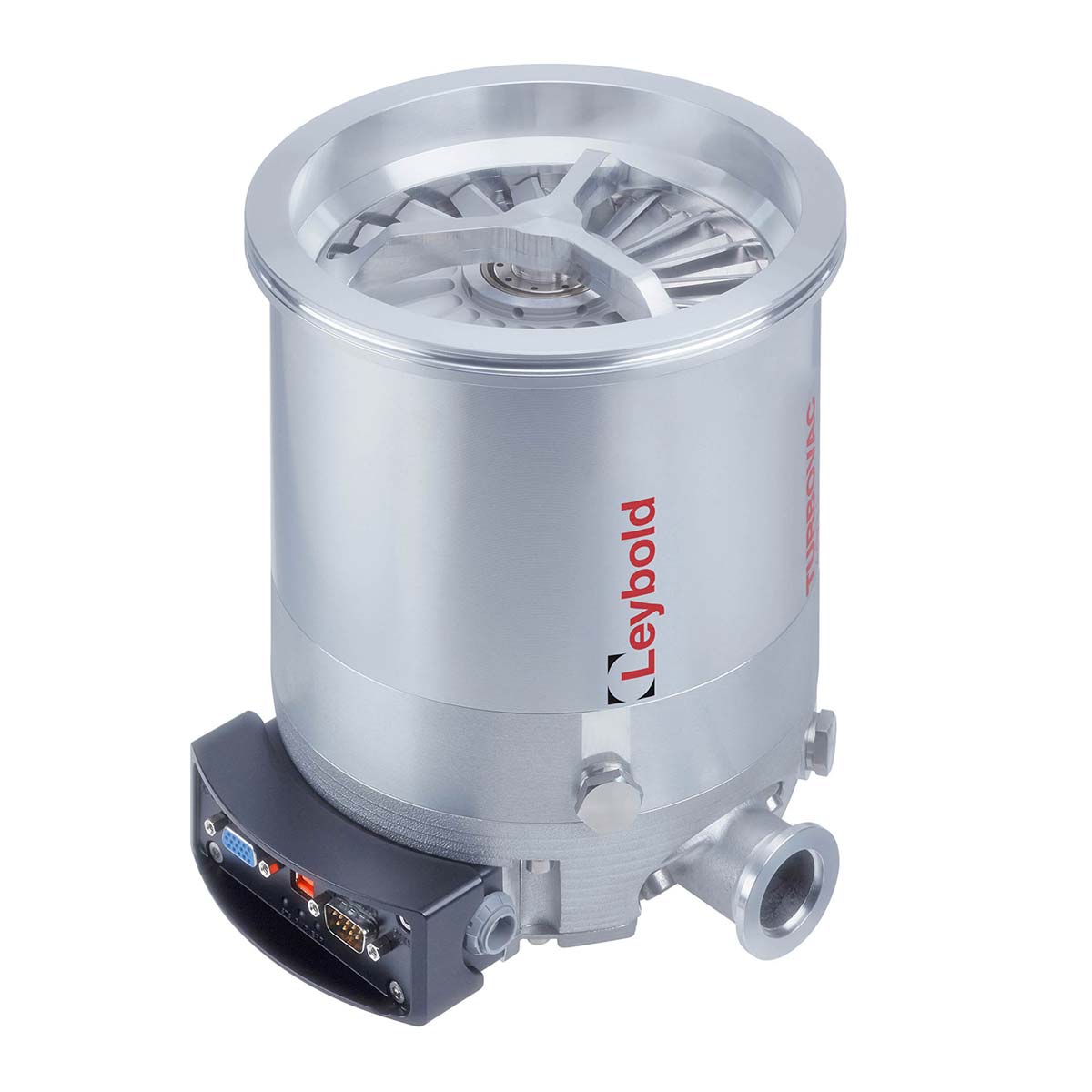

- 40 to 1,000 liter/second pumping capability based on turbo pump selected
- Adjustable shelf allowing for ease of attachment to your chamber
- Locking casters to secure the TCVS in place

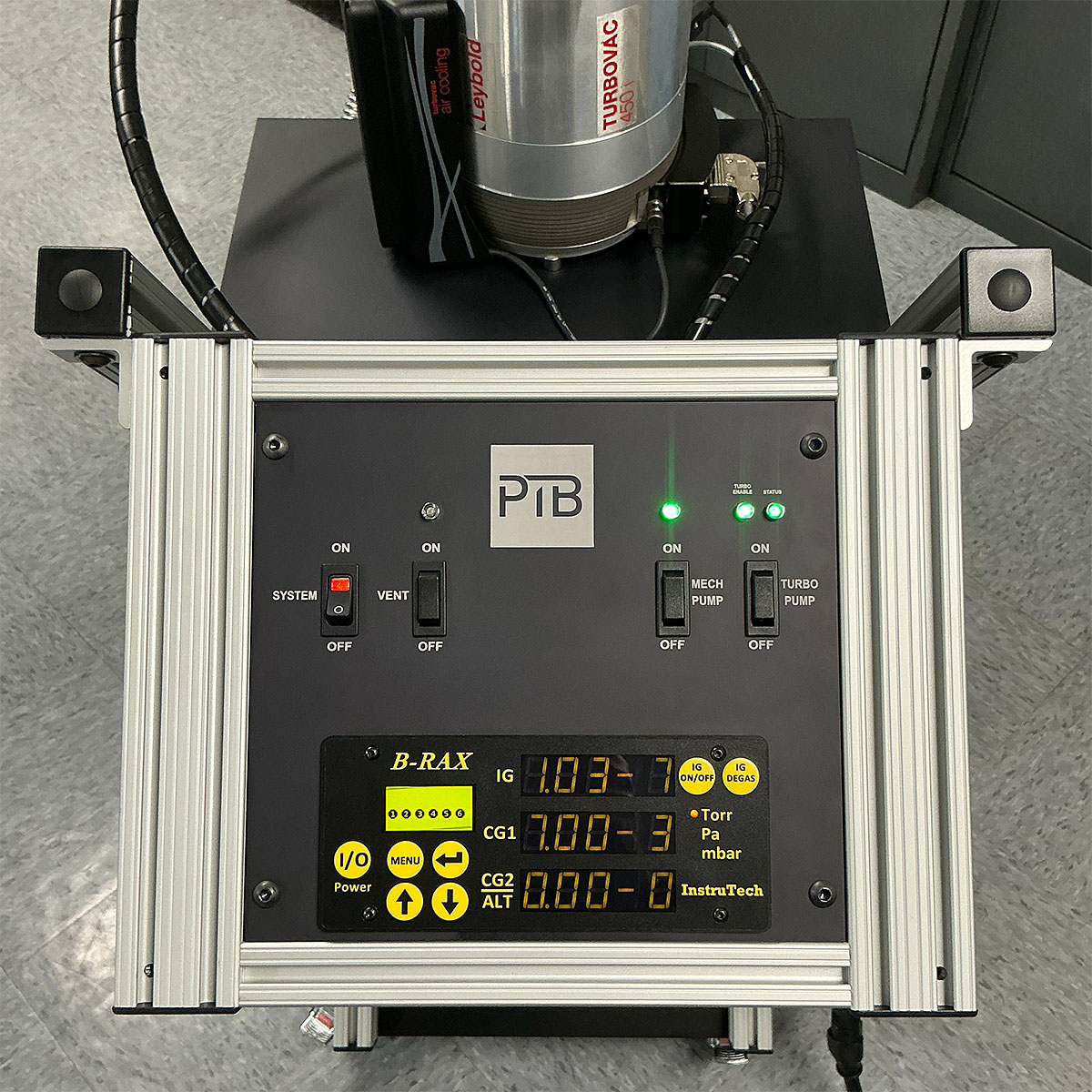

- Micro controller allowing for custom configurations and interlocks
- User selectable operation
- Single button operation for automated pump down
- The turbo pump will automatically start once the foreline pressure reaches the users predefined setting
- Single button operation with verification for venting the turbo pump
- Ability to enable the rough pump independently for added flexibility
- Hardware and software interlocks to ensure proper shutdown procedure in the event of power disturbances
- User serviceable design for ease of maintaining your backing pump
Questions? Please contact our Sales or Engineering Department directly.
- Working with our engineering team we can specify and design a vacuum solution that meets your requirements
- Turbomolecular and roughing pump sized for your specific application
- Available in all standard flange sizes

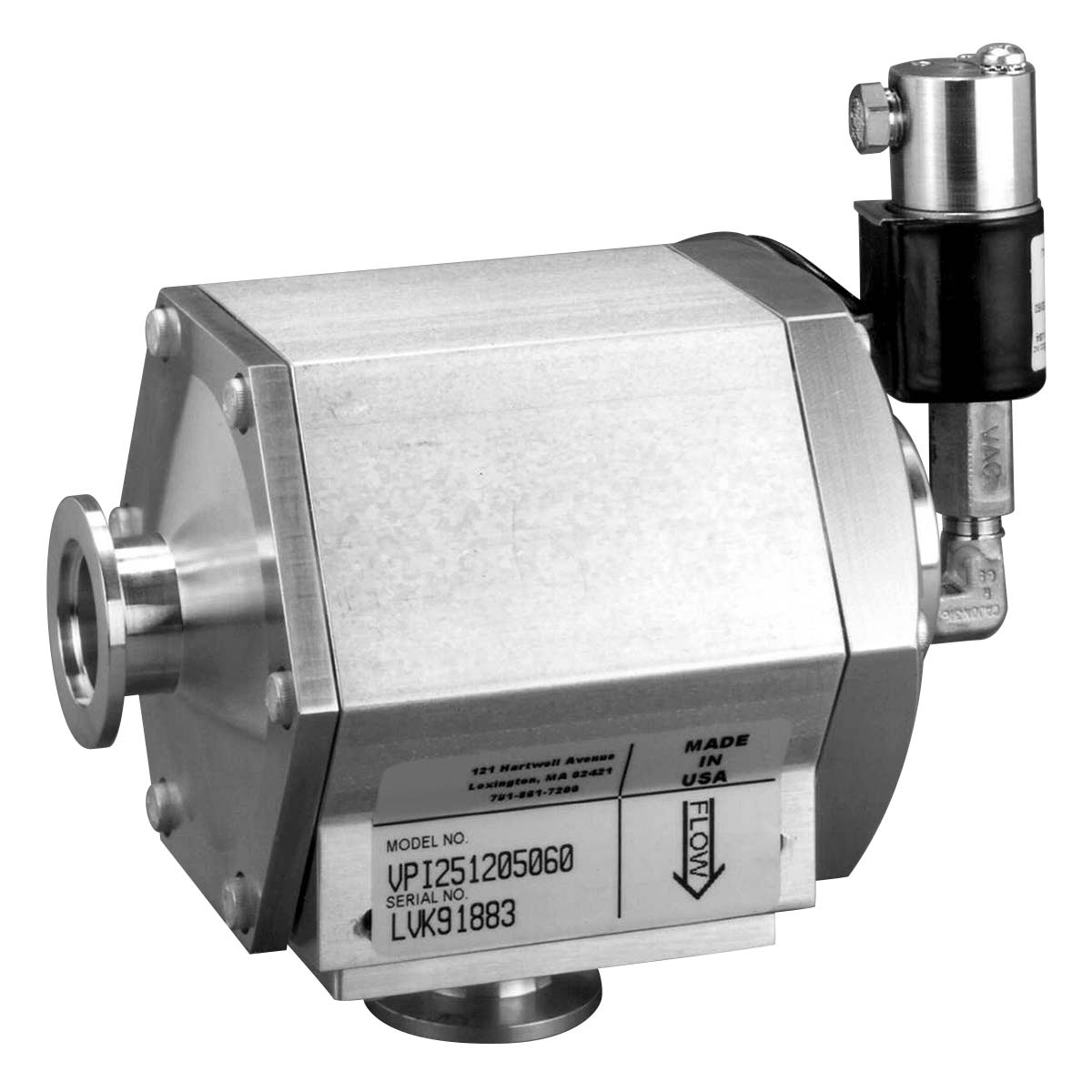

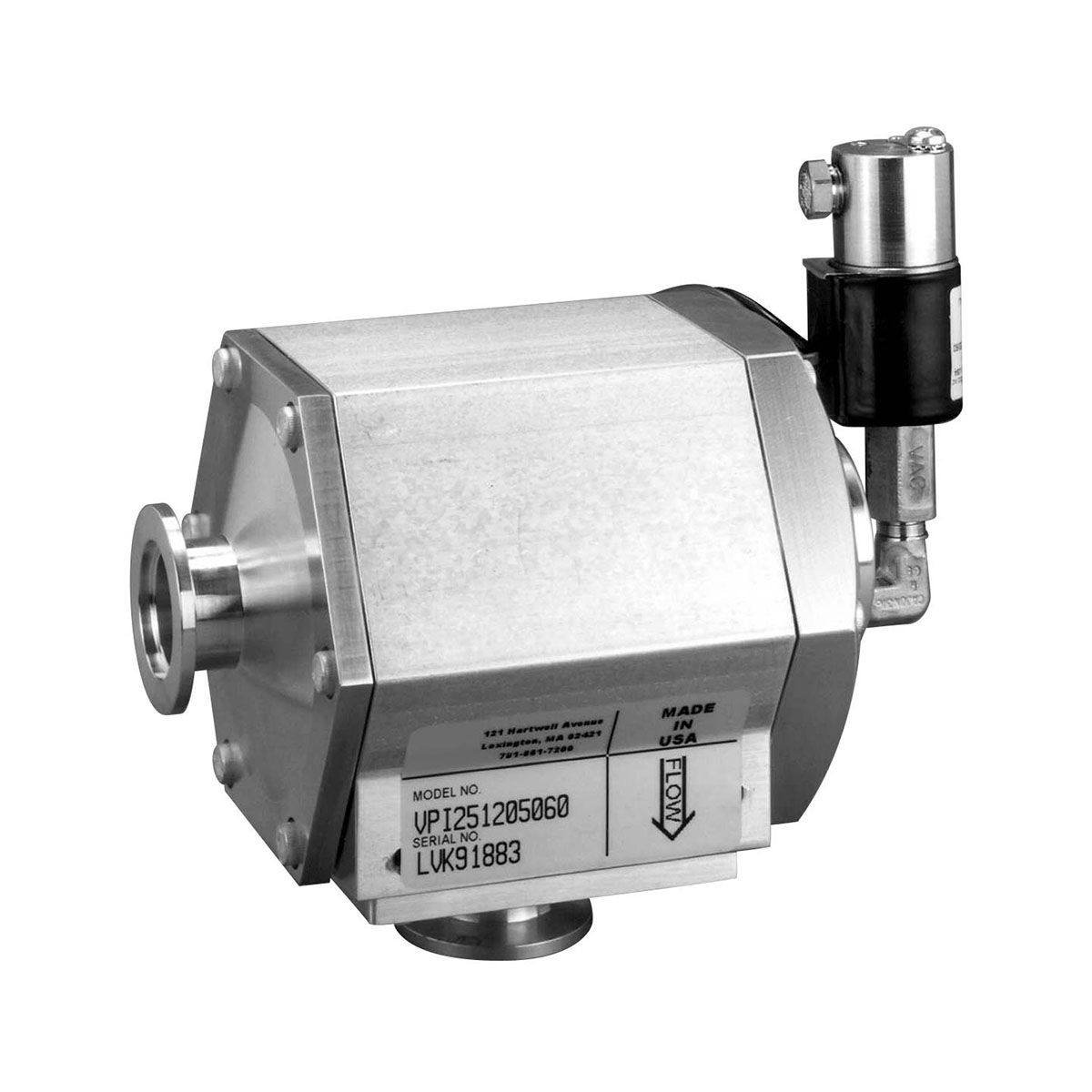

- Ports with isolation valves can be added for attaching RGA’s, calibrated helium leaks and various instrumentation
- Wide selection of vacuum gauges available to meet your specific integration requirements
Questions? Please contact our Sales or Engineering Department directly.
- Quantum Computing
- Research & Development Laboratories
- Universities
- High & Ultra High Vacuum Systems
- Industrial Vacuum Applications
Google engineers chose PTB Sales to provide a custom turbo vacuum pump system. We are excited that our system makes a cameo, 2 minutes into the video.
Questions? Please contact our Sales or Engineering Department directly.
PTB has a long history of providing Customized Vacuum Subsystem Solutions for our customers. We have a dedicated engineering team that works with each customer to understand specifications and requirements, create a design and build a vacuum subsystem to meet the situation. Our capability to provide the engineering solution you need coupled with our ability to provide high quality new or refurbished vacuum pumps allows us to deliver a total vacuum solution to you!
