Adixen Alcatel RSV 601 / 601B - REBUILT
Call for Price
| Weight | 428 lbs |
|---|---|
| Pumping Speed | 424 cfm |
| Ultimate Pressure | 2 x 10-4 mbar |
Adixen Alcatel RSV 601 / 601B Vacuum Blower - REBUILT

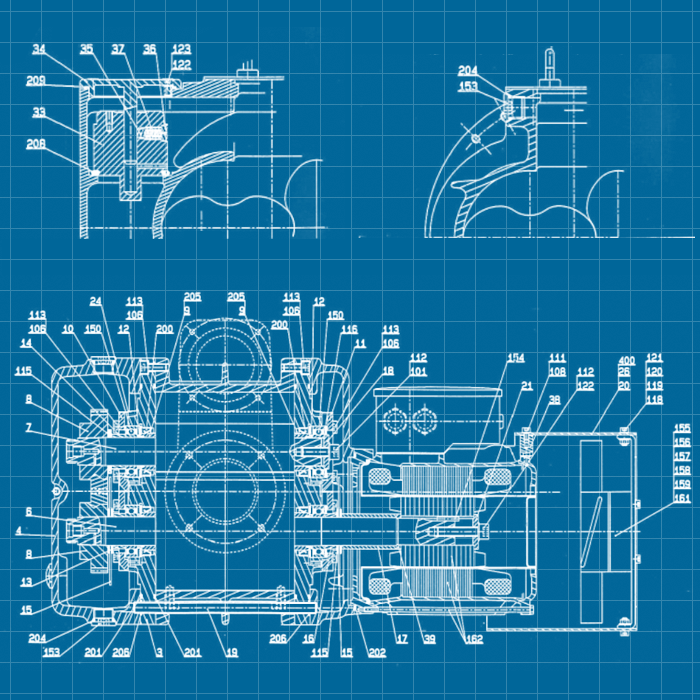

Roots vacuum boosters are positive displacement pumps operating according toan essentially isochoric compression cycle (constant volume transfer) with a high pumping rate in a pressure range between 10 and 10-2 mbar. The pumping mechanism consists of two ”figure-of-eight” pistons rotating in opposite directions and synchronised through a set of gears.
The two matched-profile pistons rotate without coming into contact with each other, with a clearance of about one tenth of mm.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
|
|
UNITY |
RSV 151 |
RSV 151B |
RSV 301 |
RSV 301B |
RSV 601 |
RSV 601B |
|
" Pumping speed at 3000 rpm |
m3/h |
150 |
150 |
300 |
300 |
600 |
600 |
|
" Maximum pumping at 50 Hz at 3000 rpm " Maximum pumping at 60 Hz at 3600 rpm (Whith 2 stage RP of pumping speed) |
m3/h |
120 (33) |
120 (33) |
240 (33) |
240 (33) |
420 (63) |
420 (63) |
|
m3/h |
145 (33) |
145 (33) |
290 (33) |
290 (33) |
500 (63) |
500 (63) |
|
|
" Rotating speed 50 Hz |
tr/mn |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
" Rotating speed 60 Hz |
tr/mn |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
|
" Total limit pressure |
mbar (1) |
2.10-4 |
2.10-4 |
2.10-4 |
2.10-4 |
2.10-4 |
2.10-4 |
|
" Partial limit pressure |
mbar (1) |
5.10-5 |
5.10-5 |
5.10-5 |
5.10-5 |
5.10-5 |
5.10-5 |
|
" Maxi. permissible differential pressure (∆p maxi.) |
mbar (2) |
100 |
|
60 |
|
40 |
|
|
" Maximale pressure at suction inlet |
mbar |
30 |
1000 |
15 |
1000 |
10 |
1000 |
|
" Leak rate |
mbar.l/s |
£10-7 |
£10-7 |
£10-7 |
£10-7 |
£10-7 |
£10-7 |
|
" Intake flange |
Pneurop |
DN63 |
DN63 |
DN63 |
DN63 |
DN100 |
DN100 |
|
" Delivery flange |
Pneurop |
DN63 |
DN63 |
DN63 |
DN63 |
DN100 |
DN100 |
|
" Motor power 50 Hz |
kW |
0,75 |
0,75 |
1,5 |
1,5 |
1,8 |
1,8 |
|
" Motor power 60 Hz |
kW |
0,90 |
0,90 |
1,7 |
1,7 |
2,1 |
2,1 |
|
" Supply voltage 50 Hz ∆ ( +6% -- 10% ) |
V |
200/240 |
200/240 |
200/240 |
200/240 |
200/240 |
200/240 |
|
" Supply voltage 50 Hz Y ( +6% -- 10% ) |
V |
380/415 |
380/415 |
380/415 |
380/415 |
380/415 |
380/415 |
|
" Supply voltage 60 Hz ∆ ( +6% -- 10% ) |
V |
200/240 |
200/240 |
200/240 |
200/240 |
200/240 |
200/240 |
|
" Supply voltage 60 Hz Y ( +6% -- 10% ) |
V |
380/480 |
380/480 |
380/480 |
380/480 |
380/480 |
380/480 |
|
" Oil capacity (vertical axis) |
l |
0,4 |
0,4 |
0,7 |
0,7 |
0,7 |
0,7 |
|
" Oil capacity (horizontal axis) |
l |
0,3 |
|
0,5 |
|
0,5 |
|
|
" Weight |
kg |
58 |
61 |
84 |
88 |
102 |
107 |
|
" Roots part number for ALCATEL 100 use ALCATEL 113 use |
|
793270 793271 |
793272 793273 |
793274 793275 |
793276 793277 |
793278 793279 |
793280 793281 |
- measured with ALCATEL 113 oil and 2 stage roughing pump (RP)
- for machines with by-pass valve
| Type | Label | Description | Download |
|---|---|---|---|
|
Adixen Alcatel RSV Series - REBUILT | User's Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Adixen Alcatel RSV 601 / 601B Vacuum Blower - REBUILT
