Agilent HLD BD15 - NEW
Call for Price

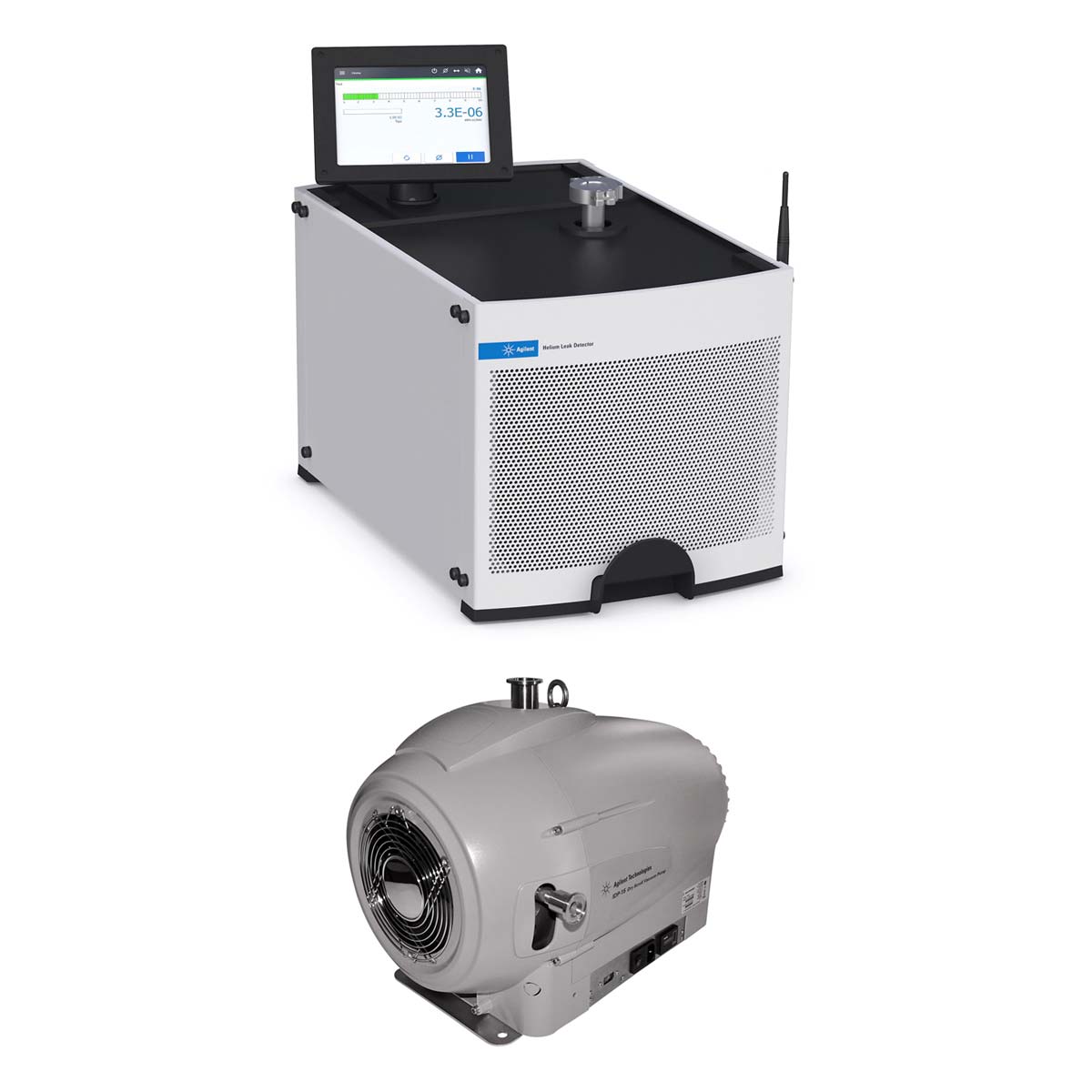

Agilent HLD BD15 Bench Dry Helium Mass Spectrometer Leak Detector - NEW
The Agilent HLD BD15 dry leak detector uses a mass spectrometer tuned to detect helium, which is used as a tracer gas to locate and/or measure very small leaks in enclosed devices or systems. The HLD BD15 is both a precise instrument and a robust workhorse, featuring an easy-to-use touch screen interface and menu structure that quickly connect users to powerful leak detection capabilities. Built-in application setups shorten test cycles, and setups can be saved to assure repeatability. It fits easily on a table or bench, and includes an oil-free Agilent IDP-15 dry scroll pump, with a pumping speed of 15 m3/hour, for rapid evacuation of test parts and systems and rapid clean-up of ambient helium between test cycles. Hardware required to connect the IDP-15 to the HLD BD15 is also included, allowing the pump to be mounted on the floor or where convenient.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Model | PD03 | PR02 | BD15 | MD15 | BR15 | MR15 | BR30 | MR30 | BD30 | MD30 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Primary pump and pumping speed | IDP-3 3m3/hr |
DS 40M 2m3/hr |
IDP-15 15m3/hr |
DS 302 15m3/hr |
DS 602 30m3/hr |
TriScroll 620 30m3/hr |
|||||
| Detectable mass | 4 | ||||||||||
| Pumping speed for helium | 1.8 l/s | ||||||||||
| Sensitivity | 5 x 10-12 mbar•l/s | ||||||||||
| Display range | 10-4 - 10-11 | ||||||||||
| Maximum test port pressure | 13 mbar | ||||||||||
| Wireless remote | |||||||||||
| Eight languages | Chinese, English, French, German, Japanese, Korean, Russian, Spanish | ||||||||||
| Analog, RS232 and discrete IO interface options | |||||||||||
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent G8610A - G8612D Series - NEW | Operation Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent HLD BD15 G8612C Bench Dry Helium Mass Spectrometer Leak Detector - NEW G8612-64004 115 VAC 6.0/4.2 Amp 50/60 Hz G8612-64005 230 VAC 2.8/3.0 Amp 50/60 Hz PHD-4 Sniffer HLD Wireless Remote
