Agilent MS-101 - NEW
| Weight |
196 lbs |
| Pumping Speed |
109 m3/h |
| Ultimate Pressure |
≤ 8 x 10-2 Torr |
|---|
Agilent Varian MS-101 Rotary Vane Vacuum Pump - NEW
- Powerful and efficient industrial performance and stability for a wide range of applications
- Environmentally friendly and cost-effective due to reduced power requirements
- Highly efficient oil circulation system ensures excellent lubrication and sealing in all critical areas
- Cover design optimizes cooling air channels
- Floating valve for better oil recovery and integrated heat exchanger carries away excess heat
- Robust, high quality components and fittings ensure superb sealing
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

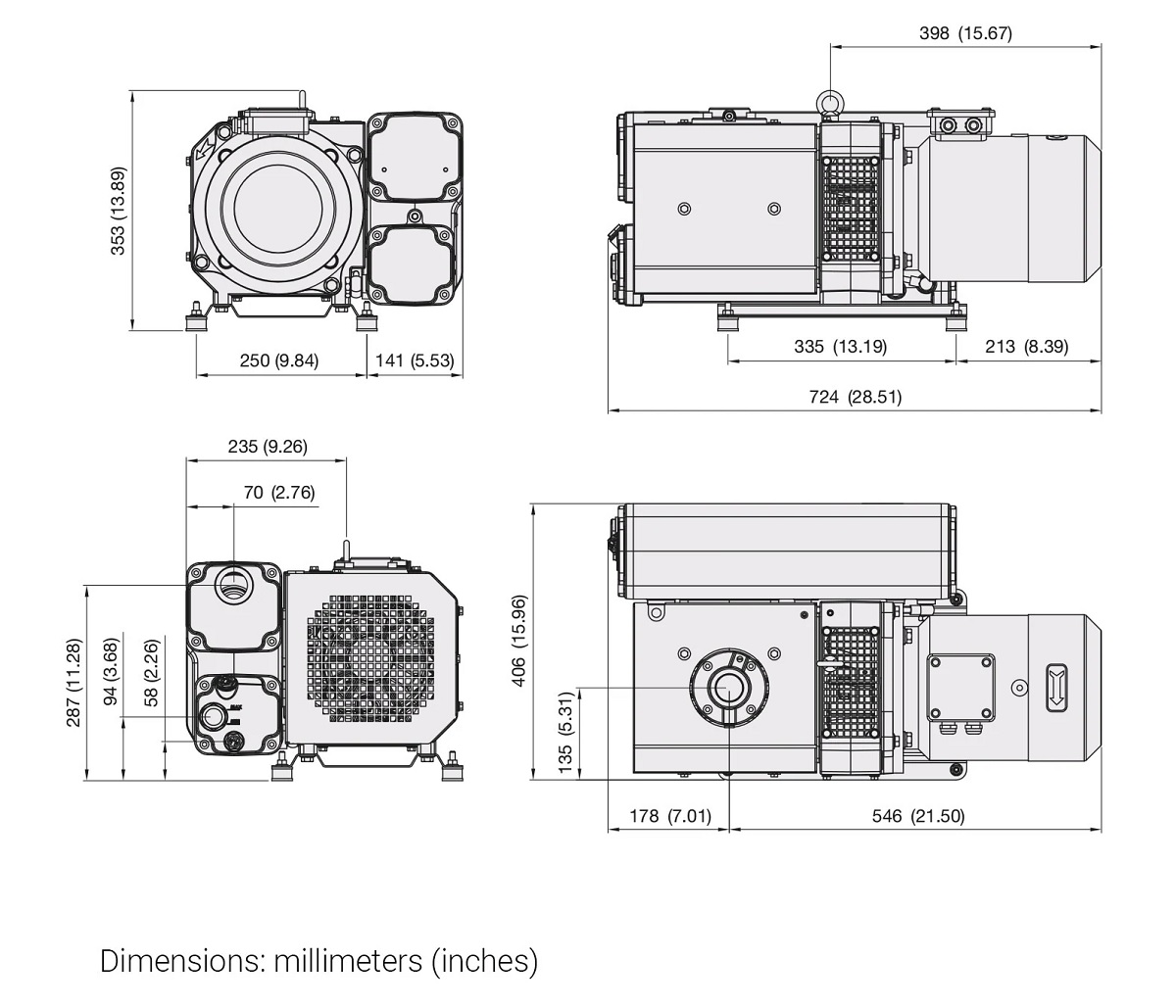

| Dimensions (WxHxL) |
406 mm x 353 mm x 724 mm |
| Exhaust Connection |
1 ¼ inch NPT |
| Free Air Displacement |
76 cfm |
| Height |
353 mm |
| Inlet Connection |
1 ¼ inch NPT |
| Input Voltage |
YY230/Y460V, 60Hz |
| Length |
724 mm |
| Noise Level |
68 at 60Hz dB(A) |
| Oil Capacity Min/Max |
3 L |
| Pumping Speed (60 Hz) |
109 m/h
64 cfm
|
| Rotational Speed at 50Hz |
1800 rpm |
| UNSPSC Code |
40151502 |
| Ultimate Partial Pressure |
≤0.1 mbar |
| Ultimate Total Pressure with Gas Ballast |
≤0.5 mbar |
| Water Vapour Pumping Capacity |
3000 g/h |
| Water Vapour Tolerance |
40 mbar |
| Weight |
196 lb |
| Width |
406 mm |
Specifications
