Agilent Varian MS40+ - REBUILT

Name: Agilent Varian MS40+ - REBUILT
Brand: Agilent Varian
SKU: REBUILT_MS40+

Be the first to review this product

In stock

Only %1 left

SKU

REBUILT_MS40+

Request For Quote

Weight	73 lbs
Pumping Speed	29.2 cfm
Ultimate Pressure	≤0.05 mbar

Dimensions

Description

Agilent Varian MS40+ Rotary Vane Vacuum Pump - REBUILT

The environmentally-friendly Agilent MS40+ rotary vane pump is the latest from the experts in vacuum technologies. With a pumping speed of more than 45 m³/hr it’s the highest in its class. Sophisticated electronics and excellent mechanical design allow high capacity roughing with a small footprint. General applications served by the MS40+ pump are electron microscopy, mass spectrometry including LC-MS/ICP-MS/ GC-TOF-MS and other scientific instrumentation.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

MS40+	9499225	9499240	9499241
Free air displacement	828 l/min (29.2 cfm / 49.7 m³/h)

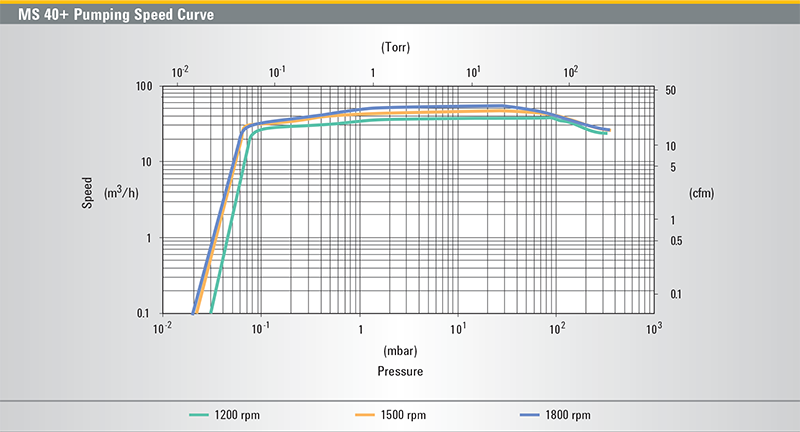

Pumping speed (at 5 mbar inlet pressure)	40 m³/h
Ultimate total pressure*	5 x 10^-2 mbar
Oil capacity min/max	1 liter
Motor rating 3-phase	0.75 kW
Noise level with gas ballast closed	≤ 62 dB(A)
Oil temperature (pump operating)	60°C
Oil temperature (pump operating)	140°F
IP Value	-	20	-
Installation category	-	II	-
Pollution degree	-	2	-
Operating temperature range	12-40°C
Nominal rotational speed	1,450 rpm
Weight kg (lbs)	33 (73)
Inlet flange	25KF DN	40KF DN
Exhaust flange	25KF DN

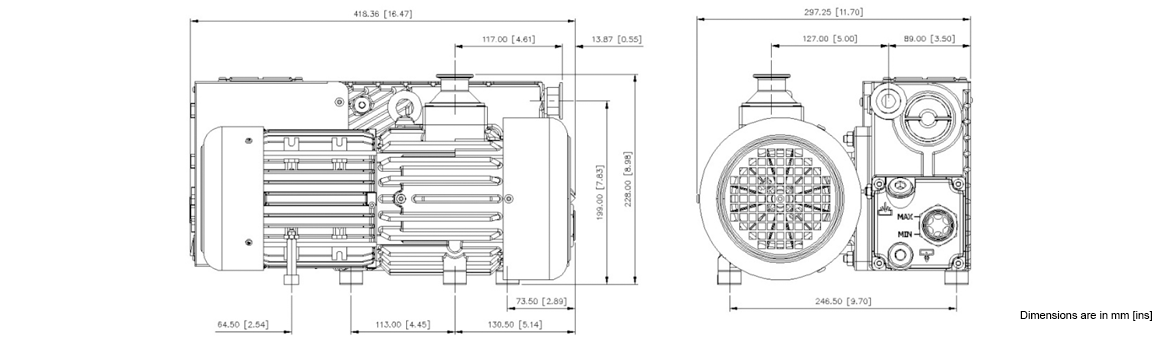

Dimensions	418 x 297 x 228 mm
Nominal Input Voltage	200-240V
Input frequency	50/60 Hz
Max input power	1,200 VA
Internal Main Fuse (TT type)	12.5 A

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent MS40+ - REBUILT	User Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian MS40+ Rotary Vane Vacuum Pump - REBUILT

9499225 / 949-9225  MS40+ 25KF inlet, I/O and RS232/485
8499240 / 849-9240  MS40+ 40KF inlet
9499240 / 949-9240  MS40+ 40KF inlet, I/O and RS232/485, oil level sensor
9499241 / 949-9241  MS40+ 40KF inlet, base version
9499241M002 / 949-9241M002
9499225M004 / 949-9225M004  MS40 rough pump, for LC-MS, universal voltage
9499225M005 / 949-9225M005  MS40 rough pump, for ICP-MS, universal voltage
