Agilent RPS / MS-301 - NEW
Weight
1300 lbs
Pumping Speed
1000 cfm
Ultimate Pressure
≤ 5 x 10-3 mbar
Agilent RPS / MS-301 Roots Vacuum Pump System - NEW
Roots Pumping Systems (RPS) consist of one MS rotary vane pump and one RP roots pump, assembled on a dedicated frame, and connected in series with a flexible hose. This assembly is shipped with the pumps mounted on the frame and leak checked. Both pumps are equipped with motor.
State-of-the-art, high performance Agilent Roots pumps are ideal for use in demanding industrial applications:
Highest compression ratio
Agilent Roots pumps can withstand high mechanical loads reducing pumpdown cycles
Lowest base pressure: 5 x 10-3 mbar (4 x 10-3 Torr)
Questions? send an email to our sales team!
Specifications
RPS-501/301
RPS-751/301
RPS-1001/301
RPS-1401/301
Nominal pumping speed
600 m3 /h (350 cfm) @ 60 Hz3 /h (300 cfm) @ 50 Hz
900 m3 /h (530 cfm) @ 60 Hz3 /h (440 cfm) @ 50 Hz
1,200 m3 /h (710 cfm) @ 60 Hz3 /h (590 cfm) @ 50 Hz
1,700 m3 /h (1,000 cfm) @ 60 Hz3 /h (840 cfm) @ 50 Hz
Ultimate total pressure (gas ballast closed)
≤ 7 x 10-3 mbar (≤ 4 x 10-3 Torr)
≤ 5 x 10-3 mbar (≤ 4 x 10-3 Torr)
Roots pump start up pressure
≤ 200 mbar (≤ 152 Torr)
≤ 80 mbar (≤ 60 Torr)
≤ 50 mbar (≤ 38 Torr)
≤ 30 mbar (≤ 23 Torr)
Power
2.6 + 7.5 kW (3.5 + 10.0 hp) @ 60 Hz
3.6 + 7.5 kW (4.8 + 10.0 hp) @ 60 Hz
4.8 + 7.5 kW (3.5 + 10.0 hp) @ 60 Hz
6.3 + 7.5 kW (3.5 + 10.0 hp) @ 60 Hz
Power supply voltage
Δ230/Υ400 V @ 50 Hz
Δ230/Υ400 V @ 50 Hz
Noise level*
74 / 76 dB(A)
Oil charge
1.1 + 7.0 liter (1.16 + 7.4 qt)
1.5 + 7.0 liter (1.6 + 7.4 qt)
Working ambient temperature range
12 to 40°C (54 to 105°F)
Storage temperature
-15 to 50°C (5 to 122°F)
-20 to 70°C (-4 to 158°F)

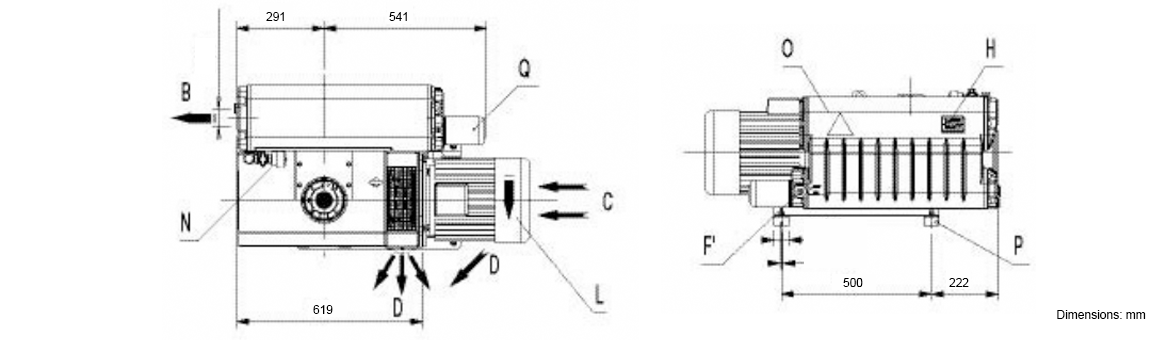

Dimensions
750 x 1,048 x 1,086 / 750 x 1,088 x 1,086 mm
750 x 1,130 x 1,175 mm
750 x 1,153 x 1,195 mm
750 x 1,289 x 1,195 mm
Weight
445 kg (981 lbs) @ 60 Hz
470 kg (1,040 lbs) @ 60 Hz
530 kg (1,170 lbs) @ 60 Hz
590 kg (1,300 lbs) @ 60 Hz
Specifications
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent RPS / MS-301 Vacuum Pump System - NEW
X3755-64000 RPS-501/301 230/400V 50Hz
X3755-64008 RPS-501/301 230/460V 60Hz (US version)
X3755-64012 RPS-501/301 220/380V 60Hz
X3755-64001 RPS-751/301 230/400V 50Hz
X3755-64009 RPS-751/301 230/460V 60Hz (US version)
X3755-64013 RPS-751/301 220/380V 60Hz
X3755-64002 RPS-1001/301 230/400V 50Hz
X3755-64004 RPS-1001/301 400/690V 50Hz
X3755-64006 RPS-1001/301 400/690V 50Hz - 460V 60Hz
X3755-64010 RPS-1001/301 230/460V 60Hz (US version)
X3755-64014 RPS-1001/301 220/380V 60Hz
X3755-64003 RPS-1401/301 230/400V 50Hz
X3755-64005 RPS-1401/301 400/690V 50Hz
X3755-64007 RPS-1401/301 400/690V 50Hz - 460V 60Hz
X3755-64011 RPS-1401/301 230/460V 60Hz (US version)
X3755-64015 RPS-1401/301 220/380V 60Hz
