Agilent RPS / MS-631FL - NEW

Name: Agilent RPS / MS-631FL - NEW
Brand: Agilent Varian
SKU: NEW_RPS/MS631FL

Be the first to review this product

Call for Price

In stock

SKU

NEW_RPS/MS631FL

Request For Quote

Weight	2511.07 lbs
Pumping Speed	3465 m3/h
Ultimate Pressure	≤ 7 x 10^-3 mbar

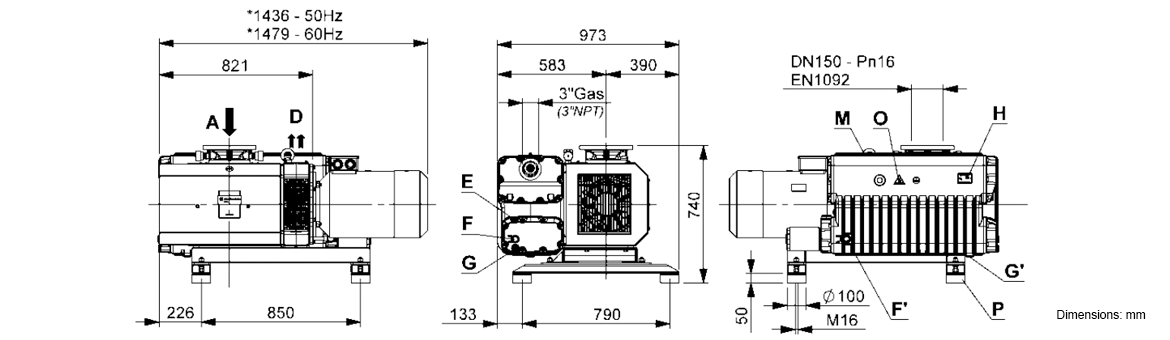

Dimensions

Description

Agilent Varian RPS / MS-631FL Frameless Rotary Vane Vacuum Pump System - NEW

Single stage, oil lubricated rotary vane pump, that can be directly coupled to an Agilent Roots pump (up to RP-3001 size) without the need of a frame. Ideal for thin-film coatings, vacuum meallurgy, helium leak detection and electron beam welding.

Anti-suckback valve prevents system contamination
Floating oil recovery valve
Carbon composite vanes extend pump life
Air cooled
Oil recirculation system
Minimum footprint
Easy to service

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Technical Data	Units	RPS3001-631FL
NOMINAL SPEED*	m3/h (at 50 Hz)	2890
	m3/h (at 60 Hz)	3465
ULTIMATE TOTAL PRESSURE WITH GAS	mbar	≤ 7 * 10-3
BALLAST VALVE CLOSED* (absolute)	Pascal	≤ 7 * 10-1
ULTIMATE TOTAL PRESSURE WITH GAS	mbar	≤ 2 * 10-2
BALLAST VALVE OPEN* (absolute)	Pascal	≤ 2
START UP PRESSURE RP3001 (absolute)	mbar	< 36
FITTED MOTOR POWER ** (MS + RP)	kW at 50 Hz	15 + 11 (400 V)
	kW at 60 Hz	18.5 + 11 (460 V)
NOISE PRESSURE LEVEL	dB(A) at 50 Hz	77,5
(According to UNI EN ISO 2151 standard)	dB(A) at 60 Hz	78,5
OIL CAPACITY (MS + RP) nominal	l	22 + 2,5
WEIGHT with 3 ph 50 Hz motor	Kg (lb)	1052 (2317.23)
with 3 ph 60 Hz motor	Kg (lb)	1140 (2511.07)

According to PNEUROP standard 6602

** Valid for temperature up to 40 °C and altitudes lower than 1000 m
Specifications

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian RPS / MS-631 Vacuum Pump System - NEW

X3756-64002  RPS-2001/631  400/690V 50Hz
X3756-64007  RPS-2001/631  400/690V 50Hz - 460V 60Hz
X3756-64012  RPS-2001/631  230/460V 60Hz (US version)
X3756-64017  RPS-2001/631  220/380V 60Hz
X3756-64003  RPS-3001/631  400/690V 50Hz
X3756-64008  RPS-3001/631  400/690V 50Hz - 460V 60Hz
X3756-64013  RPS-3001/631  230/460V 60Hz (US version)
X3756-64018  RPS-3001/631  220/380V 60Hz
X3756-64004  RPS-4001/631  400/690V 50Hz
X3756-64009  RPS-4001/631  400/690V 50Hz - 460V 60Hz
X3756-64014  RPS-4001/631  230/460V 60Hz (US version)
X3756-64019  RPS-4001/631  220/380V 60Hz
