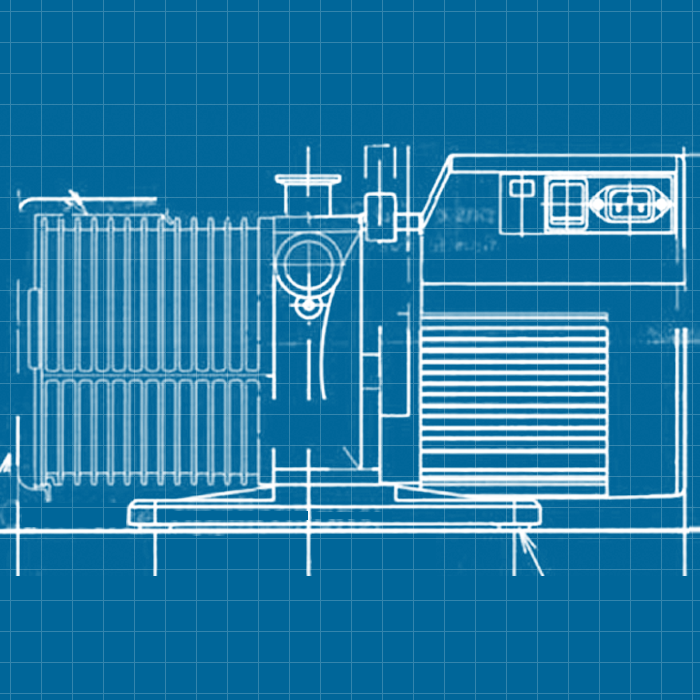

Agilent Varian SD 300 / 301 - REBUILT
Call for Price
In stock
SKU
REBUILT_SD300/301
| Weight | 59.5 lbs |
|---|---|
| Pumping Speed | 10.6 cfm |
| Ultimate Pressure | 1.5 x 10-3 torr |
Agilent Varian SD 300 / 301 Rotary Vane Vacuum Pump - REBUILT
Series 91 through 451 pump models with the following main characteristics:
- A direct drive motor makes them very compact.
- An electrically insulated fold-away handle is used for easy carrying.
- An anti-suckback system ensures the tightness of the pump during accidental or voluntary shutdowns.
- A gas ballast enables the pumping of condensable vapours (except for CP series).
- The universal three-phase or singlephase motor can be disassembled independently of the rest of the pump, without needing to drain the oil case.
- On the oil case, a vertical sight gloss can be used to inspect the oil level easily when filling the tank and during the operation of the pump.
- A neutral gas purge is used to degas oil and dilute pumped gases on CP series models.
If the requested voltage is not in stock then we will purchase a new motor and split the cost with you. They run on various vacuum pump oils.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| SD Series | Unit | SD-91 | SD-201 | SD-301 | SD-451 | ||||
|---|---|---|---|---|---|---|---|---|---|
| Frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Number of stages | 2 | ||||||||
| Rotation speed | rpm | 1,500 | 1,800 | 1,500 | 1,800 | 1,500 | 1,800 | 1,500 | 1,800 |
| Nominal flow rate | m3/h (cfm) | 5.4 | 6.5 (3.8) | 9.7 | 11.6 (6.8) | 15 | 18 (10.6) | 20.7 | 24.8 (14.6) |
| Flow rate Pneurop method | 4.8 | 5.7 (3.4) | 8.5 | 10.2 (6) | 12.5 | 15 (8.8) | 16.5 | 20 (11.8) | |
| Partial ultimate pressure* w/ Varian GP type oil | Torr / mbar (Pa) | 7.5 x 10-5 / 1 x 10-4 (1 x 10-2) | |||||||
| Ultimate pressure w/ gas ballast closed | 1.5 x 10-3 / 2 x 10-3 (2 x 10-1) | ||||||||
| Ultimate pressure w/ gas ballast open | 1.5 x 10-2 / 2 x 10-2 (2) | ||||||||
| Oil capacity | l | 0.83 | 0.950 | 0.98 | |||||
| Weight (pump + motor)** | kg (lbs) | 25 (55) | 26 (57) | 27 (59.5) | 28 (62) | ||||
| Maximum water vapour pumping capacity (Ballast flowrate 1.1 m3/h) | mbar (Pa) | 35 (35 x 102) | 25 (25 x 102) | 20 (2 x 103) | 15 (15 x 102) | 12 (12 x 102) | 10 (1 x 103) | 7 (7 x 102) | |
| Water vapour pumping capacity | g/h | 120 | 110 | 125 | 100 | 110 | 100 | 90 | |
| Inlet and exhaust end fittings | ISO-KF | DN 25 | |||||||
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian SD, CD & CP Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian SD 301 Rotary Vane Vacuum Pump - REBUILT Varian SD-300 off-the-shelf motor P1144307 SD-301 1-phase universal motor, 110/220V P1145337 SD-301 3-phase universal motor
