Agilent TriScroll PTS620 Module S4800315 - REBUILT

Name: Agilent TriScroll PTS620 Module S4800315 - REBUILT
Brand: Agilent Varian
SKU: REBUILT_PTS620M

Be the first to review this product

$4,400

In stock

SKU

REBUILT_PTS620M

Request For Quote

Weight	70 lbs
Motor Power	1 hp
Pumping Speed	14.8 cfm
Ultimate Pressure	7 x 10^-3 Torr

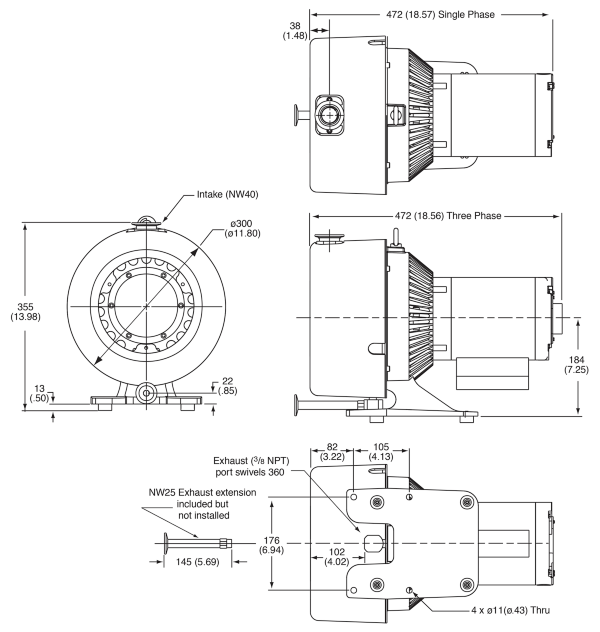

Dimensions

Description

Agilent Varian TriScroll PTS620 Dry Scroll Vacuum Pump Module - REBUILT

Rebuilt Agilent Varian TriScroll scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Peak pumping speed	50 Hz: 420 l/m, 25.2 m³/hr (14.8 cfm) 60 Hz: 500 l/m, 30 m³/hr (17.7 cfm)
Media	Clean air. No toxic, corrosive, explosive or particulate forming gases
Ultimate pressure (Torr)	7.0 x 10^-3 Torr (9.3 x 10^-3 mbar)
Maximum inlet pressure	1.0 atmosphere (0 psig)
Maximum outlet pressure	1.1 atmosphere (1.5 psig)
Inlet connection	NW40
Exhaust connection	Female 3/8" National Pipe Thread (NW25 adapter provided)
Gas ballast	Female 1/4" National Pipe Thread (40 Micron sintered filter provided)
Ambient operating temperature	5°C to 40°C (41°F to 104°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Motor rating	1.0 hp (0.76 kW)
Operating voltages	Single-phase: 50-60 Hz 100-115:200-230 VAC Three-phase: 50 Hz 200-230:380-415 VAC, 60 Hz 200-230:460 VAC
Motor thermal protection	Type U automatic
Operating speed	50 Hz: 1,425 rpm, 60 Hz: 1

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian Standard replacement pump module, for TriScroll 620 series dry vacuum pump

S4800315 	TriScroll PTS620 scroll pump module
