Agilent Varian Turbo-V 1000HT ISO-200 - REBUILT
Call for Price
In stock
SKU
RB_TurboV1000HT-9699074
| Weight | 80 lbs |
|---|---|
| Pumping Speed | 250 l/s |
| Ultimate Pressure | < 2 x 10-10 mbar |

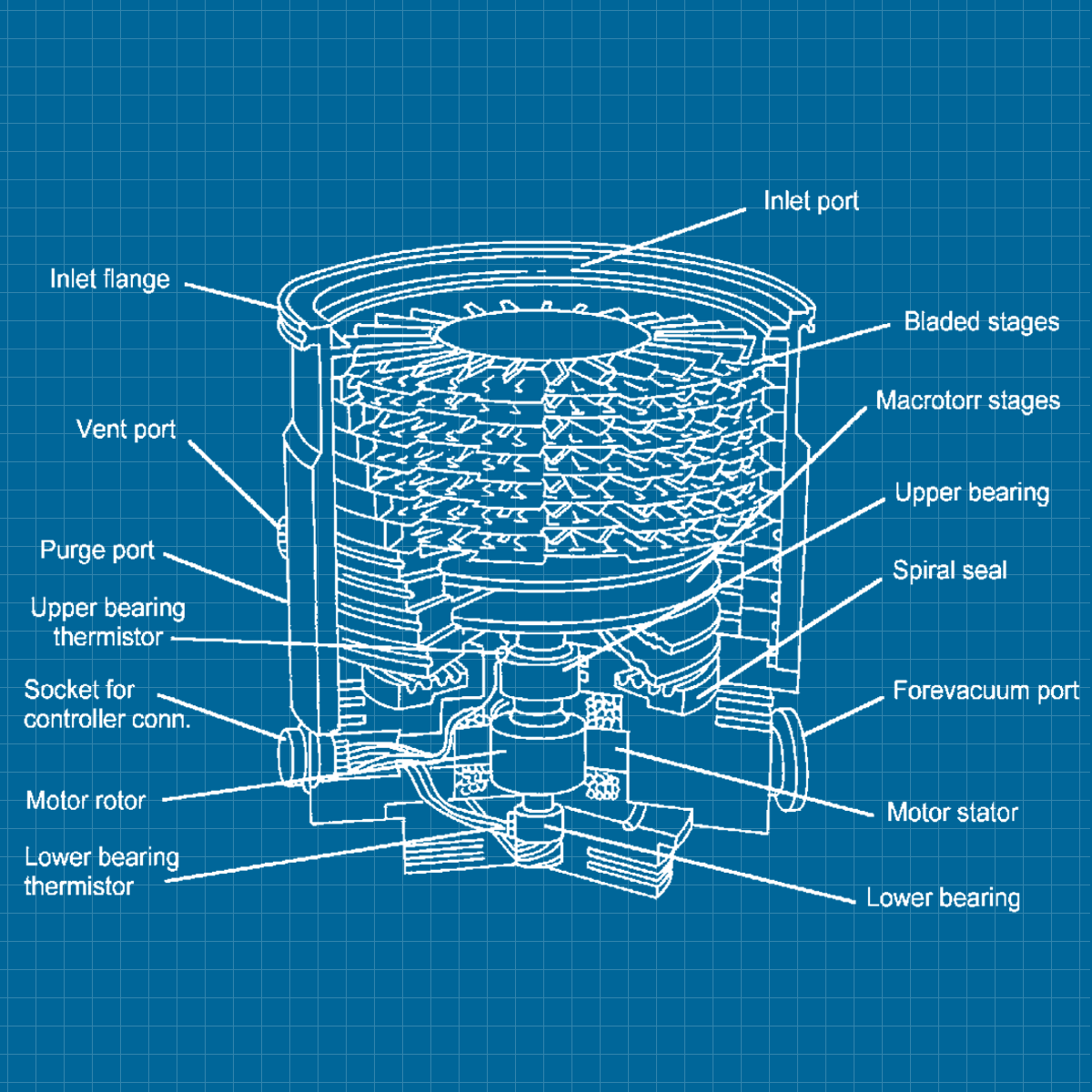

Agilent Varian Turbo-V 1000HT Macro Torr Turbomolecular Vacuum Pump - REBUILT
Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed (l/s) | N2: 250 l/s He: 220 l/s H2: 200 l/s |
| Compression ratio | N2: 2 x 108 He: 1 x 105 H2: 1 x 104 |
| Base pressure* | with recommended mechanical fore- pump: 2 x 10-10 mbar (1.5 x 10-10 Torr) with recommended diaphragm fore pump: 2 x 10-8 mbar (1.5 x 10-8 Torr) |
| Inlet flange | DN 100 CFF (6" O.D.) DN 100 ISO |
| Foreline flange | NW 16 KF |
| Rotational speed | 56,000 RPM |
| Start-up time | < 3 minutes |
| Recommended forepump | Two stage rotary pump SD-40 Diaphragm pump: MDP 30 |
| Operating position | any |
| Cooling requirements | Natural air convection Forced air or water optional |
| Operating ambient temperature | + 5°C to + 35°C |
| Coolant water | flow: 30 l/h (0.13 GPM) temperature: + 10°C to + 30°C pressure: 3 to 4 bar |
| Bakeout temperature | 120°C at inlet CF flange maximum 80°C with ISO flange |
| Vibration level (displacement) | < 0.01 μ m at inlet flange |
| Noise level | 45 dB (A) at 1 meter |
| Input | 58 Vac, three phase, 933 Hz |
| Lubricant | permanent lubrication |
| Storage temperature | -20°C to +70°C |
| Weight kg (lbs) | ISO: 3.4 (7.5); CFF: 5.2 (11.4) |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 1000HT Macro Torr Turbomolecular Vacuum Pump - REBUILT 9699074 / 969-9074 ISO-200 9699075 / 969-9075 10" O.D. CF 9699084 / 969-9084 TV 2000HT 12" O.D. CF
