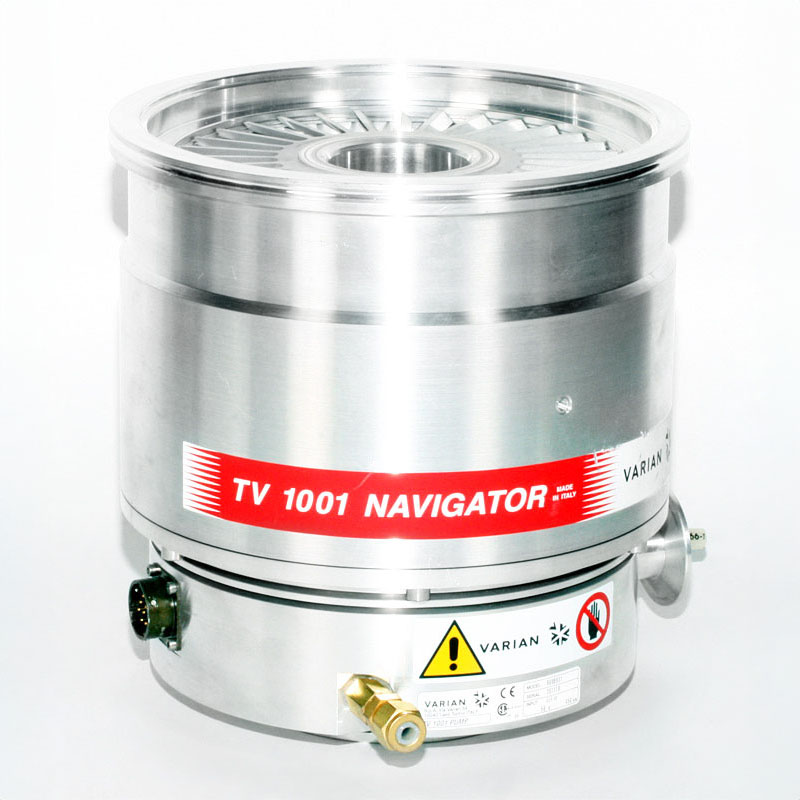

Agilent Turbo-V 1001 Navigator - NEW
| Weight | 54.2 lbs |
|---|---|
| Pumping Speed | 950 l/s |
| Ultimate Pressure | 1 x 10-10 mbar |
Agilent Turbo-V 1001 Navigator Turbomolecular Vacuum Pump - NEW
The Turbo-V 1001 Navigator pump provides pumping speeds from 790-1,050 liters/sec (gas dependent), and includes the latest technology offerings in the Navigator line. The pump is optimized for high-compression ratio for low base pressure, high-pressure differential for high-throughput and high foreline pressure. It is designed to be oil-free and contamination free, and to have very low failure rates with the ability to operate in any position without materials stress. Typical MTTF is in excess of 250k hours. Applications for the turbo pumps include high energy physics and research, nanotechnologies, mass spectrometry, industrial vacuum processing, and semiconductors as well as dedicated pumps for Scanning Electron Microscope (SEM) work.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed (l/s) | |
| N2 | 950 l/s |
| He | 870 l/s |
| H2 | 900 l/s |
| Compression ratio | |
| N2 | 1 x 109 |
| He | 1 x 107 |
| H2 | 1 x 106 |
| Base pressure* | <1 × 10–10 mbar (<1 × 10–10 Torr) |
| Inlet flange | DN 160 ISO-K DN 200 ISO-K DN 200 ISO-F DN 200 CF-F (10 in CFF) DN 250 ISO-K DN 250 ISO-F |
| Foreline flange | DN 40 ISO-KF |
| Rotational speed | 38,000 rpm |
| Start-up time | <4 minutes |
| Recommended forepump | Mechanical: Agilent DS 402 Dry scroll: Agilent TS300, IDP-15 |
| Operating position | Any |
| Cooling requirements | Forced air or water optional |
| Operating ambient temperature | + 5°C to + 35°C |
| Coolant water | flow: 30 l/h (0.13 GPM) temperature: + 10°C to + 30°C pressure: 3 to 4 bar |
| Bakeout temperature | 120°C at inlet CF flange maximum 80°C with ISO flange |
| Vibration level (displacement) | <0.01 μm at inlet flange |
| Noise level | 45 dB(A) at 1 meter |
| Input | 58 VAC, three phase, 933 Hz |
| Lubricant | permanent lubrication |
| Storage temperature | -20°C to +70°C |

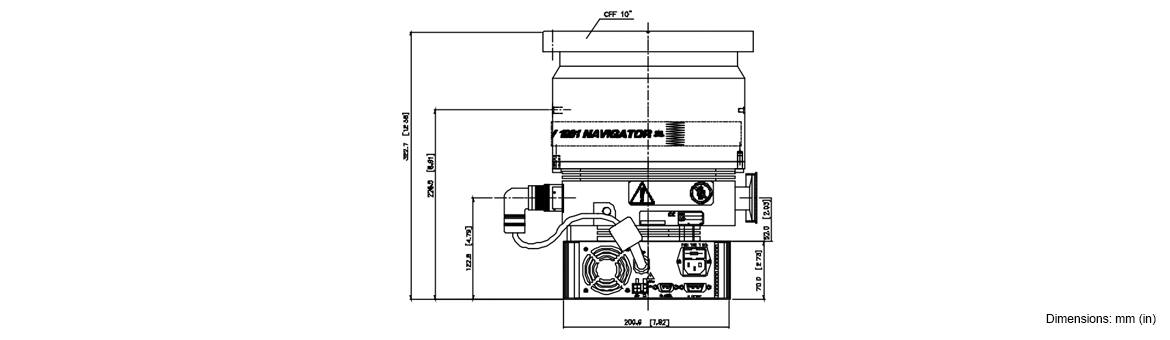

| Weight kg (lbs) | DN 160 ISO-K 19 (41.8) DN 200 ISO-K 19.4 (43.0) DN 200 CF-F (10 in CFF) 25.5 (54.2) DN 250 ISO-K 21.2 (46.6) DN 200 ISO-F, DN 250 ISO-F, DN 200 CF-F (10 in CFF) 25.5 (54.2) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent Turbo-V 1001 Navigator - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Turbo-V 1001 Navigator Turbomolecular Vacuum Pump - NEW 9698933 / 969-8933 ISO-160 9698931 / 969-8931 ISO-200 9698932 / 969-8932 ISO-250 9698934 / 969-8934 Turbo-V1001 Navigator Pump ISO-250-F bolted 9698946 / 969-8946 Turbo-V1001 Navigator Pump ISO-200-F bolted 9698947 / 969-8947 Turbo-V1001 Navigator Pump ISO 250F 9698838 T-V1001 NAVIG PUMP.SYS - ISO 200 9698839 T-V1001 NAVIG PUMP.SYS - CFF 10" 9698840 T-V1001 NAVIG PUMP.SYS - ISO 160 9698841 Turbo-V 1001 Navigator System - ISO 250 9698844 Turbo-V 1001 Navigator System - ISO 200F 9698845 Turbo-V 1001 Navigator System - ISO 250F
