Varian Turbo-V 1800 Controller
Call for Price
In stock
SKU
REBUILT_TurboV1800C

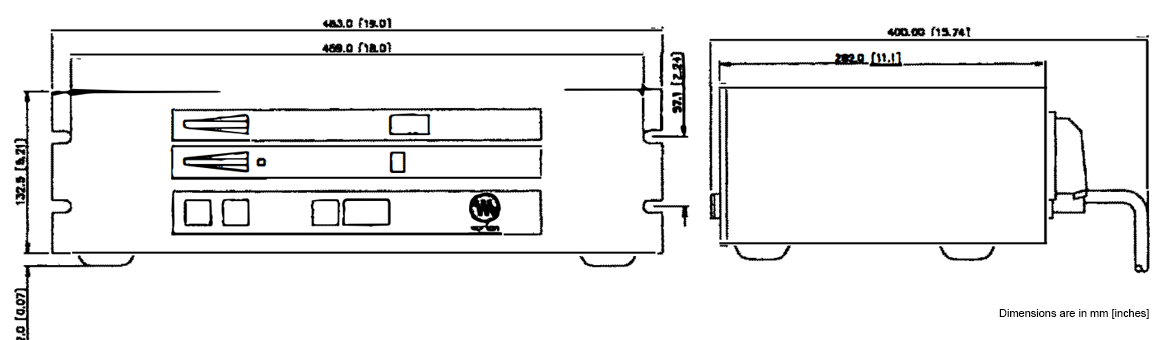

| Height | 132.50 mm |
|---|---|
| Width | 483.0 mm |
| Length | 282.0 mm |
| Weight | 55 lbs |
Varian Turbo-V 1800 Turbomolecular Vacuum Pump Controller
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Input voltage | 100, 120, 220, 240 VAC ±10%, 1-phase |
| Frequency | 50 to 60 Hz |
| Power | 1,300 VA maximum |
| Output voltage | 90 VAC nominal ±3% |
| Frequency | 450 Hz ±2% |
| Power | 900 W maximum 260 W nominal |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +70°C |
| Fuse (mains) | |
| F1 (pump) | T10A (slow blow) |
| F2 (heater) | T5A (slow blow) disregarding the mains |
| Optoisolator input | Minimum ON 1.6 mA Maximum 9 mA |
| Logic normal output | 24 VDC, 60 mA |
| Radio interference suppression | Conforms to FCC 47CFR part 15 sub part J class A. Conforms to EN 55011 class A group 1 Conforms to IEC 1000-4-2, 1000-4-3, 1000-4-4 |
| Auxiliary connectors | Power socket Logic socket |
| Interconnecting cables | Mains cable (3-wire, 3-meter long) Pump cable (5-wire, 5-meter long) |
| Weight | 25 kg (55 lbs) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 1800 Controller - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Varian Turbo-V 1800 Turbomolecular Vacuum Pump Controller 9699561 / 969-9561 120 V 9699461 / 969-9461 220 V
Related Products
-
Agilent Varian Turbo-V Controllers - SERVICECall for Price
-

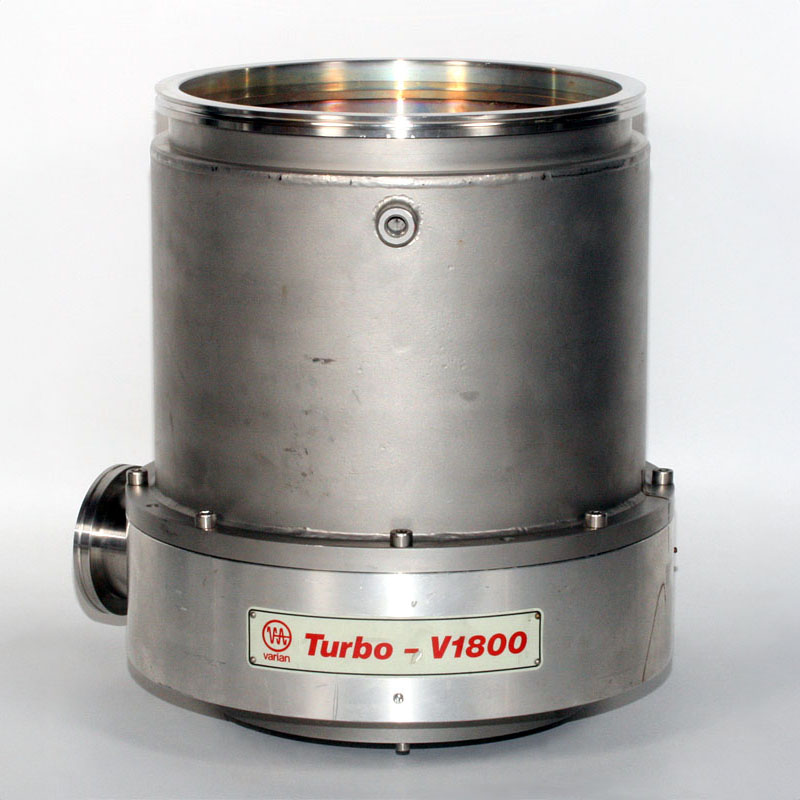

Varian Turbo-V 1800 - REBUILTStarting at $9,600
