Agilent Turbo-V 2300 TwisTorr - NEW
Call for Price
| Weight | 126 lbs |
|---|---|
| Pumping Speed | 2,050 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Agilent Turbo-V 2300 TwisTorr Turbomolecular Vacuum Pump - NEW
The Turbo-V 2300 TwisTorr pump offers the highest pumping speeds in its category for N2. Utilizing leading-edge Twistorr technology, the pump achieves higher compression ratios for light gases in a commercially available turbo molecular pump. The pump is designed for scientific and research applications and is operated with a dedicated full display rack controller. Due to high foreline pressure tolerance, the pump may be backed by a smaller, cost-effective dry scroll pump like the Agilent TriScroll 600.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed | |
| N2 | 2,050 l/s |
| He | 1,800 l/s |
| H2 | 1,500 l/s |
| Compression ratio | |
| N2 | > 8 x 108 |
| He | 8 x 105 |
| H2 | 4 x 104 |
| Base pressure with recommended forepump | 1010 mbar (7.5 x 10-11 Torr) |
| Max foreline pressure for N2 | 4 mbar |

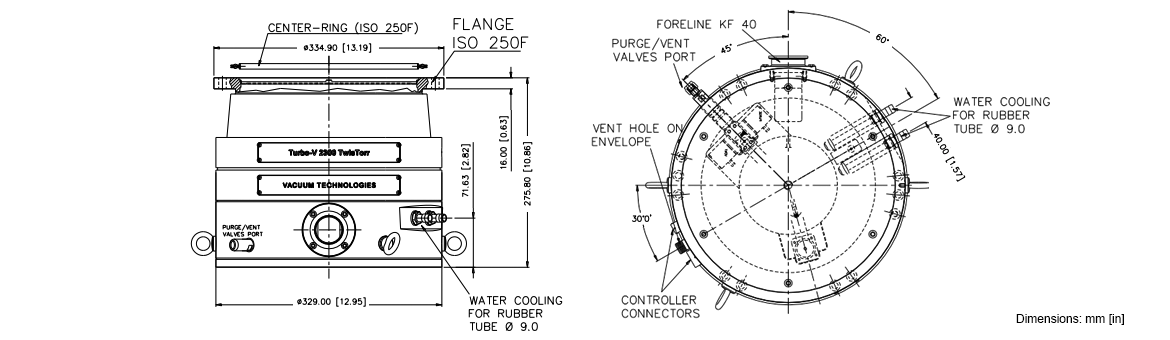

| Inlet flange | ISO 250F, CFF 12" O.D. |
| Foreline flange | KF 40 NW |
| Nominal rotational speed | 33,300 rpm |
| Start up time w/o gas load (recommended forepump) | < 6 minutes |
| Min. recommended forepump | TriScroll 600 |
| Operational position | Vertical, upside down |
| Operating ambient temperature | +5ºC to + 35ºC |
| Bakeout temperature | 120ºC |
| Max rotor temperature | 120ºC |
| Vibration | < 0.01 at inlet flange |
| Lubrication | Permanent |
| Cooling requirements | Water |
| Coolant water | |
| Recommended flow | 200 l/h |
| Temperature | +15ºC to +30ºC |
| Pressure | 3 to 5 bar |
| Noise level | < 60 dB(A) |
| Storage temperature | -20ºC to 70ºC |
| Environment protection | IP54 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent Turbo-V 2300 TwisTorr - NEW | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Turbo-V 2300 TwisTorr Turbomolecular Vacuum Pump - NEW 9696000 / 969-6000 ISO-250F rack 9696001 / 969-6001 12” CF OD rack
-

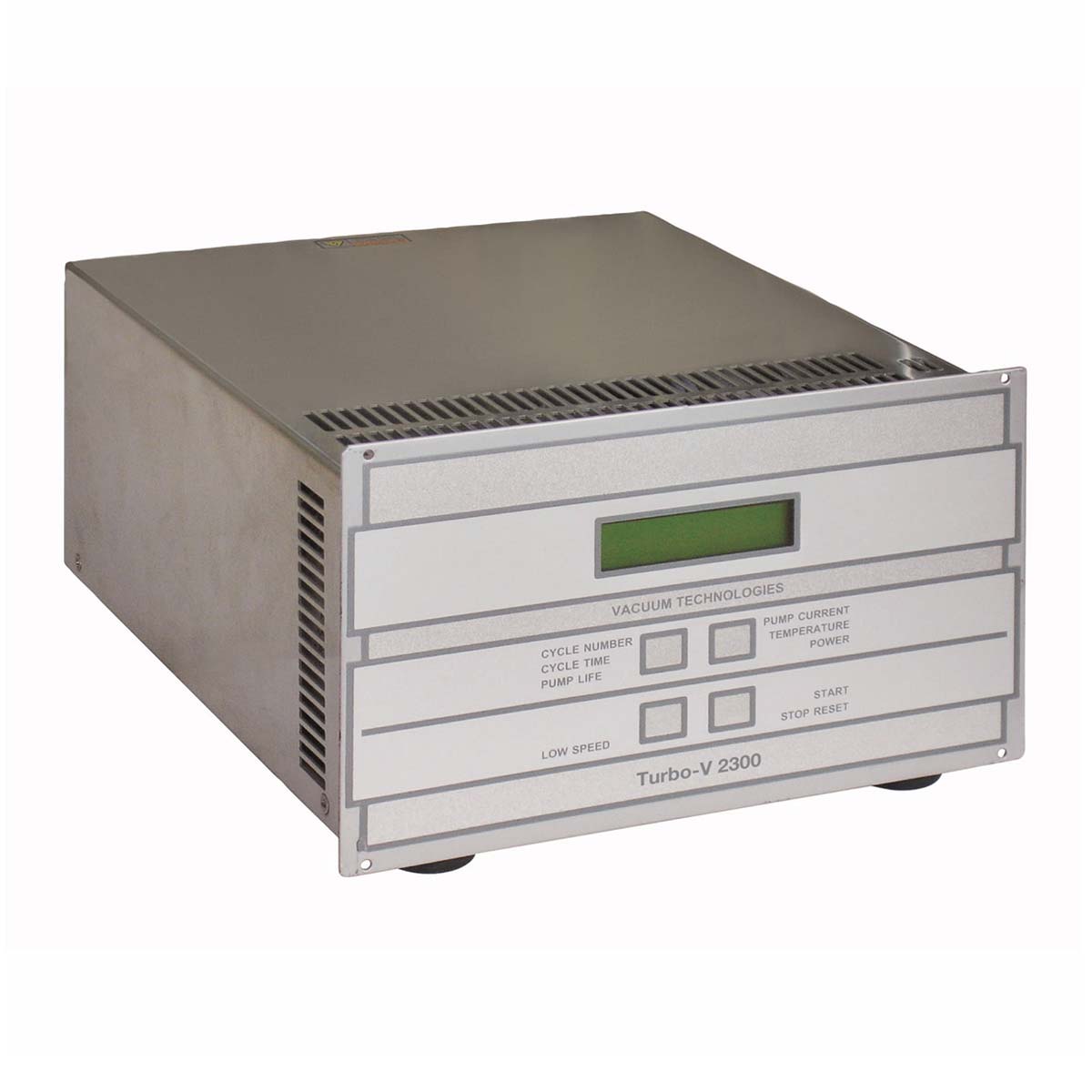

Agilent Turbo-V 2300 Rack Controller - NEWStarting at $10,152
